HANDLEBAR - FRONT FENDER

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

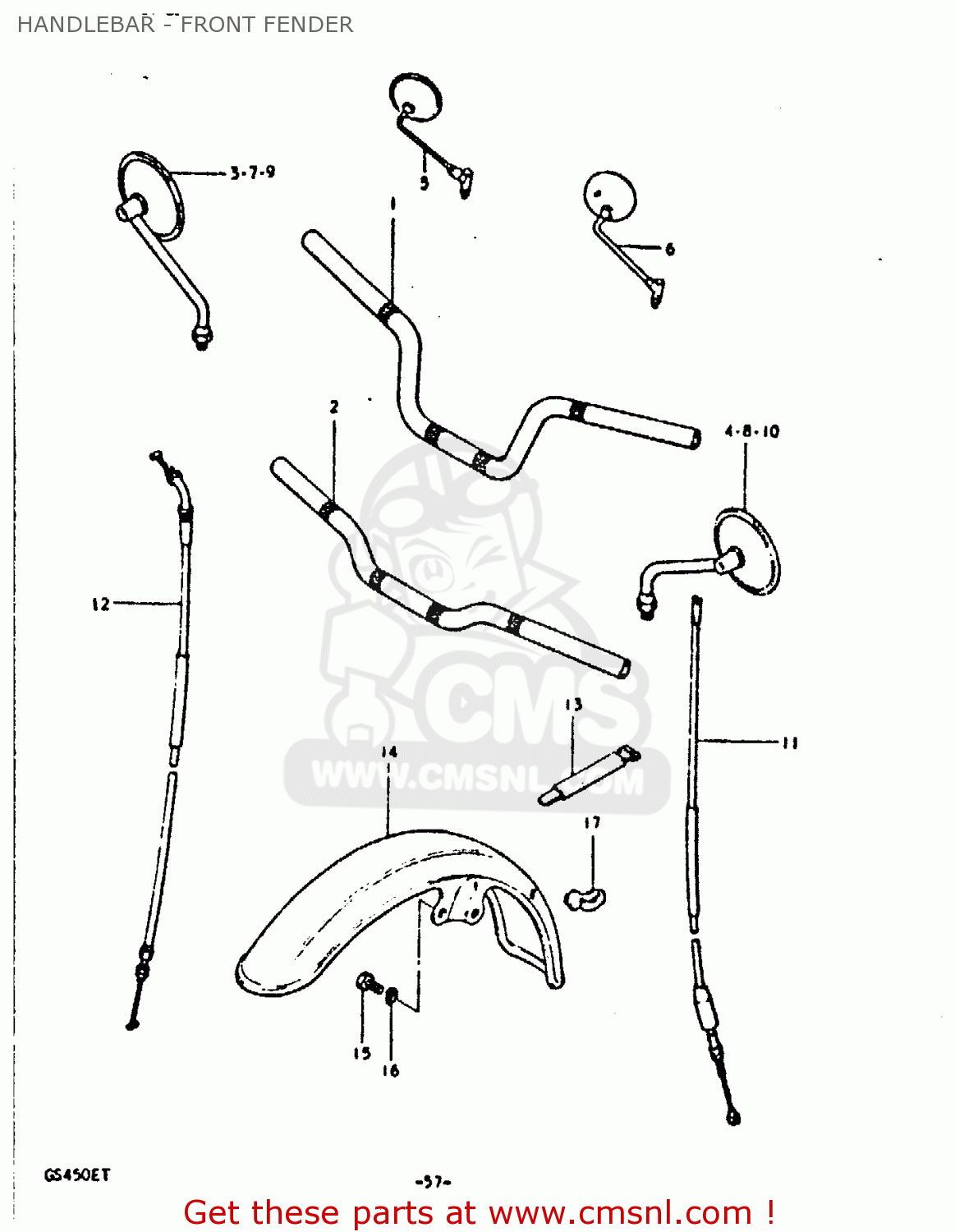

Handlebar - front fender diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

HANDLEBAR - FRONT FENDER GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)
HANDLEBAR - FRONT FENDER GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)
HANDLEBAR - FRONT FENDER GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
5611044120
ref: 1
HANDLEBAR
€ 52.00
2
5611044130
ref: 2
HANDLEBAR
€ 61.00
3
5650045100
ref: 3
MIRROR ASSEMBLY,RIGHT
€ 209.00
4
5660045100
ref: 4
MIRROR ASSEMBLY,LEFT
5660045100
€ 209.00
5
5650045650
ref: 5
E2
MIRROR ASSY,RR VIEW
5650045650
€ 35.00
6
NOTUSED
ref: 6
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7
NOTUSED
ref: 7
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
NOTUSED
ref: 8
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
NOTUSED
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
NOTUSED
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11-1
5820044100
ref: 11-1
CABLE ASSY,CLUTCH
5820044100
€ 41.50
11-2
5820044110
ref: 11-2
CABLE ASSEMBLY,CLUTCH
€ 41.50
12-1
5830044100
ref: 12-1
CABLE ASSEMBLY,THROTTLE
5830044100
€ 23.50
12-2
5830044110
ref: 12-2
CABLE ASSEMBLY,THROTTLE
5830044110
€ 25.00
13
0940718301
ref: 13
CLAMP
0940718301
€ 6.00
14
5311044110
ref: 14
FENDER,FR
5311044110
€ 188.50
15
0110708168
ref: 15
BOLT
€ 2.00
16
0832121088
ref: 16
LOCK WASHER
0832121088
€ 2.00
17
5862121203A
ref: 17
GUIDE,CABLE
€ 7.50
