WIRING HARNESS

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

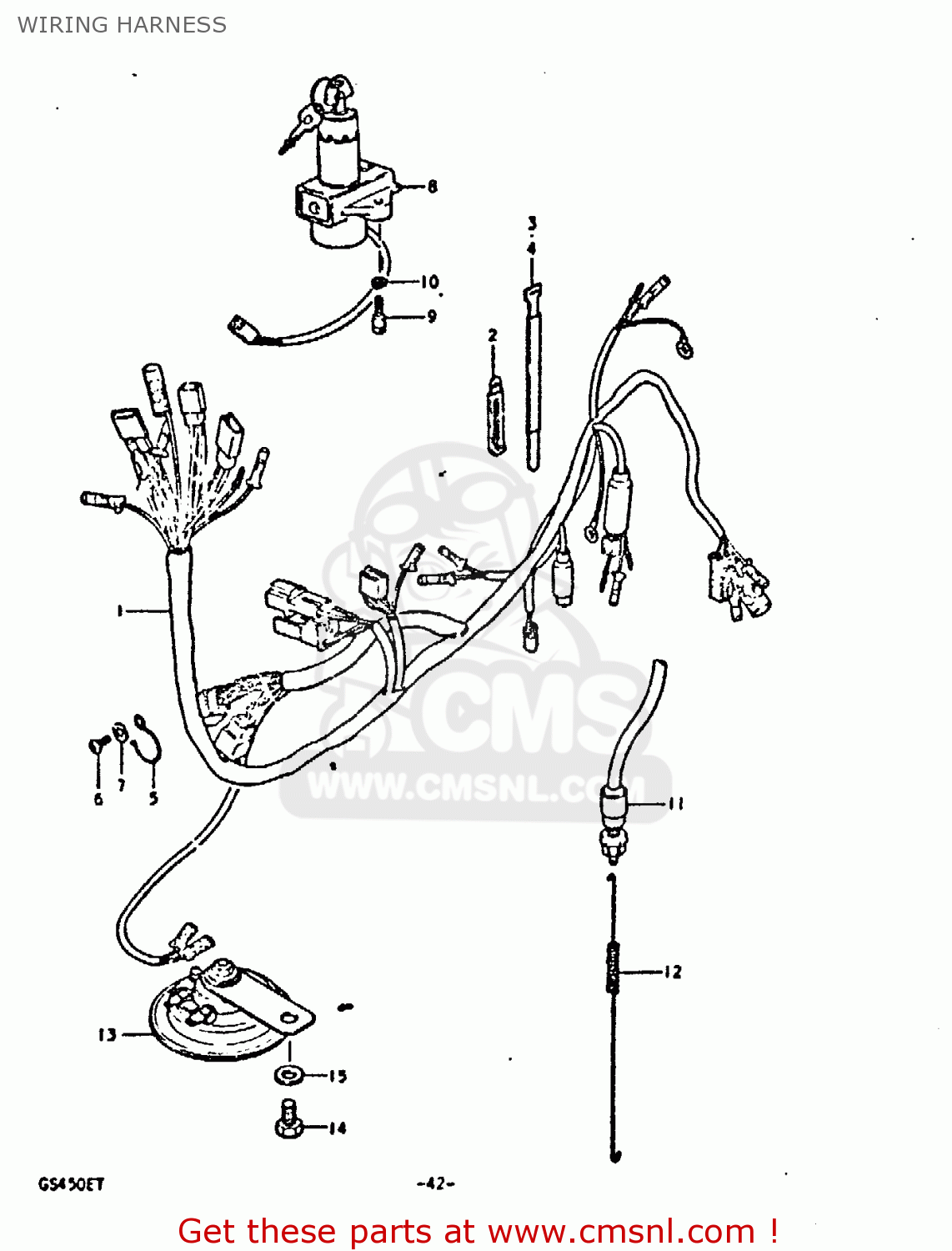

Wiring harness diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

WIRING HARNESS GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

WIRING HARNESS GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3661044120
ref: 1-1

WIRING HARNESS

€ 139.50

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

0940406414
ref: 2

CLAMP

€ 3.00

3

0940706401
ref: 3

CLAMP

€ 2.50

4

0940718301
ref: 4

CLAMP

€ 6.00

5

3661944000
ref: 5

GUIDE,WIRING HARNESS

€ 2.50

6

0211206128
ref: 6

SCREW 6X12

€ 2.00

7

0832211068
ref: 7

WASHER 6MM

€ 2.00

8-1

3710047010
ref: 8-1

LOCK ASSEMBLY,STEERING

€ 127.50

8-2

NOTUSED
ref: 8-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

3715247010
ref: 9

BOLT

€ 3.00

10

0832121068
ref: 10

LOCK WASHER

€ 2.50

11

3774004570
ref: 11

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

12

0944306005
ref: 12

SPRING

€ 6.00

13

3850247000
ref: 13

HORN ASSEMBLY,LOW PITCH

€ 77.00

14

0110708128
ref: 14

BOLT 8X12

€ 2.50

15

0832211088
ref: 15

WASHER

€ 2.00
