FRONT MASTER CYLINDER

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

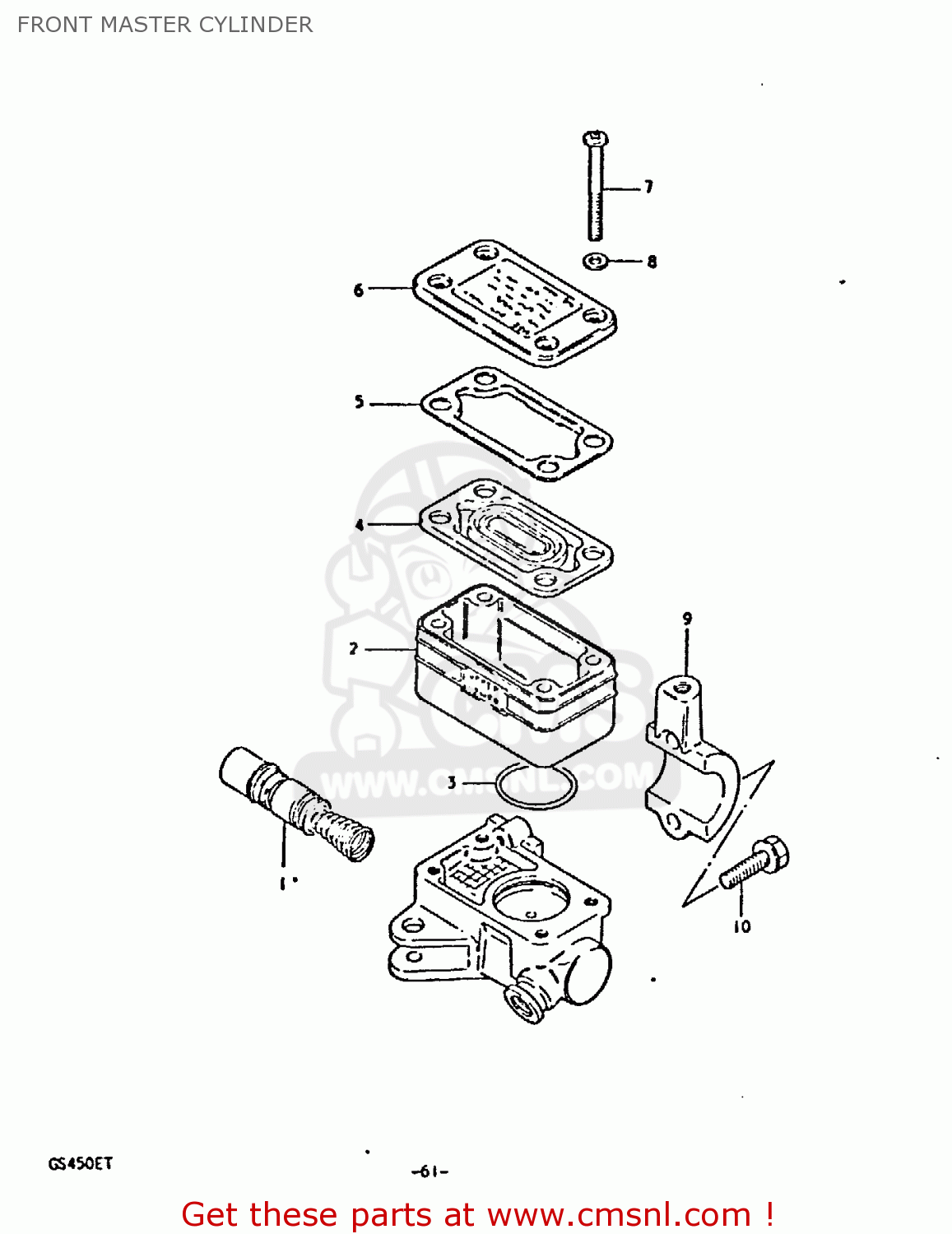

Front master cylinder diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

5960045200
ref: 0

CYLINDER ASSY, MASTER

€ 188.00

5960045840
ref: 1

CUP SET,MASTER CYLINDER

€ 41.50

5968745100
ref: 2

RESERVOIR

€ 20.50

5968645100
ref: 3

O RING

€ 9.50

5966745100
ref: 4

DIAPHRAGM

€ 11.50

5966845100
ref: 5

PLATE,DIAPHRAGM

€ 14.50

5966945100
ref: 6

CAP

€ 27.50

5969145100
ref: 7

SCREW

€ 3.00

5969245100
ref: 8

WASHER

€ 3.00

5967145100
ref: 9

HOLDER

€ 17.50

5969345100
ref: 10

BOLT,MASTER CYLINDER H

€ 2.00
