ELECTRICAL

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

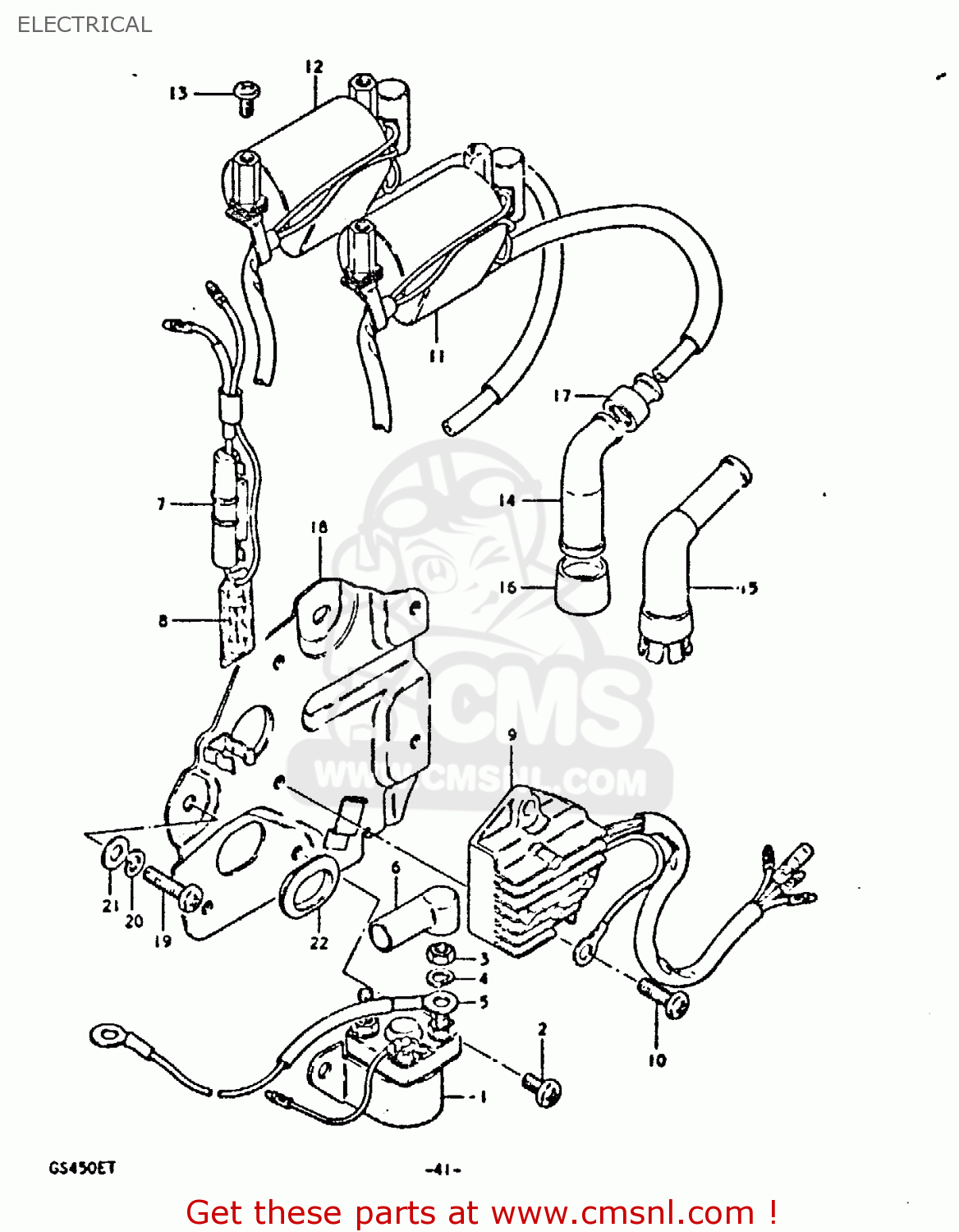

Electrical diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

ELECTRICAL GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)
ELECTRICAL GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)
ELECTRICAL GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
3180037020
€ 105.00
2
0211206088
ref: 2
SCREW
€ 2.00
3
0831022068
ref: 3
NUT 6MM
€ 2.50
4
0832121068
ref: 4
LOCK WASHER
0832121068
€ 2.50
5
3385044110
ref: 5
CORD,BATTERY MINUS
€ 8.50
6
3186135100
ref: 6
CAP,STARTER RELAY
3186135100
€ 4.50
7
3674015010
ref: 7
BOX ASSEMBLY,FUSE
3674015010
€ 11.00
8
0948115001
ref: 8
FUSE(15A)
0948115001
€ 3.00
9
3280044040
ref: 9
RECTIFIER ASSEMBLY
€ 248.00
10
0211206168
ref: 10
SCREW
0211206168
€ 2.50
11
3341044020
ref: 11
COIL ASSEMBLY,IGNITION
3341044020
€ 279.00
12
3342044020
ref: 12
COIL ASSEMBLY,IGNITION
3342044020
€ 279.00
13
0211205108
ref: 13
SCREW
0211205108
€ 2.00
14
NOTUSED
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15
3351044600
ref: 15
E2, E4, E17, E18, E2
CAP, SPARK PLUG (S)
3351044600
€ 40.00
16
NOTUSED
ref: 16
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
3354298000
ref: 17
SEAL,SPARK PLU
3354298000
€ 4.50
18
4741044100
ref: 18
HOLDER COMP,ELECTRONIC PARTS
€ 0.00
19
0211206208
ref: 19
SCREW
€ 2.00
20
0832121068
ref: 20
LOCK WASHER
0832121068
€ 2.50
21
0832221068
ref: 21
WASHER
0832221068
€ 2.00
22
0930819001
ref: 22
GROMMET
0930819001
€ 2.50
