MUFFLER

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

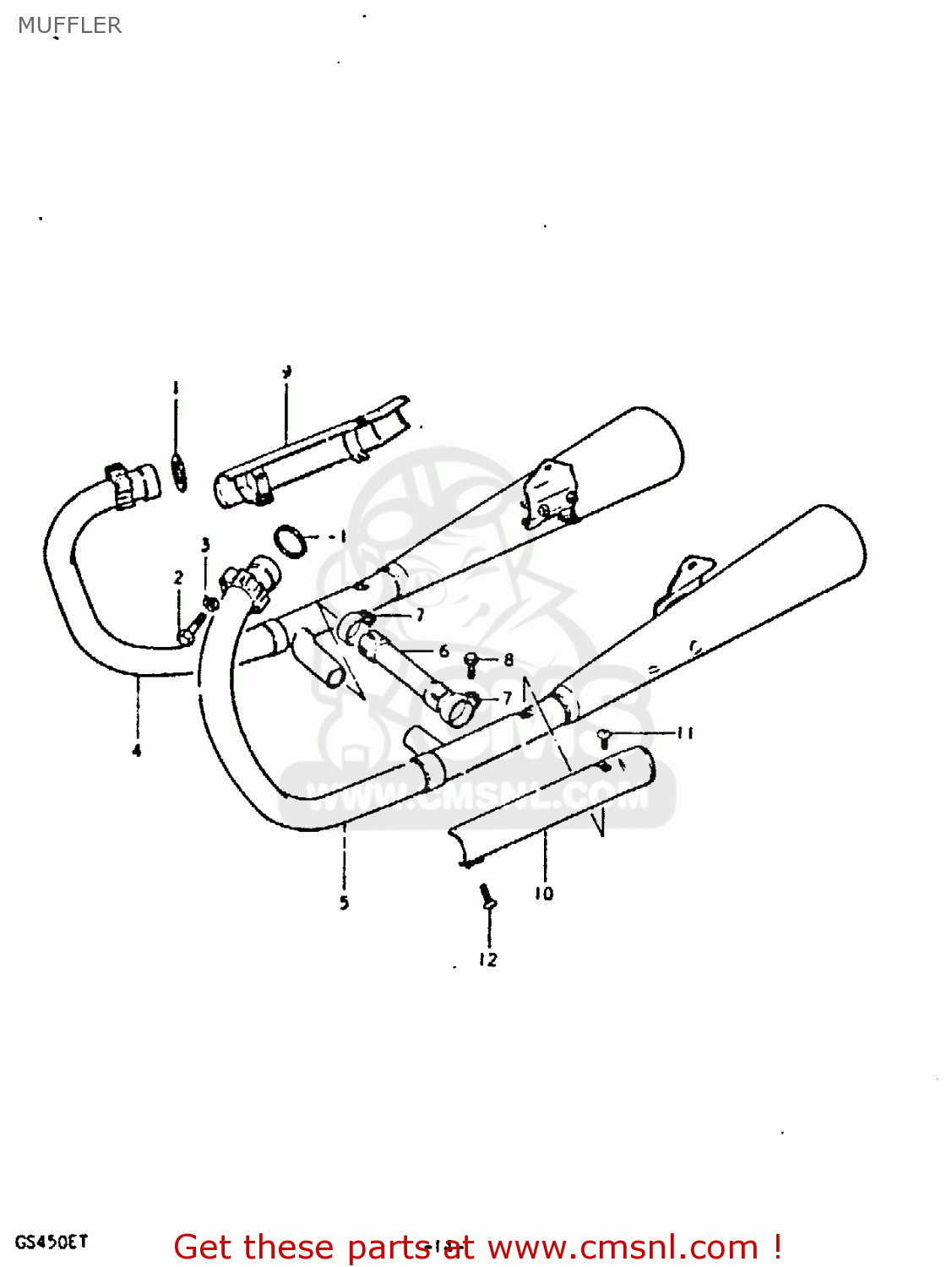

Muffler diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1418111010
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 8.00

0110708358
ref: 2

BOLT

€ 3.50

0832121088
ref: 3

LOCK WASHER

€ 2.00

1430144100
ref: 4

MUFFLER ASSEMBLY

€ 385.00

1430244100
ref: 5

MUFFLER ASSEMBLY

€ 296.00

1421144010
ref: 6

PIPE,EXHAUST COUPLER

€ 107.50

0940235601
ref: 7

CLAMP

€ 5.00

0151706258
ref: 8

BOLT

€ 2.50

1478044100
ref: 9

COVER,MUFFLER

€ 25.00

1479044100
ref: 10

COVER,MUFFLER

€ 33.50

0211205068
ref: 11

SCREW

€ 4.00

0211205168
ref: 12

SCREW

€ 2.50
