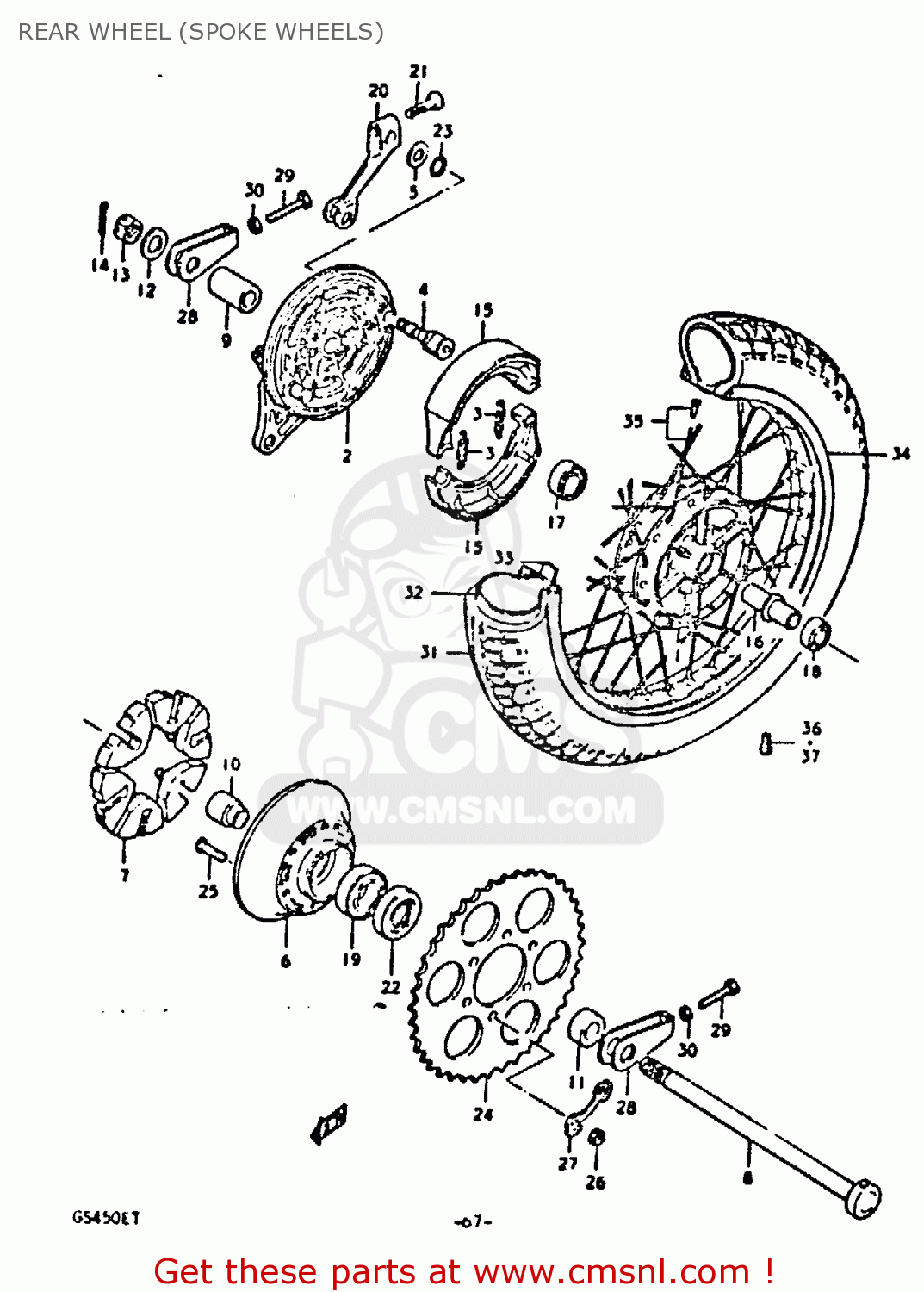

REAR WHEEL (SPOKE WHEELS)

ref

part #

description

quantity

1

6411011001
ref: 1

DRUM,REAR HUB

€ 156.50

2

6421011002
ref: 2

PANEL,REAR HUB

€ 83.50

3

5542030000
ref: 3

SPRING,BRAKE SHOE

€ 3.50

4

5444033002
ref: 4

CAM,FRONT BRAKE

€ 13.00

5

0916015001
ref: 5

WASHER (15X24X1.6)

€ 2.50

6

6461133000
ref: 6

DRUM,REAR SPROCKET MOUNT

€ 87.00

7

6465111001
ref: 7

CUSHION,REAR DRUM

€ 19.50

8

6471133000
ref: 8

AXLE,REAR

€ 33.50

9

0918017043
ref: 9

SPACER(17.5X28X44.8)

€ 7.00

10

6473333000
ref: 10

SPACER,REAR HUB BEARING

€ 20.00

11

0918017042
ref: 11

SPACER(17X30.5X22.3)

€ 8.50

12

0916017013
ref: 12

WASHER (17X30X3.2)

€ 2.00

13

0914116001
ref: 13

NUT

€ 6.50

14

0411140308
ref: 14

PIN,COTTER

€ 1.50

15

6441011002
ref: 15

SHOE SET,BRAKE (MCA)

€ 101.00

16

6473011000
ref: 16

SPACER

€ 21.00

17

0814363037
ref: 17

BEARING

€ 23.00

18

0814362037
ref: 18

BEARING

€ 18.50

19

0811362050
ref: 19

BEARING

€ 20.50

20

6445144000
ref: 20

LEVER,REAR BRAKE CAM

€ 111.00

21

0110706258
ref: 21

BOLT

€ 2.00

22

0928330001
ref: 22

OIL SEAL

€ 20.00

23

0928015001
ref: 23

O-RING,BOSS

€ 2.00

24

6451144000
ref: 24

SPROCKET,RR

€ 59.00

25

0911910002
ref: 25

BOLT

€ 3.50

26

0831011108
ref: 26

NUT

€ 2.50

27

0916910006
ref: 27

WASHER

€ 4.50

28

6141044200
ref: 28

ADJUSTER,CHAIN

€ 31.00

29

0910408006
ref: 29

BOLT

€ 3.00

30

0831012088
ref: 30

NUT

€ 2.00

31

6510044130
ref: 31

TIRE

€ 0.00

32

6520033030
ref: 32

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

33

6526133030
ref: 33

PROTECTOR,INNER TUBE

€ 5.50

34

6531111220
ref: 34

RIM,RR WHEEL

€ 114.50

35

5532015807
ref: 35

SPOKE SET,FRONT

€ 32.50

36

5541111000
ref: 36

BALANCER,WHEEL (B)

€ 4.50

37

5541211000
ref: 37

BALANCER,WHEEL (30G)

€ 8.00

all assemblies
