HEADLAMP (E17, E18, E21, E25, E26, E34, E39)

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

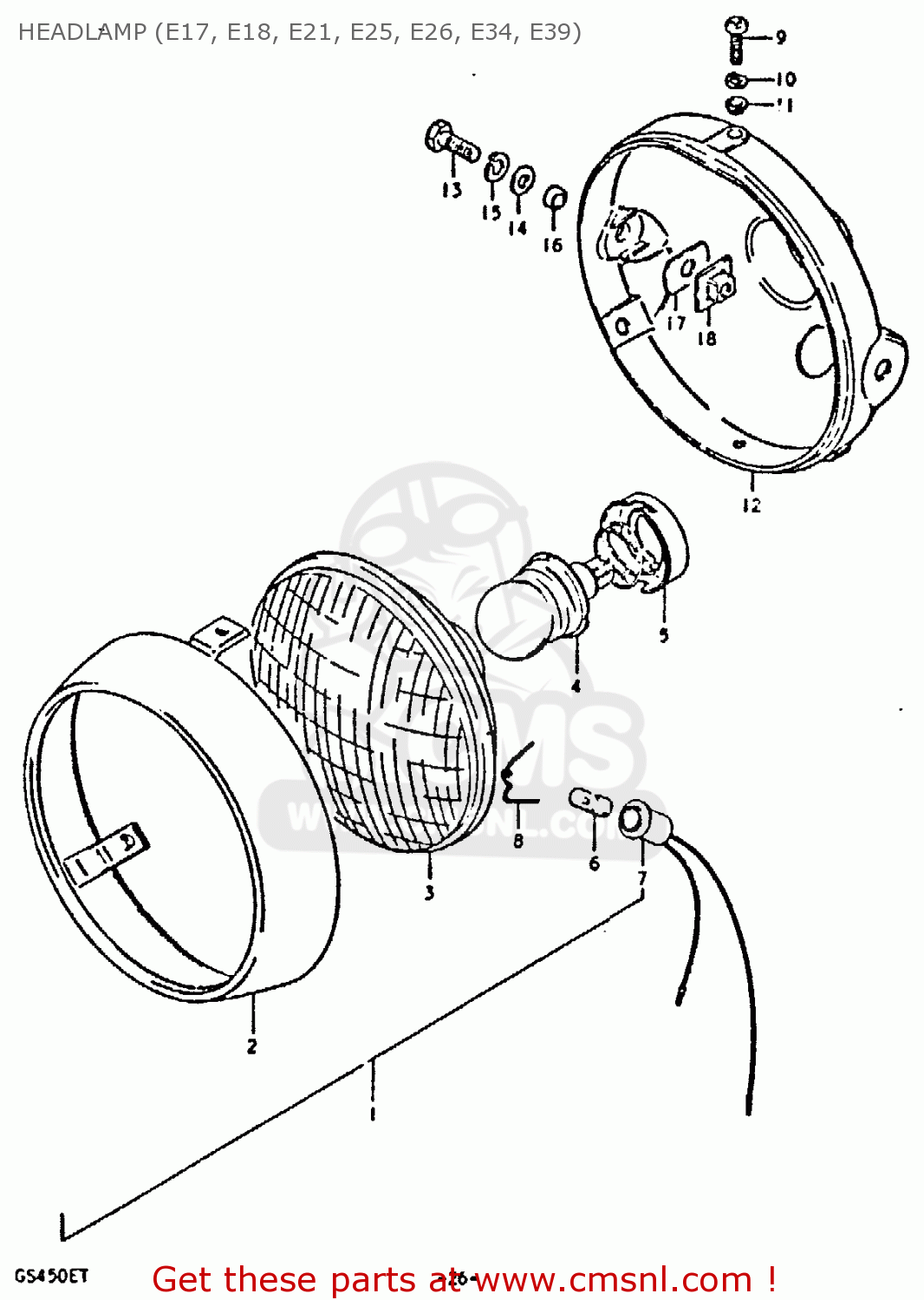

Headlamp (e17, e18, e21, e25, e26, e34, e39) diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

3510044620
ref: 1

HEADLAMP ASSY

€ 95.50

3511144620
ref: 2

RIM

€ 58.00

3512034641
ref: 3

UNIT

€ 111.50

0947112048
ref: 4
PHILIPS NO. 12620

BULB(12V45/40W)

€ 7.50

3513634670
ref: 5

SETTER,BULB

€ 4.00

0947112063
ref: 6
PHILIPS NO. 12929

BULB(12V4W)

€ 6.00

3611828660
ref: 7

SOCKET

€ 11.50

3512811030
ref: 8

SPRING,HEAD LA

€ 2.50

0912505022
ref: 9

SCREW

€ 3.50

0916205003
ref: 10

WASHER,LOCK

€ 2.00

0916906021
ref: 11

WASHER

€ 2.50

5181144000291
ref: 12

HOUSING,HEADLAMP(BLACK)

€ 63.00

0120408257
ref: 13

BOLT

€ 2.00

0832211088
ref: 14

WASHER

€ 2.00

0832121088
ref: 15

LOCK WASHER

€ 2.00

0918008030
ref: 16

SPACER (8.8X12X7)

€ 3.50

0932912002
ref: 17

CUSHION

€ 3.00

5186045000
ref: 18

PLATE,HEADLAMP HOUSING

€ 2.00

HEADLAMP (E17, E18, E21, E25, E26, E34, E39)
