HEADLAMP (E2)

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

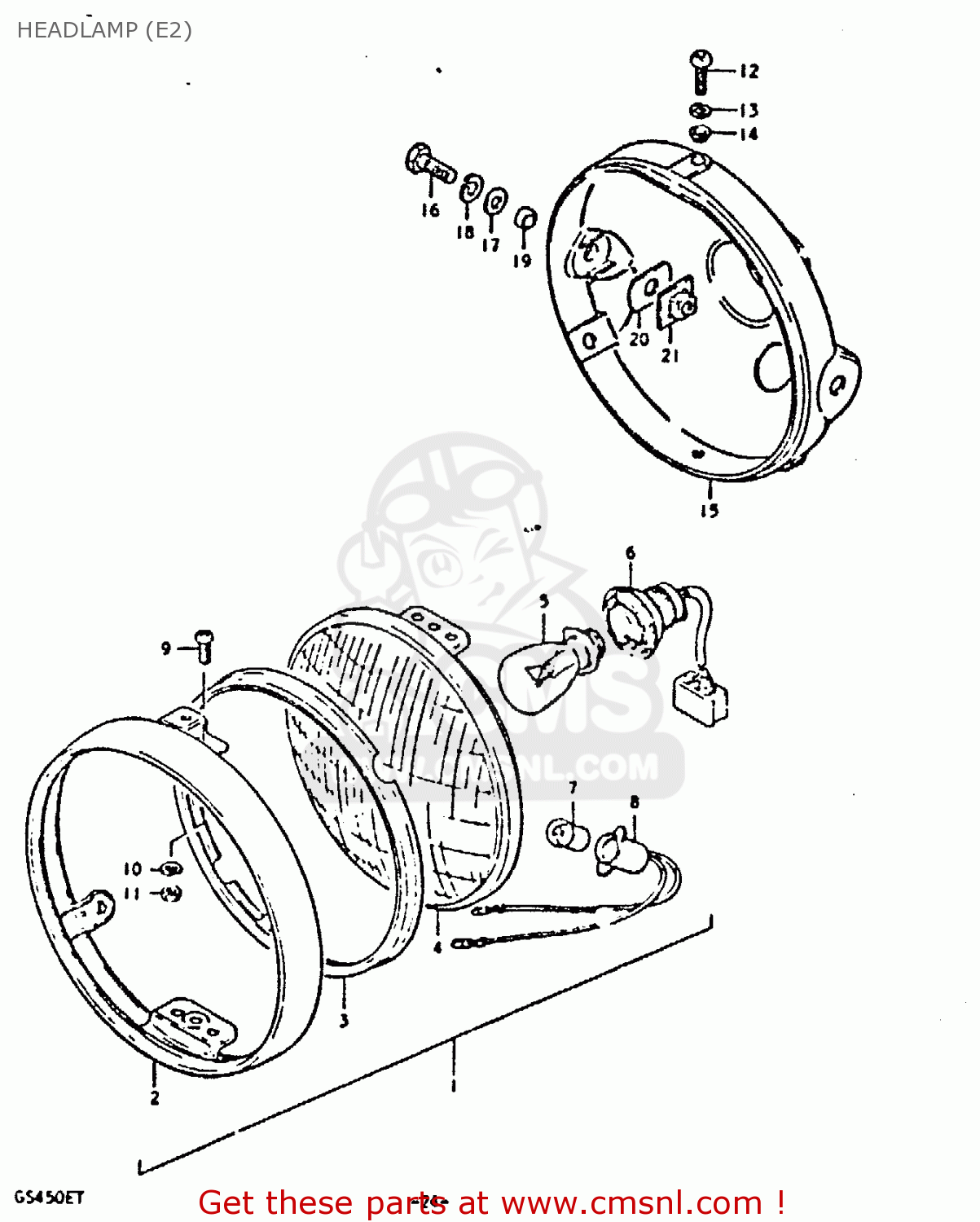

Headlamp (e2) diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

3510C44651
ref: 1

HEADLAMP ASSY

€ 0.00

3511144030
ref: 2

RIM

€ 46.50

3512733032
ref: 3

RETAINER,HEADLAMP

€ 17.00

3512115617
ref: 4

UNIT, HEAD LIGHT

€ 77.50

0947112033
ref: 5

BULB 12V35/35W

€ 6.00

3517115616
ref: 6

SOCKET

€ 14.50

0947112001
ref: 7

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

3611828660
ref: 8

SOCKET

€ 11.50

0211205108
ref: 9

SCREW

€ 2.00

0832121058
ref: 10

LOCK WASHER

€ 2.00

0831022058
ref: 11

NUT

€ 2.50

0912505022
ref: 12

SCREW

€ 3.50

0916205003
ref: 13

WASHER,LOCK

€ 2.00

0916906021
ref: 14

WASHER

€ 2.50

5181144000291
ref: 15

HOUSING,HEADLAMP(BLACK)

€ 63.00

0120408257
ref: 16

BOLT

€ 2.00

0832211088
ref: 17

WASHER

€ 2.00

0832121088
ref: 18

LOCK WASHER

€ 2.00

0918008030
ref: 19

SPACER (8.8X12X7)

€ 3.50

0932912002
ref: 20

CUSHION

€ 3.00

5186045000
ref: 21

PLATE,HEADLAMP HOUSING

€ 2.00
