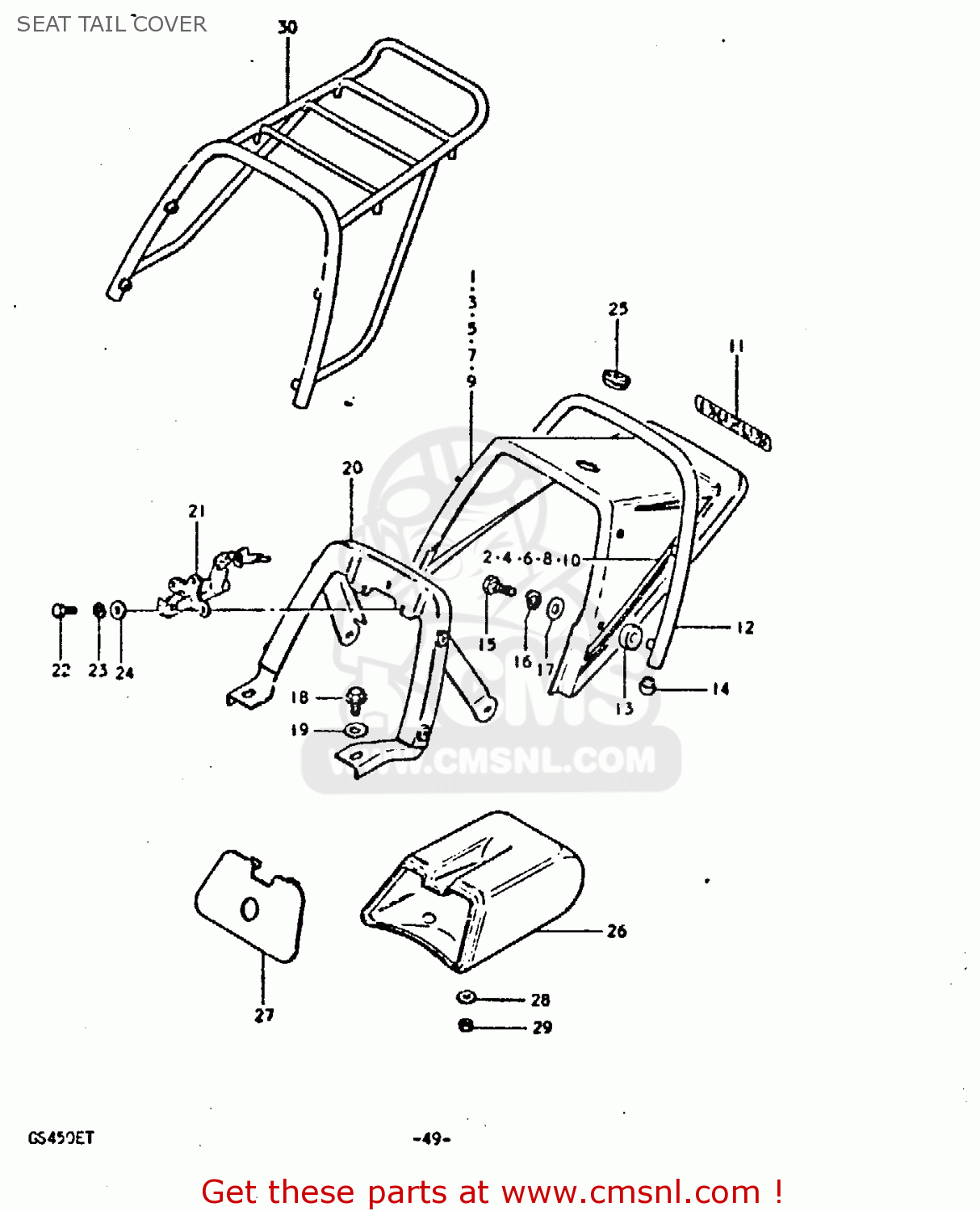

SEAT TAIL COVER

ref

part #

description

quantity

1

4551144101019
ref: 1

COVER,SEAT TAIL

€ 46.00

2

681604410065J
ref: 2

TAPE SET

€ 0.00

3

455114410100J
ref: 3

COVER,SEAT TAIL

€ 46.00

4

681604410070N
ref: 4

TAPE SET

€ 22.50

5

455114410105H
ref: 5

TAIL COVER, SEAT (BLUE)

€ 46.00

6

681604410070N
ref: 6

TAPE SET

€ 22.50

7

4551144101737
ref: 7

COVER,SEAT TAIL

€ 46.00

8

681604410070J
ref: 8

TAPE SET

€ 0.00

9

NOTUSED
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

NOTUSED
ref: 10

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

6816649200738
ref: 11

EMBLEM

€ 0.00

12

4621044100
ref: 12

HANDLE,PILLION RIDER

€ 39.50

13

4621249000
ref: 13

CUSHION

€ 15.00

14

4621349000
ref: 14

END,SHEET HANDLE

€ 5.50

15

0110708308
ref: 15

BOLT (8X30)

€ 2.50

16

0832121088
ref: 16

LOCK WASHER

€ 2.00

17

0832211088
ref: 17

WASHER

€ 2.00

18

0151708168
ref: 18

BOLT

€ 3.00

19

0916008007
ref: 19

WASHER (8.7X22X2)

€ 2.00

20

4553044102
ref: 20

BRACKET, SEAT TAIL COVER

€ 0.00

21

9570049820
ref: 21

LOCK SET

€ 81.50

22

0110706128
ref: 22

BOLT

€ 2.00

23

0832121068
ref: 23

LOCK WASHER

€ 2.50

24

0832221068
ref: 24

WASHER

€ 2.00

25

4552249200
ref: 25

GROMMET,SEAT LOCK HOLE

€ 5.50

26

9499044100
ref: 26

BOX, SEAT TAIL

€ 48.50

27

9499244100
ref: 27

LID,SEAT TAIL BOX

€ 19.00

28

0832221068
ref: 28

WASHER

€ 2.00

29

0831921068
ref: 29

NUT 6MM

€ 2.00

30

4631044100
ref: 30
OPT

CARRIER

€ 44.00
