AIR CLEANER

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

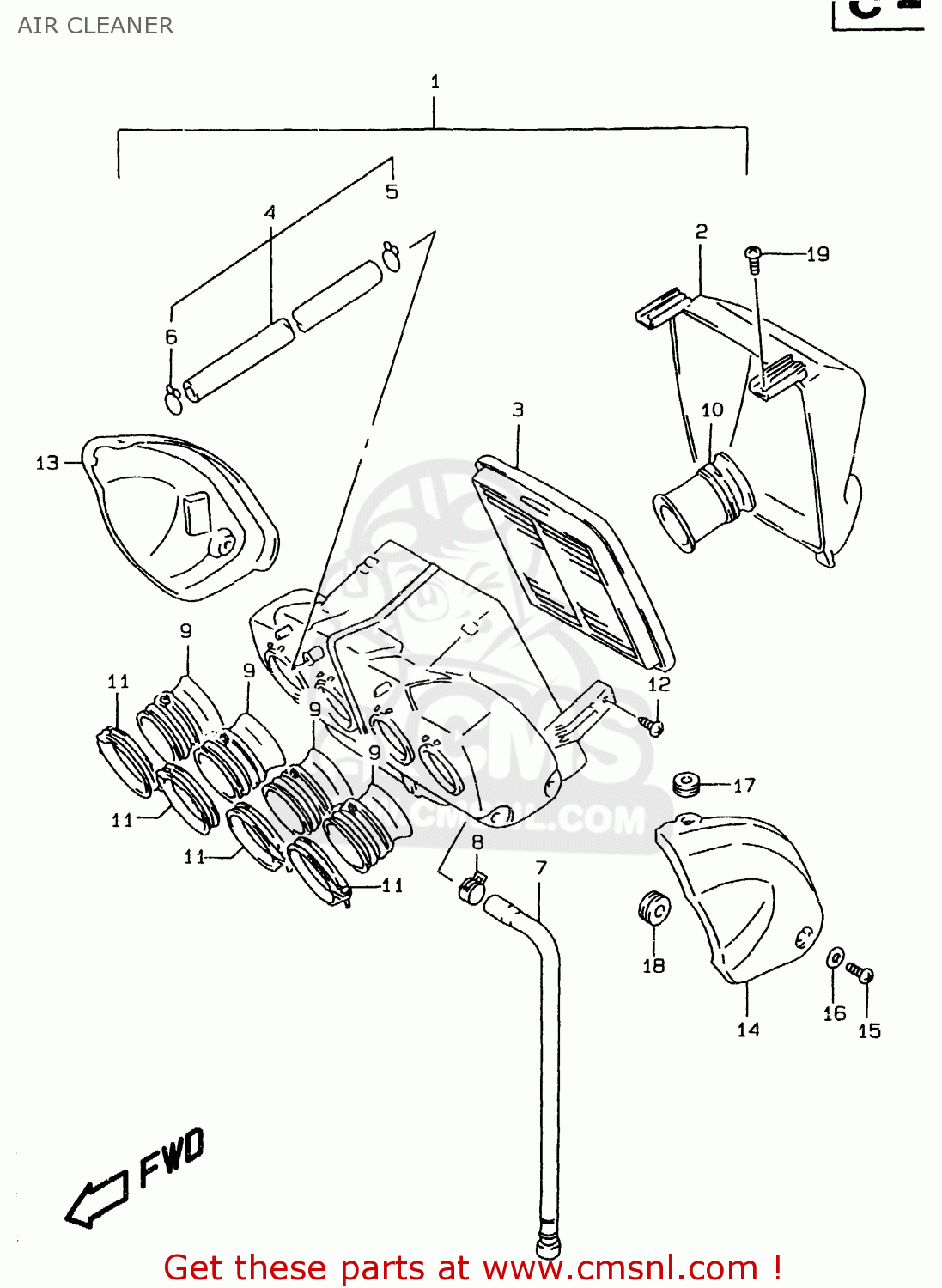

Air cleaner diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

AIR CLEANER GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

AIR CLEANER GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

1370027E00
ref: 1

CLEANER ASSY,AIR

€ 324.50

2

1374017E02
ref: 2

CAP,AIR CLEANER

€ 38.50

3

1378017E00
ref: 3

FILTER,AIR

€ 34.50

4

1385027E00
ref: 4

TUBE,BREATHER

€ 18.00

5

0940114301
ref: 5

CLIP

€ 2.00

6

0940116401
ref: 6

CLIP

€ 3.00

7

1387021458
ref: 7

TUBE,DRAIN

€ 23.50

8

0940113413
ref: 8
MODEL T/V

CLIP

€ 2.50

8

0940113417
ref: 8
MODEL W/X

CLIP

€ 2.50

9

1388101D00
ref: 9
MODEL T/V

TUBE,OUTLET

€ 20.00

9

1388101D01
ref: 9
MODEL W/X

TUBE,OUTLET

€ 20.00

10

1389131E10
ref: 10

TUBE,INLET

€ 22.00

11

0940268208
ref: 11

CLAMP

€ 6.00

12

0214205127
ref: 12

SCREW

€ 1.50

13

1391027E00
ref: 13

COVER COMP,AIR CLEANER,RIGHT

€ 69.00

14

1392027E00
ref: 14

COVER COMP,AIR CLEANER,LEFT

€ 72.50

15

0913905025
ref: 15

SCREW(5X14)

€ 2.00

16

0916905013
ref: 16

WASHER

€ 8.00

17

0932006504
ref: 17
<-09320-05006

CUSHION

€ 4.00

18

0932008018
ref: 18

CUSHION

€ 4.00

19

0214206123
ref: 19

SCREW 6X12

€ 2.00
