CLUTCH MASTER CYLINDER

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

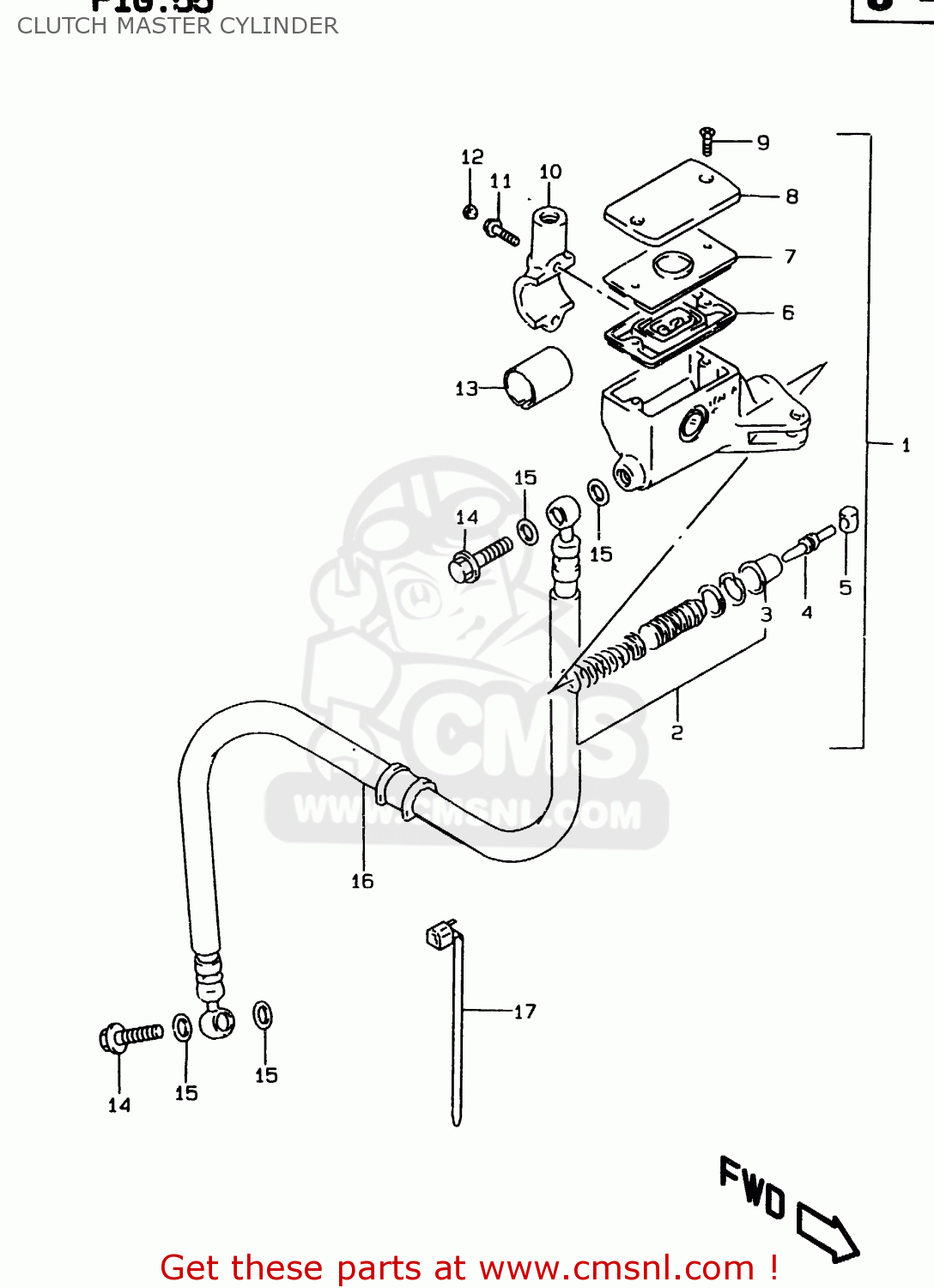

Clutch master cylinder diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

CLUTCH MASTER CYLINDER GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

CLUTCH MASTER CYLINDER GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

5980026D10
ref: 1

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 271.50

2

5980008810
ref: 2

PISTON & CUP SET

€ 36.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5987138A00
ref: 4

PUSH ROD

€ 6.50

5

5989208A00
ref: 5

BUSH

€ 5.50

6

5966749460
ref: 6

5966749460

7

5966841C00
ref: 7

PLATE,DIAPHRAGM

€ 8.00

8

5966941C00
ref: 8

CAP

€ 30.00

9

6968949300
ref: 9

SCREW

€ 1.50

10

5967105A00
ref: 10

HOLDER

€ 16.50

11

0713006203
ref: 11

BOLT,CRKCASE,R

€ 3.00

12

0925005009
ref: 12

CAP(OD:10)

€ 2.50

13

5989426D01
ref: 13

SPACER,CLUTCH MASTER CYLINDER

€ 8.50

14

0936010039
ref: 14
GSF1200T/ST

BOLT UNION

€ 6.50

14

0936010041
ref: 14
GSF1200V/SV/SAV/W/SW

BOLT UNION

€ 6.50

15

0916110009
ref: 15

WASHER(10X15X1.5)

€ 2.00

16

5991027E00
ref: 16

HOSE,CLUTCH

€ 137.50

17

0940714403
ref: 17

CLAMP(L:125)

€ 2.50
