ALTERNATOR

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

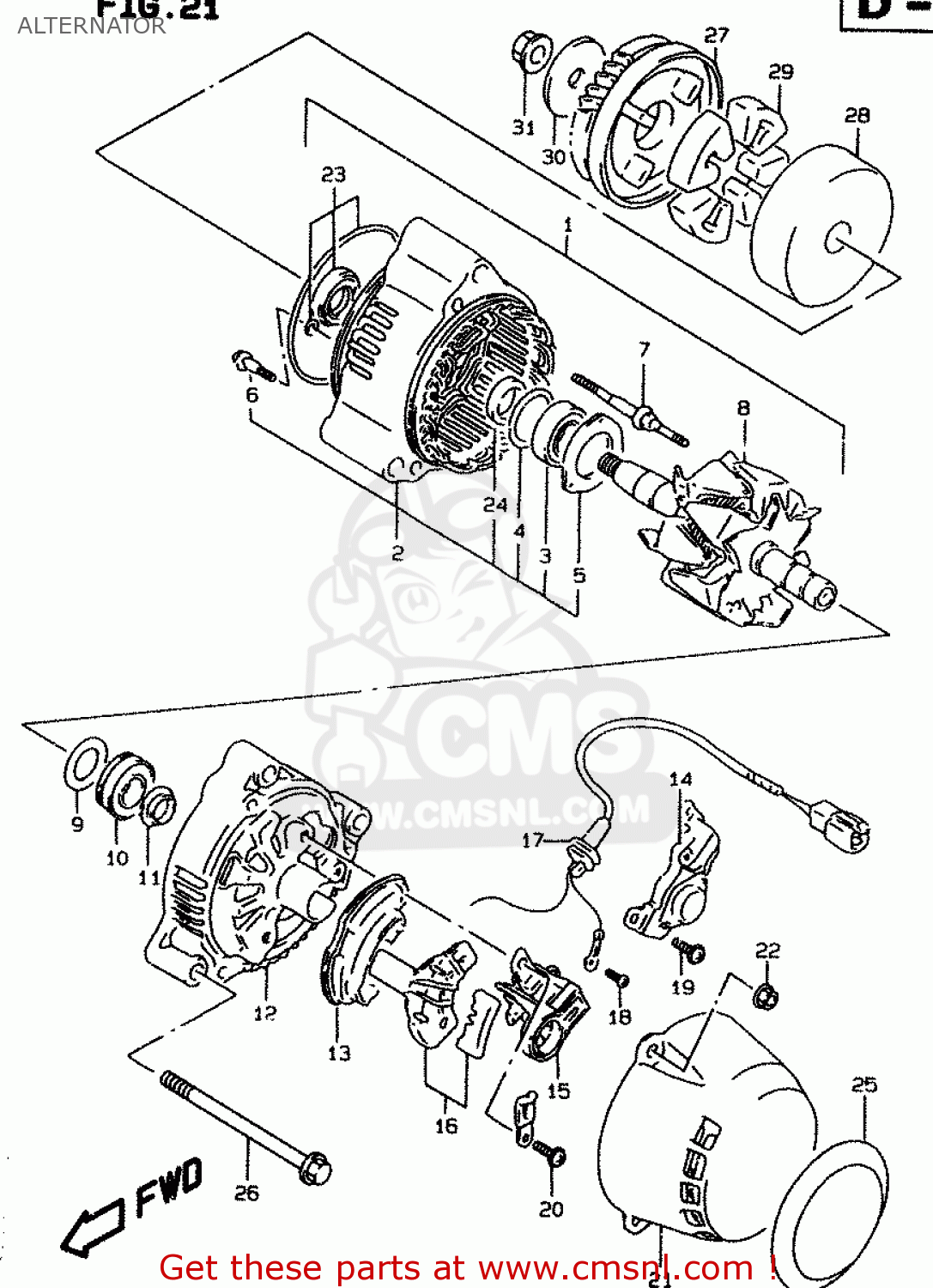

Alternator diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

ALTERNATOR GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

ALTERNATOR GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

3140017C04
ref: 1
MODEL T/V/W

ALTERNATOR ASSY

€ 1,063.50

1

3140019C10
ref: 1
MODEL X

ALTERNATOR ASSEMBLY

€ 1,063.50

2

3158048B00
ref: 2

FRAME,DRIVE END

€ 248.50

3

3161206B00
ref: 3

BEARING

€ 36.50

4

3161348B00
ref: 4

COVER,BEARING

€ 5.50

5

3158548B00
ref: 5

RETAINER

€ 9.00

6

3158648B00
ref: 6

SCREW,BEARING RETAINER

€ 3.50

7

3158785250
ref: 7

STUD BOLT

€ 9.00

8

3171048B04
ref: 8
MODEL T/V/W

ALTERNATOR ASSY

€ 277.50

8

3171019C10
ref: 8
MODEL X

ROTOR ASSY

€ 283.00

9

3161382610
ref: 9

COVER,BEARING

€ 3.50

10

3161248B00
ref: 10

BEARING

€ 42.50

11

3161327A10
ref: 11

COVER(2)

€ 5.50

12

3161148B00
ref: 12

FRAME,END

€ 83.00

13

3162127A00
ref: 13

HOLDER,RECTIFIER

€ 225.50

14

3250027A00
ref: 14

REGULATOR

€ 321.00

15

3165648B00
ref: 15

HOLDER,BRUSH

€ 55.50

16

3168717E00
ref: 16

COVER,RECTIFIER

€ 4.50

17

3148048B00
ref: 17

WIRE,LEAD

€ 22.00

18

0211204063
ref: 18

SCREW 4X6

€ 2.00

19

3168827A00
ref: 19

SCREW

€ 2.50

20

3168827A00
ref: 20

SCREW

€ 2.50

21

3161448B00
ref: 21

COVER

€ 67.50

22

0831610053
ref: 22

NUT

€ 2.50

23

3178027X50
ref: 23

SERVICE KIT(A)

€ 47.50

24

3177606B00
ref: 24

SPACER

€ 22.00

25

3161527E00
ref: 25

PLATE,ALTERNATOR ABSORBER

€ 10.00

26

0155008903
ref: 26

BOLT

€ 3.50

27

2273027A04
ref: 27
MODEL T/V, <-22730-2

GEAR,GENERATOR DRIVEN

€ 183.50

27

2273027A05
ref: 27
MODEL W/X

GEAR,GENERATOR DRIVEN

€ 183.50

28

2273327A05
ref: 28
<-22733-27A04

HOUSING,GENERATOR GEAR DAMPER

€ 95.00

29

2123106B00
ref: 29

DAMPER,GENERATOR DRIVEN

€ 5.50

30

0821110283
ref: 30

WASHER

€ 3.00

31

0831620103
ref: 31

NUT

€ 3.50
