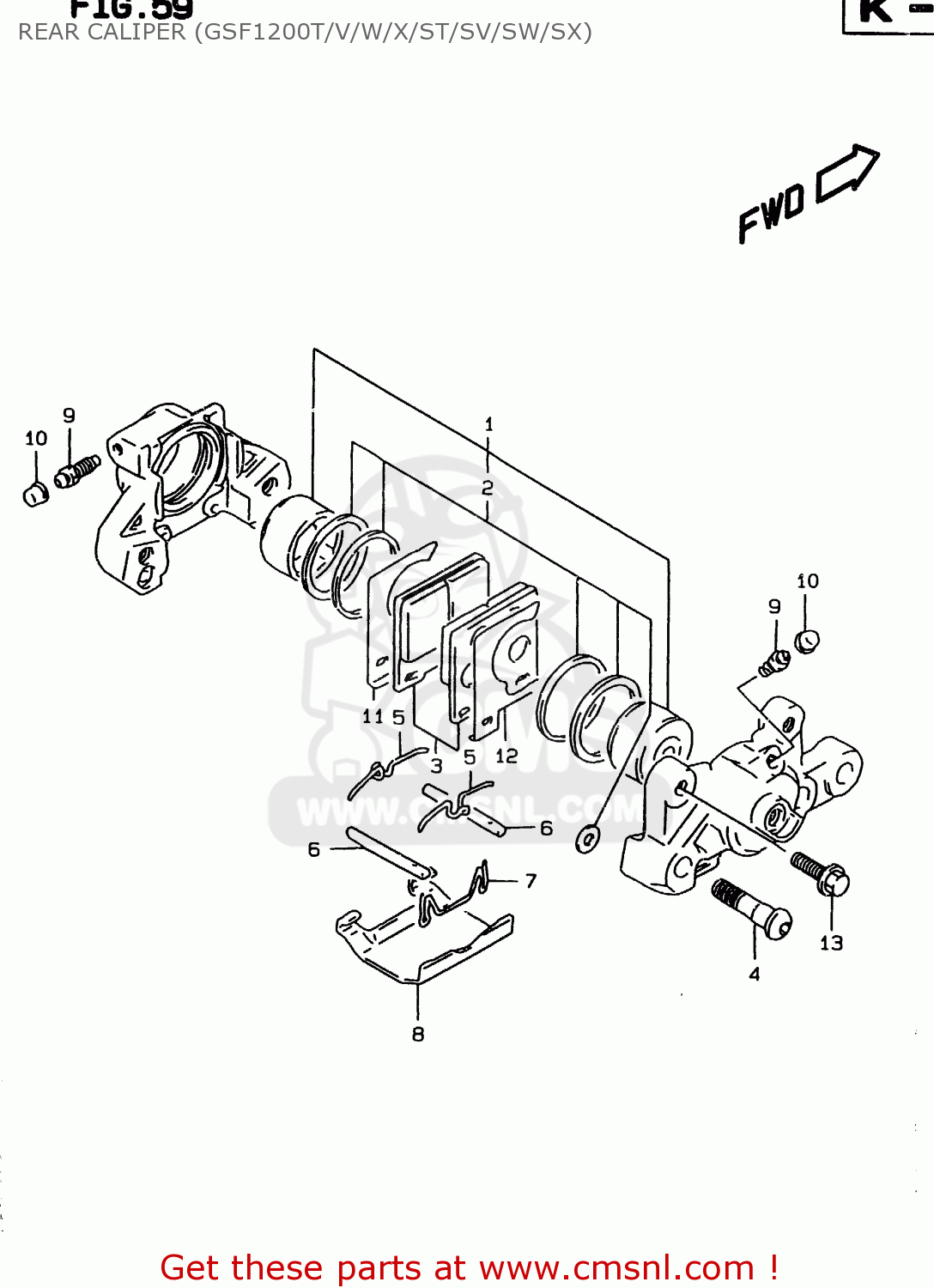

REAR CALIPER (GSF1200T/V/W/X/ST/SV/SW/SX)

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

Rear caliper (gsf1200t/v/w/x/st/sv/sw/sx) diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

6910005C61
ref: 0
GSF1200T/ST

CALIPER ASSEMBLY,REAR

€ 770.50

6910005C62
ref: 0
GSF1200V/SV/W/SW/X/S

CALIPER ASSEMBLY,REAR

€ 770.50

6910005850
ref: 1

PISTON SET

€ 122.50

6910032820
ref: 2

SEAL SET,PISTON

€ 26.00

6910005860
ref: 3

PAD SET (NAS)

€ 56.00

5914505C50
ref: 4

BOLT,HOUSING

€ 9.50

5914316700
ref: 5

SPRING

€ 7.50

6914146E01
ref: 6

PIN,PAD

€ 9.00

6914246E01
ref: 7

CLIP,PAD PIN

€ 14.00

5915116701
ref: 8

COVER

€ 13.50

5912118410
ref: 9

BLEEDER

€ 8.00

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

5937120C00
ref: 11

SHIM,INNER

€ 7.50

5938120C00
ref: 12

SHIM,OUTER

€ 7.50

0155008303
ref: 13

BOLT

€ 3.00
