REAR MASTER CYLINDER (GSF1200SAV/SAW/SAX)

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

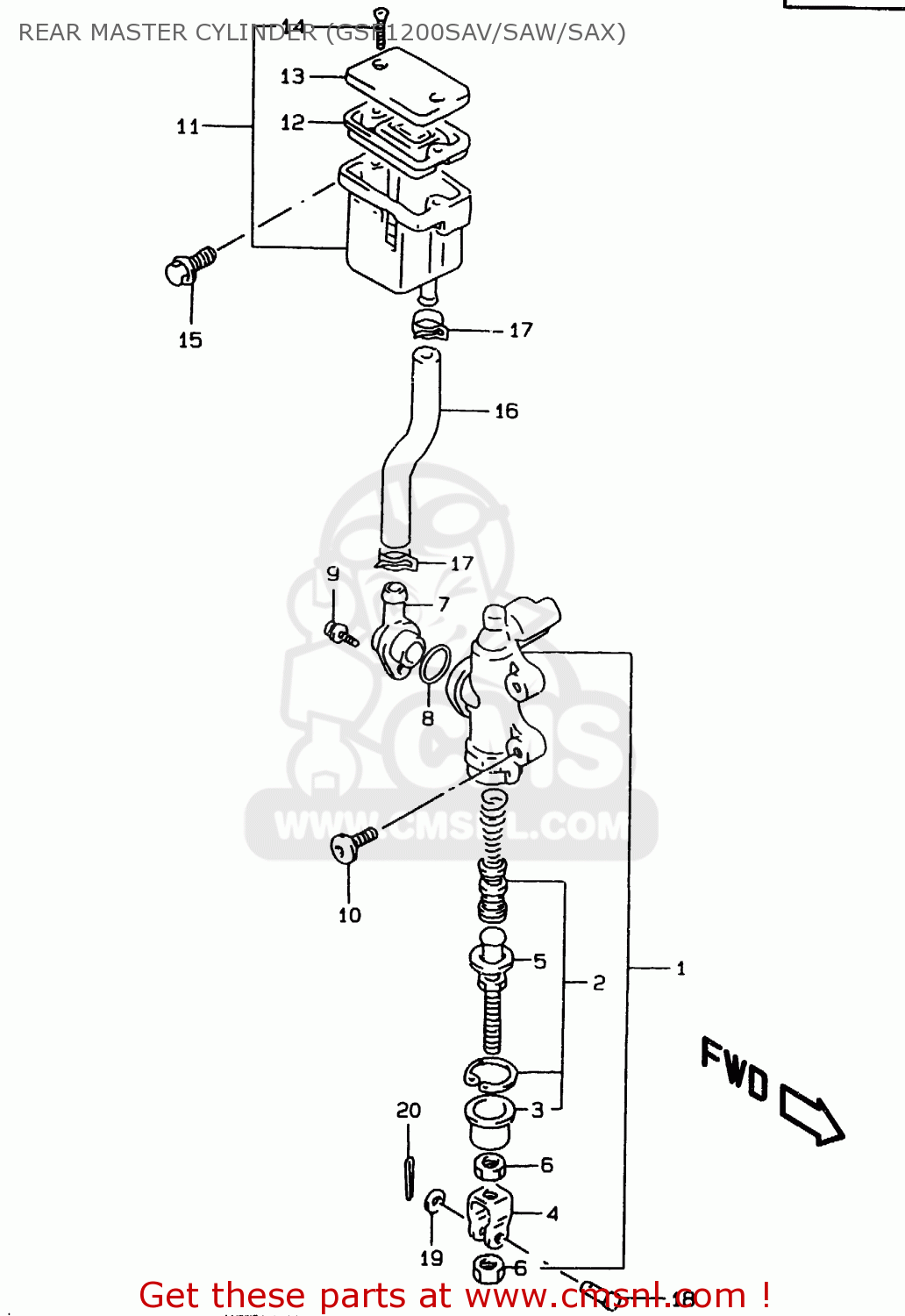

Rear master cylinder (gsf1200sav/saw/sax) diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

REAR MASTER CYLINDER (GSF1200SAV/SAW/SAX) GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

REAR MASTER CYLINDER (GSF1200SAV/SAW/SAX) GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

6960017C10
ref: 1

CYLINDER ASSY,RR MASTER

€ 194.50

2

6960034820
ref: 2

PISTON/CUP SET

€ 37.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969227A30
ref: 4

YOKE

€ 12.50

5

6967048B00
ref: 5

ROD,PUSH

€ 20.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967205A00
ref: 7

CONNECTOR

€ 4.50

8

6968634200
ref: 8

O RING

€ 3.50

9

0211274123
ref: 9

SCREW

€ 2.50

10

0910608118
ref: 10

BOLT 8X20

€ 4.00

11

6974038B21
ref: 11

TANK ASSY,RESERVOIR

€ 85.50

12

5966704700
ref: 12

DIAPHRAGM

€ 8.00

13

5966905D00
ref: 13

CAP

€ 13.50

14

6968904A00
ref: 14

SCREW

€ 2.00

15

0155006123
ref: 15

BOLT

€ 2.50

16

6973126E00
ref: 16

HOSE,RESERVOIR TANK

€ 21.00

17

0940113417
ref: 17

CLIP

€ 2.50

18

0920006037
ref: 18

PIN

€ 5.00

19

0832201063
ref: 19

WASHER

€ 2.00

20

0411120158
ref: 20

PIN

€ 1.50
