HEADLAMP (GSF1200T/V/W/X)

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

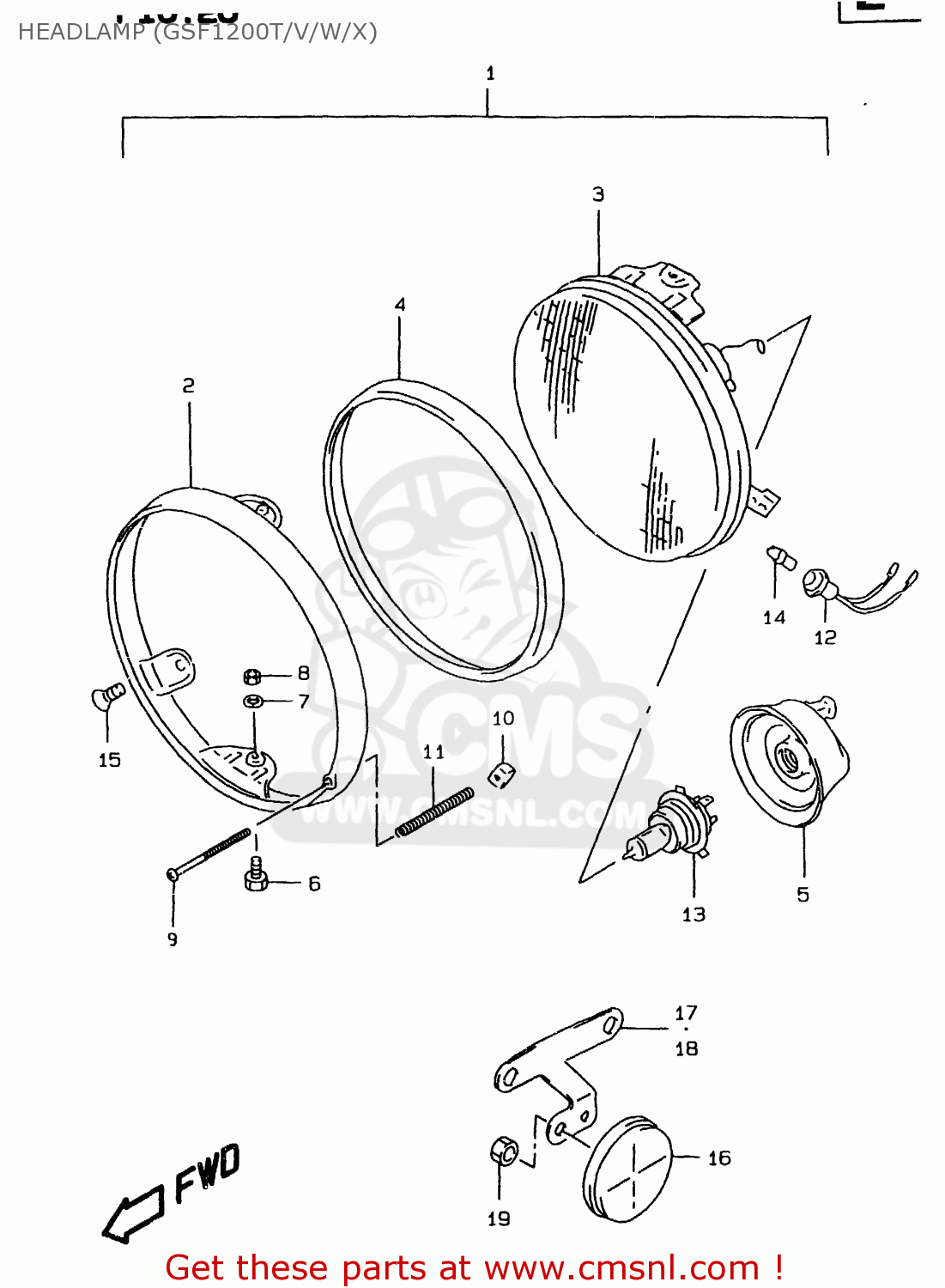

Headlamp (gsf1200t/v/w/x) diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

HEADLAMP (GSF1200T/V/W/X) GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

HEADLAMP (GSF1200T/V/W/X) GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

3510026D20999
ref: 1

HEADLAMP ASSY

€ 175.50

1

3510026D51999
ref: 1
E4, E18, E22, E25, E

HEADLAMP ASSY

€ 272.00

1

3510010D70999
ref: 1
MODEL T/V/W/X E24

HEADLAMP ASSY

€ 244.00

2

3511101D20
ref: 2

RIM,HEADLAMP

€ 55.50

3

3512110D20
ref: 3

LAMP UNIT

€ 147.00

3

3512110D41
ref: 3
E4, E18, E22, E25, E

LAMP UNIT

€ 147.00

3

3512110D30
ref: 3
MODEL T/V/W/X E24

LAMP UNIT

€ 113.00

4

3512710D20
ref: 4

RING

€ 22.00

5

3517320A01
ref: 5

COVER,SOCKET

€ 14.50

6

3518115611
ref: 6

H/LAMP LENS UNIT FITING SCRE

€ 3.00

7

0832101057
ref: 7

WASHER,LOCK

€ 2.00

8

0831000053
ref: 8

NUT

€ 2.50

9

3515145900
ref: 9

SCREW

€ 4.00

10

3515215611
ref: 10

NUT

€ 3.50

11

3515431900
ref: 11

SPRING,ADJUSTING

€ 3.50

12

3611826D50
ref: 12

SOCKET,PARKING LAMP

€ 19.00

13

0947112060
ref: 13

BULB(12V60/55W,H4)

€ 8.00

14

0947112063
ref: 14

BULB(12V4W)

€ 6.00

15

0212205127
ref: 15
MODEL T/V

SCREW

€ 2.50

15

0912605003
ref: 15
MODEL W/X

SCREW(5X12)

€ 2.50

16

3595014A00
ref: 16
E18

REFLECTOR,REFLEX FR

€ 15.00

17

3595640C01
ref: 17
E18

BRACKET,FR SIDE REFLECTOR,R

€ 7.50

18

3595740C01
ref: 18
E18

BRACKET,FR SIDE REFLECTOR,L

€ 7.50

19

0831000053
ref: 19
E18

NUT

€ 2.50

all assemblies
