FUEL COCK

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

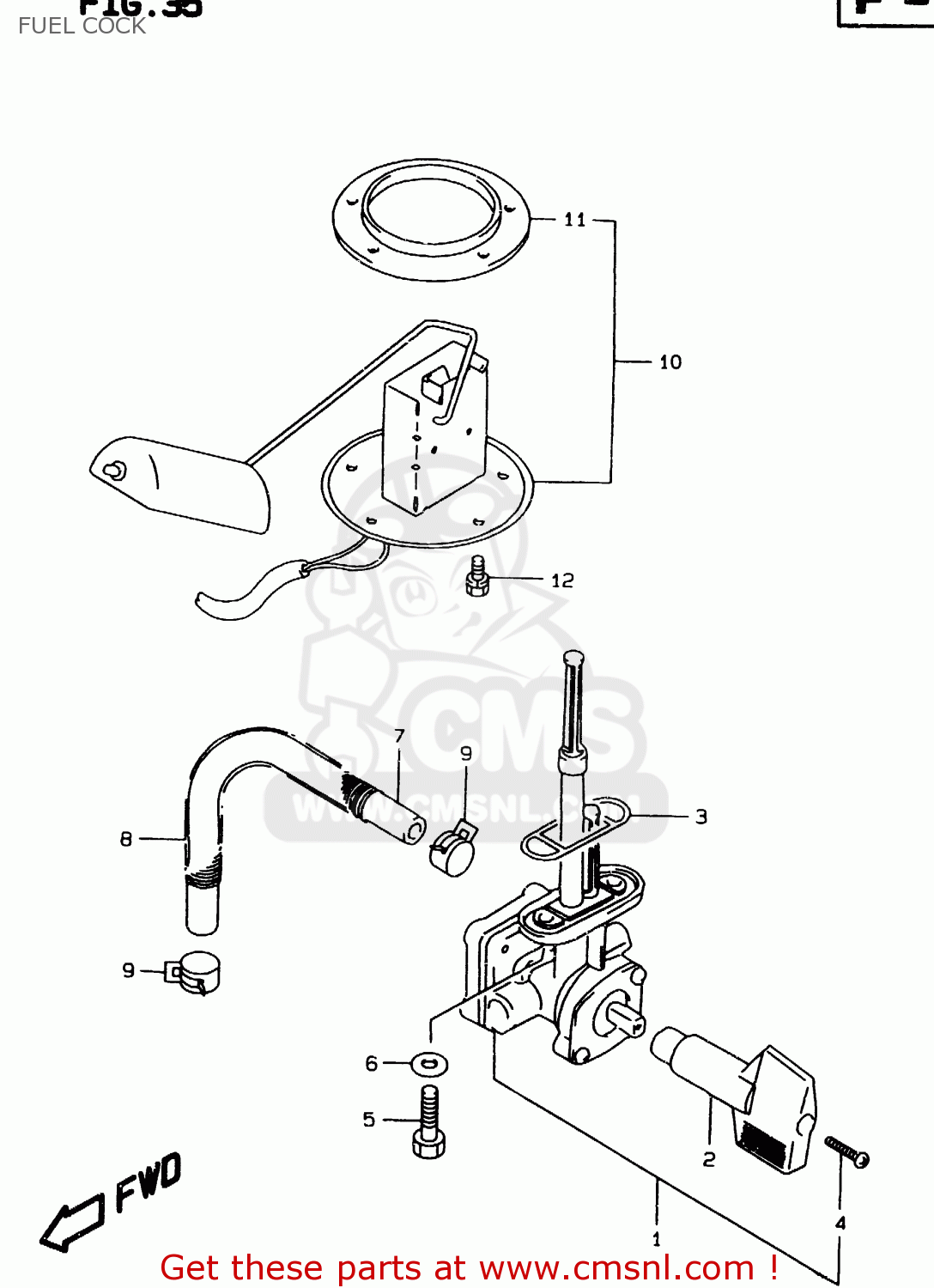

Fuel cock diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

4430026E00
ref: 1

COCK ASSEMBLY,FUEL

€ 124.00

4430626E00
ref: 2

LEVER,FUEL COCK

€ 21.50

4434887420
ref: 3

GASKET,JOINT (NAS)

€ 5.00

0212204203
ref: 4

SCREW

€ 2.00

0912806057
ref: 5

BOLT(6X20)

€ 2.00

0916806026
ref: 6

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

0935570125600
ref: 7

HOSE(7X12X600)

€ 26.00

0944017012
ref: 8

SPRING

€ 7.00

0940111407
ref: 9

CLIP

€ 2.50

3481027E00
ref: 10

GAUGE ASSEMBLY,FUEL LEVEL

€ 97.00

3482545100
ref: 11

GASKET,FUEL LEVEL GAUGE (NAS)

€ 7.00

0911705003
ref: 12

BOLT 5X10

€ 2.00
