CARBURETOR FITTING

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

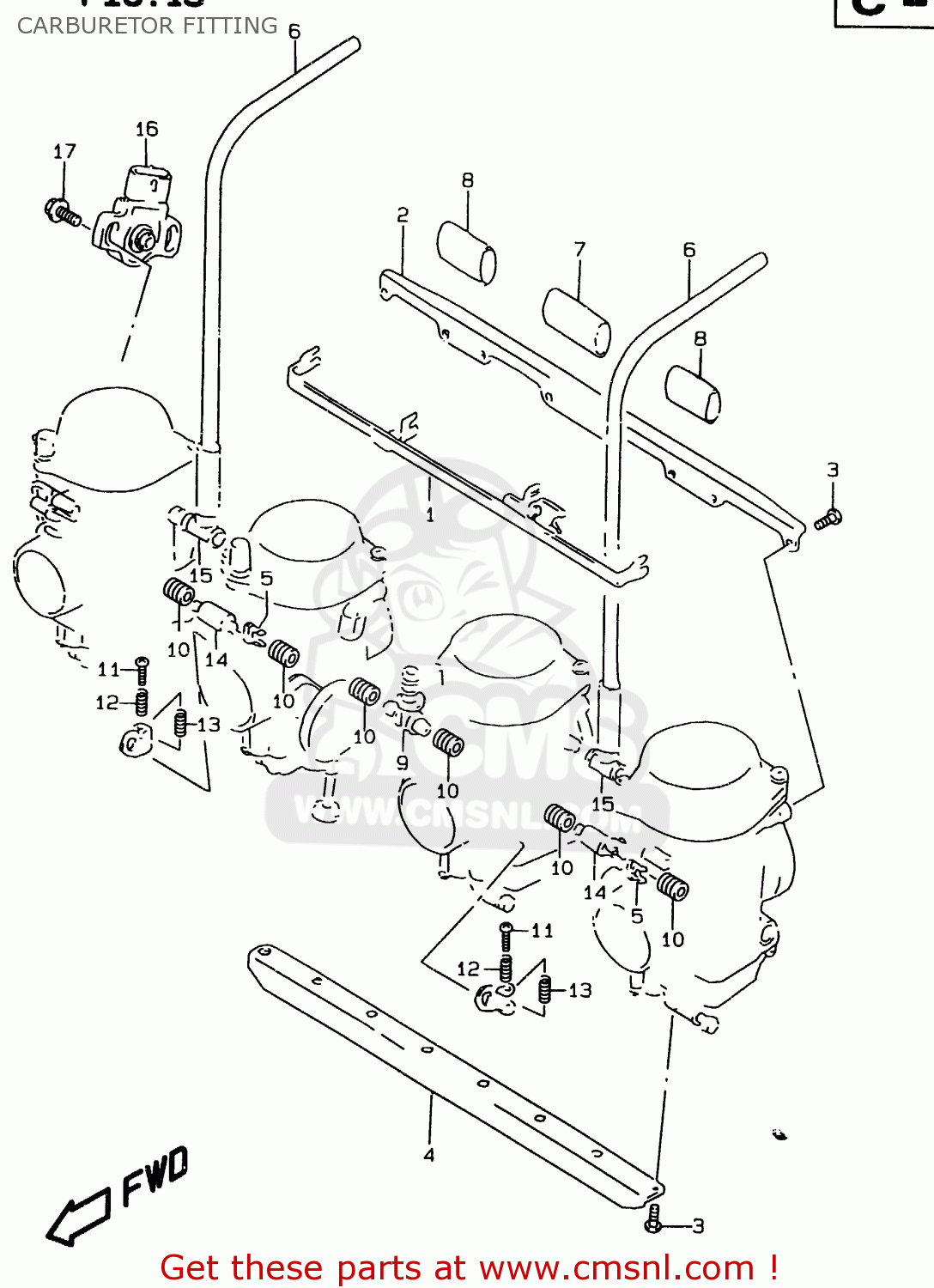

Carburetor fitting diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1341326D00
ref: 1

LEVER

€ 21.00

1362817C10
ref: 2

PLATE

€ 29.50

0211205127
ref: 3

SCREW

€ 2.50

1362817D00
ref: 4

PLATE

€ 27.00

1343917C00
ref: 5

HOLDER

€ 12.00

1368440C00
ref: 6

HOSE(7X10.2X475)

€ 22.00

1368443440
ref: 7

HOSE(16X19X100)

€ 6.50

1368443440
ref: 8

HOSE(16X19X100)

€ 6.50

1368544B00
ref: 9

NIPPLE

€ 10.00

1367344B00
ref: 10

SEAL

€ 6.00

1326744B00
ref: 11

SCREW

€ 3.50

1327144B00
ref: 12

SPRING

€ 4.00

1326817C10
ref: 13

SPRING

€ 7.00

1355626D00
ref: 14

PIPE

€ 10.00

1368420C10
ref: 15

HOSE

€ 7.00

1355013D60
ref: 16

SENSOR ASSY,THROTTLE

€ 129.50

1360520C00
ref: 17

SCREW,SENSOR

€ 3.00
