CAM CHAIN

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

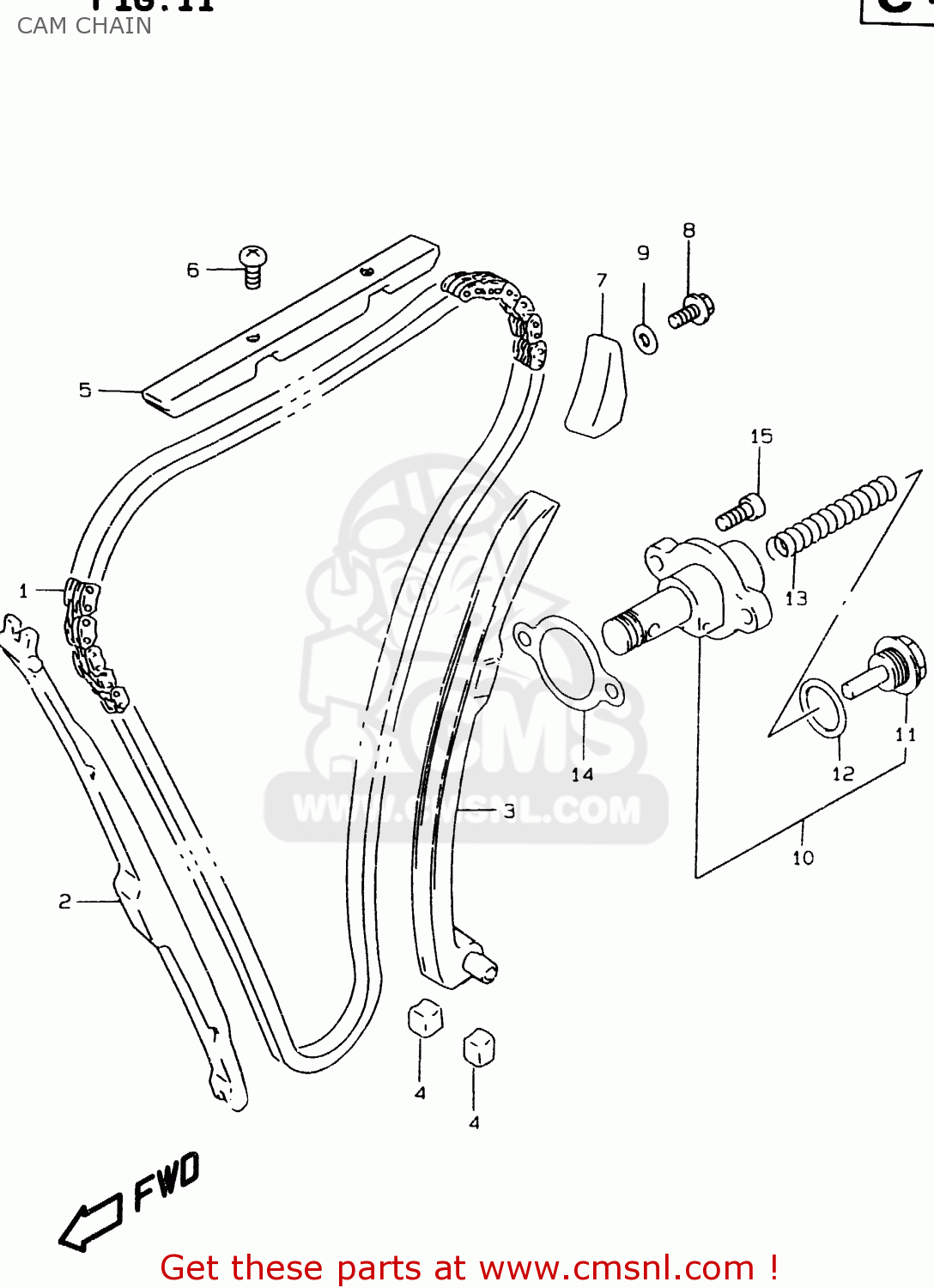

Cam chain diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1276026D00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 146.50

1277126D00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 42.00

1281026D00
ref: 3

TENSIONER,CAM CHAIN

€ 64.00

1281434200
ref: 4

CUSHION,CAM CHAIN TENSIONER

€ 6.50

1278205A01
ref: 5

GUIDE,RR CAM CHAIN NO.1

€ 28.00

0211206103
ref: 6

SCREW

€ 1.50

1279127A00
ref: 7

GUIDE,CAM CHAIN NO.2

€ 6.00

0155006103
ref: 8

BOLT

€ 2.50

0916806023
ref: 9

GASKET(5.8X13X1.2) (NAS)

€ 2.00

1283046E10
ref: 10

ADJUSTER ASSY,TENSIONER

€ 244.00

1283427A00
ref: 11

PLUG

€ 20.50

1283227A00
ref: 12

GASKET (NAS)

€ 5.50

1283326D10
ref: 13

SPRING

€ 5.00

1283727A10
ref: 14

GASKET,TENSIONER ADJUSTER (NAS)

€ 8.50

0713006253
ref: 15

BOLT,CL.COVER

€ 3.00
