REAR FENDER (GSF1200T/ST/V/SV/W/SW/X/SX)

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

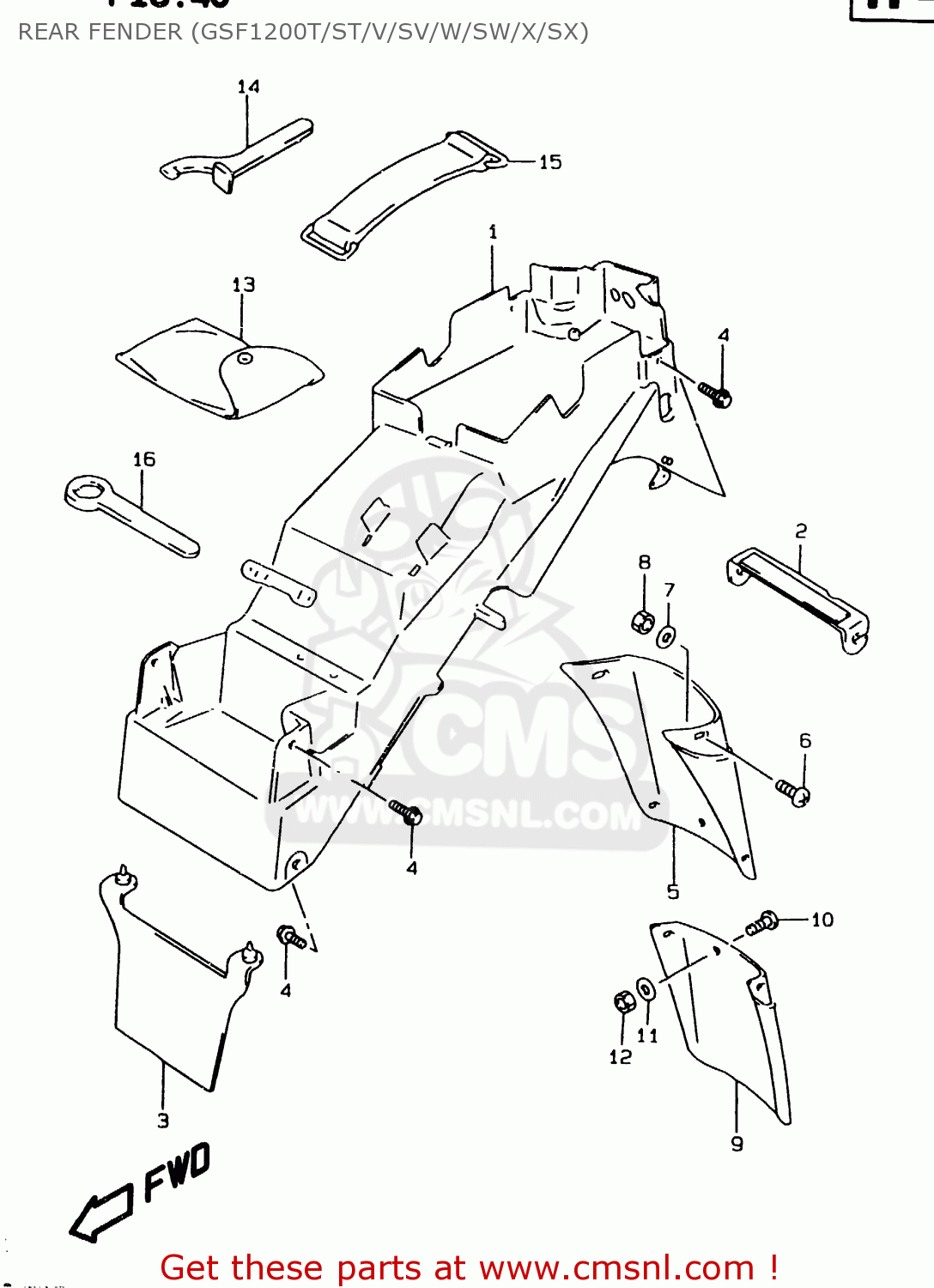

Rear fender (gsf1200t/st/v/sv/w/sw/x/sx) diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

REAR FENDER (GSF1200T/ST/V/SV/W/SW/X/SX) GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

REAR FENDER (GSF1200T/ST/V/SV/W/SW/X/SX) GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

6311026E00
ref: 1

FENDER COMP,RR

€ 141.50

1

6311026E10
ref: 1
E18

FENDER, REAR

€ 0.00

1

6311026E20
ref: 1
E17, E22

FENDER, REAR

€ 141.50

2

6312027E00
ref: 2

REINF,RR FENDER

€ 11.50

3

6341126E00
ref: 3

MUDGUARD,RR FENDER FR

€ 21.00

4

0911106066
ref: 4

BOLT(6X16)

€ 2.50

5

6331026E20
ref: 5
E17, E22

EXTENSION,RR FENDER

€ 25.00

5

6331026E30
ref: 5
E18

EXTENSION,RR FENDER

€ 27.50

6

0214206163
ref: 6
E17, E18, E22

SCREW

€ 2.50

7

0916006084
ref: 7
E17, E18, E22

WASHER(6.5X18X1.6)

€ 2.00

8

0831921068
ref: 8
E17, E18, E22

NUT 6MM

€ 2.00

9

6333127E00
ref: 9
E18

MUDGUARD,RR FENDER EXTENSION

€ 10.50

10

0214206163
ref: 10
E18

SCREW

€ 2.50

11

0916006084
ref: 11
E18

WASHER(6.5X18X1.6)

€ 2.00

12

0831921068
ref: 12
E18

NUT 6MM

€ 2.00

13

0980021017
ref: 13

TOOL ASSY

€ 59.00

14

0982200005
ref: 14

CLAMP

€ 22.00

15

0946200008
ref: 15

BAND

€ 4.50

16

0981700039
ref: 16

RING,SPANNER(24)

€ 6.50
