STARTING MOTOR

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

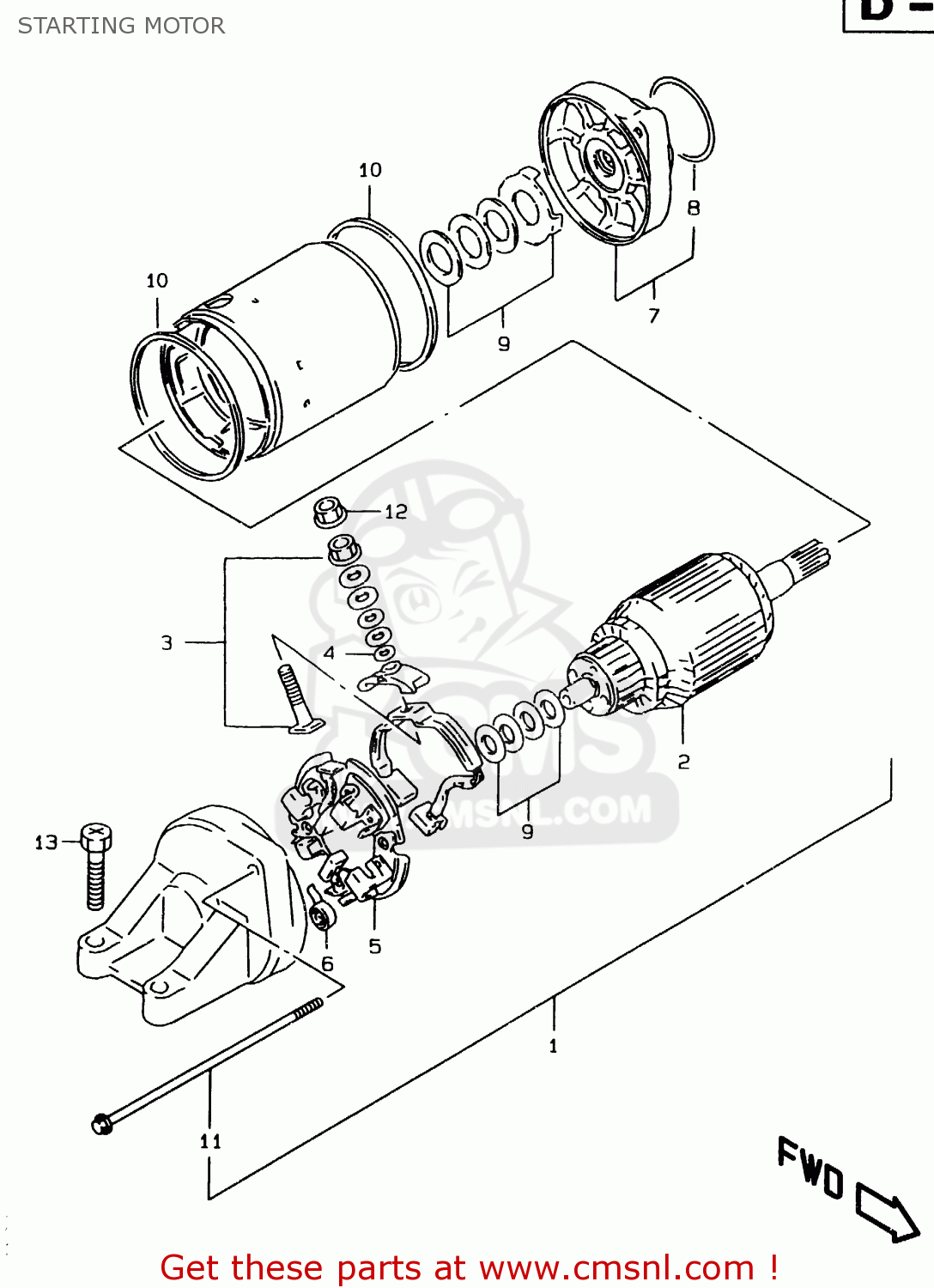

Starting motor diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

3110026D00
ref: 1
MODEL T/V/W

MOTOR ASSEMBLY,STARTING (SI

€ 943.50

3110026D10
ref: 1
MODEL X

MOTOR ASSY,STARTING

€ 943.50

3131040C02
ref: 2

ARMATURE

€ 261.50

3113038B00
ref: 3

TERMINAL SET,BRUSH

€ 45.00

3114349040
ref: 4

O RING

€ 3.00

3113238B00
ref: 5

HOLDER SET,BRUSH

€ 45.00

3113538B00
ref: 6

SPRING,BRUSH

€ 3.50

3115026D00
ref: 7

BRACKET ASSY,FR

€ 129.00

3115648B00
ref: 8

O RING

€ 8.50

3117019B10
ref: 9

SHIM SET,STARTING MOTOR

€ 8.00

3126431300
ref: 10
MODEL T/V

O RING

€ 7.50

3126432E00
ref: 10
MODEL W/X

SQUARE RING

€ 7.50

3128026D00
ref: 11

BOLT

€ 12.50

0836135068
ref: 12

NUT

€ 2.00

0912806024
ref: 13

SCREW (6X25)

€ 2.50
