FOOTREST (MODEL T)

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

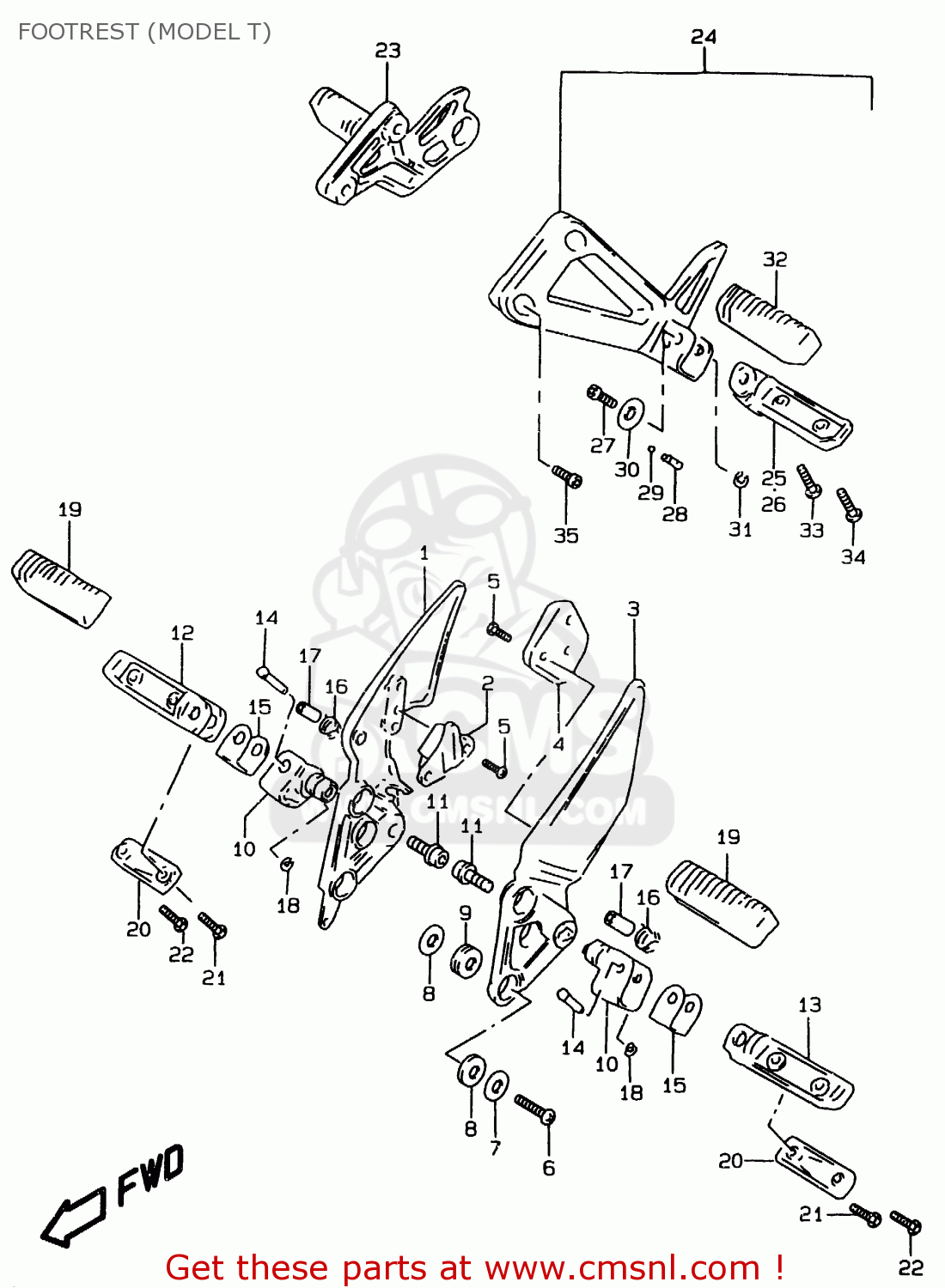

Footrest (model t) diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

FOOTREST (MODEL T) GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

FOOTREST (MODEL T) GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

4351127E50
ref: 1

BRACKET,FRONT FOOTREST

€ 218.00

2

4359127E50
ref: 2

BALANCER,FOOTREST BRACKET,R

€ 21.00

3

4352127E50
ref: 3

BRACKET,FRONT FOOTREST

€ 218.00

4

4359227E50
ref: 4

BALANCER,FOOTREST BRACKET,L

€ 32.50

5

0211206123
ref: 5

SCREW

€ 1.50

6

0910608134
ref: 6

BOLT(8X28)

€ 4.00

7

0916008021
ref: 7

WASHER (8.2X24X1.6)

€ 2.00

8

0916112009
ref: 8

WASHER(12.6X24X1.9)

€ 4.50

9

0931908036
ref: 9

BUSH(12X20X16)

€ 23.50

10

4353027E00
ref: 10

HOLDER,FOOTREST

€ 56.50

11

0910610064
ref: 11

BOLT(10X28)

€ 4.50

12

4351140C00
ref: 12

BAR,FOOTREST,R

€ 37.50

13

4352140C00
ref: 13

BAR,FOOTREST,L

€ 37.50

14

0920808010
ref: 14

PIN(8X33.2)

€ 3.00

15

4357046E20
ref: 15

CUSHION,FR FOOTREST

€ 18.50

16

0944818022
ref: 16

SPRING

€ 3.50

17

0918008149
ref: 17

SPACER(8.1X12X22)

€ 7.00

18

0833211063
ref: 18

E.RING

€ 2.00

19

4355040C11
ref: 19

RUBBER,FOOTREST

€ 16.00

20

4353631E10
ref: 20

BALANCER,FR FOOTREST

€ 30.50

21

0214205303
ref: 21

SCREW

€ 2.50

22

0214205253
ref: 22

SCREW

€ 2.50

23

4360027E50
ref: 23

FOOTREST ASSY,PILLION,R

€ 266.00

24

4370027E50
ref: 24

FOOTREST ASSY,PILLION,L

€ 237.00

25

4361040C00
ref: 25

BAR,PILLION FOOTREST,R

€ 49.00

26

4362040C00
ref: 26

BAR,PILLION FOOTREST,L

€ 49.00

27

4364240C00
ref: 27

BOLT,PILLION FOOTREST

€ 5.50

28

0944005003
ref: 28

SPRING

€ 1.50

29

0611107004
ref: 29

BALL

€ 1.50

30

0916010031
ref: 30

WASHER

€ 2.50

31

0833211063
ref: 31

E.RING

€ 2.00

32

4355040C11
ref: 32

RUBBER,FOOTREST

€ 16.00

33

0214205203
ref: 33

SCREW 5X20

€ 2.00

34

0214205163
ref: 34

SCREW

€ 2.50

35

0910608097
ref: 35

BOLT(8X25)

€ 2.50

all assemblies
