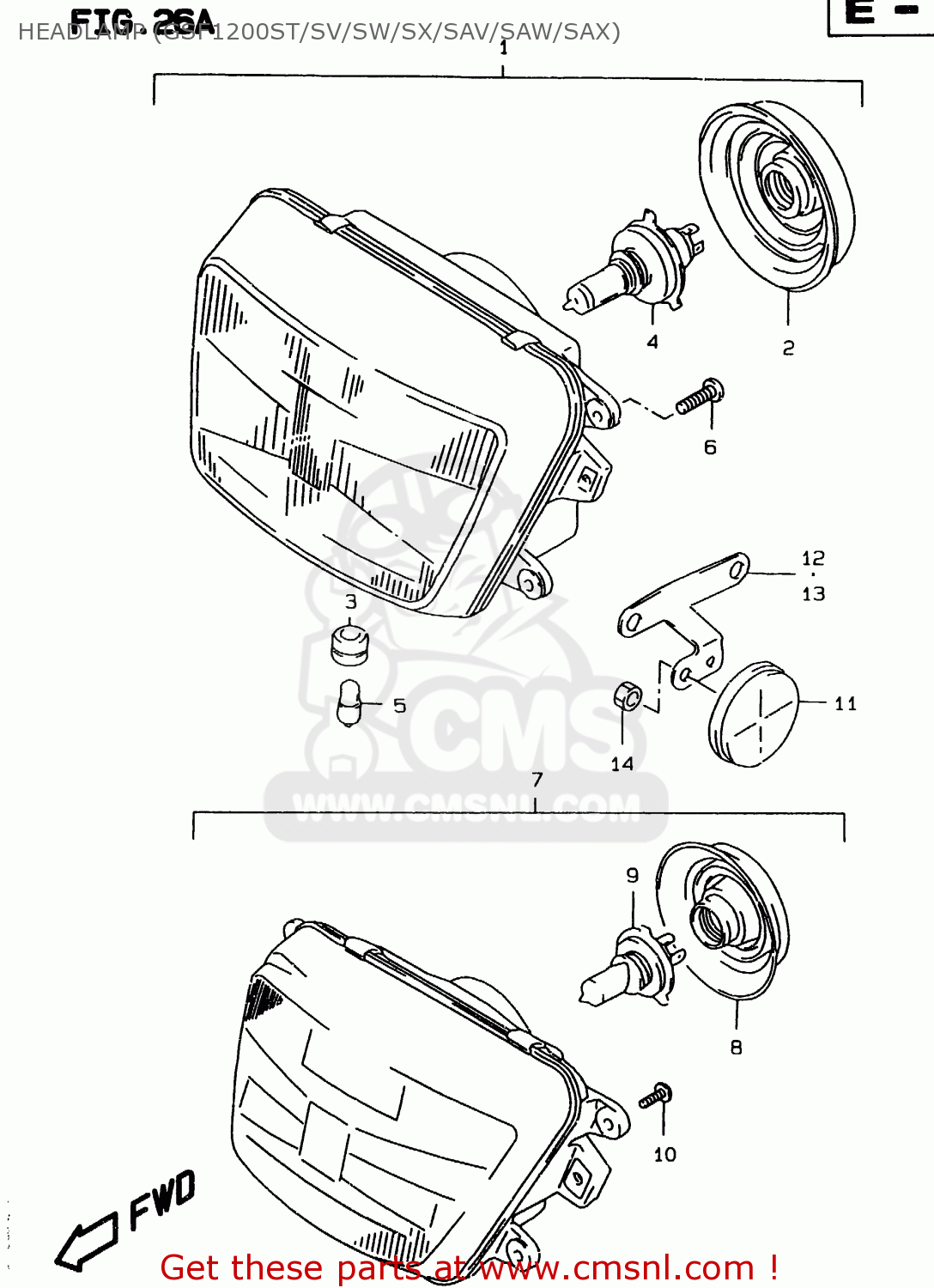

HEADLAMP (GSF1200ST/SV/SW/SX/SAV/SAW/SAX)

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

Headlamp (gsf1200st/sv/sw/sx/sav/saw/sax) diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

HEADLAMP (GSF1200ST/SV/SW/SX/SAV/SAW/SAX) GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

HEADLAMP (GSF1200ST/SV/SW/SX/SAV/SAW/SAX) GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

3510026E01999
ref: 1

HEADLAMP ASSY

€ 272.00

1

3510026E21999
ref: 1
E4, E17, E18, E22, E

HEADLAMP ASSY

€ 266.50

2

3517326B20
ref: 2

COVER,SOCKET

€ 14.50

3

3611622630
ref: 3

JOINT,RUBBER

€ 5.00

4

0947112060
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112063
ref: 5

BULB(12V4W)

€ 6.00

6

0214215163
ref: 6

SCREW

€ 3.00

7

3510019D11
ref: 7
E24

HEADLAMP ASSY

€ 318.50

8

3517326B20
ref: 8
E24

COVER,SOCKET

€ 14.50

9

0947112060
ref: 9
E24

BULB(12V60/55W,H4)

€ 8.00

10

0214205163
ref: 10
MODEL T/V

SCREW

€ 2.50

10

0214215163
ref: 10
MODEL W/X

SCREW

€ 3.00

11

3595014A00
ref: 11
E18

REFLECTOR,REFLEX FR

€ 15.00

12

3595640C01
ref: 12
E18

BRACKET,FR SIDE REFLECTOR,R

€ 7.50

13

3595740C01
ref: 13
E18

BRACKET,FR SIDE REFLECTOR,L

€ 7.50

14

0831000053
ref: 14
E18

NUT

€ 2.50
