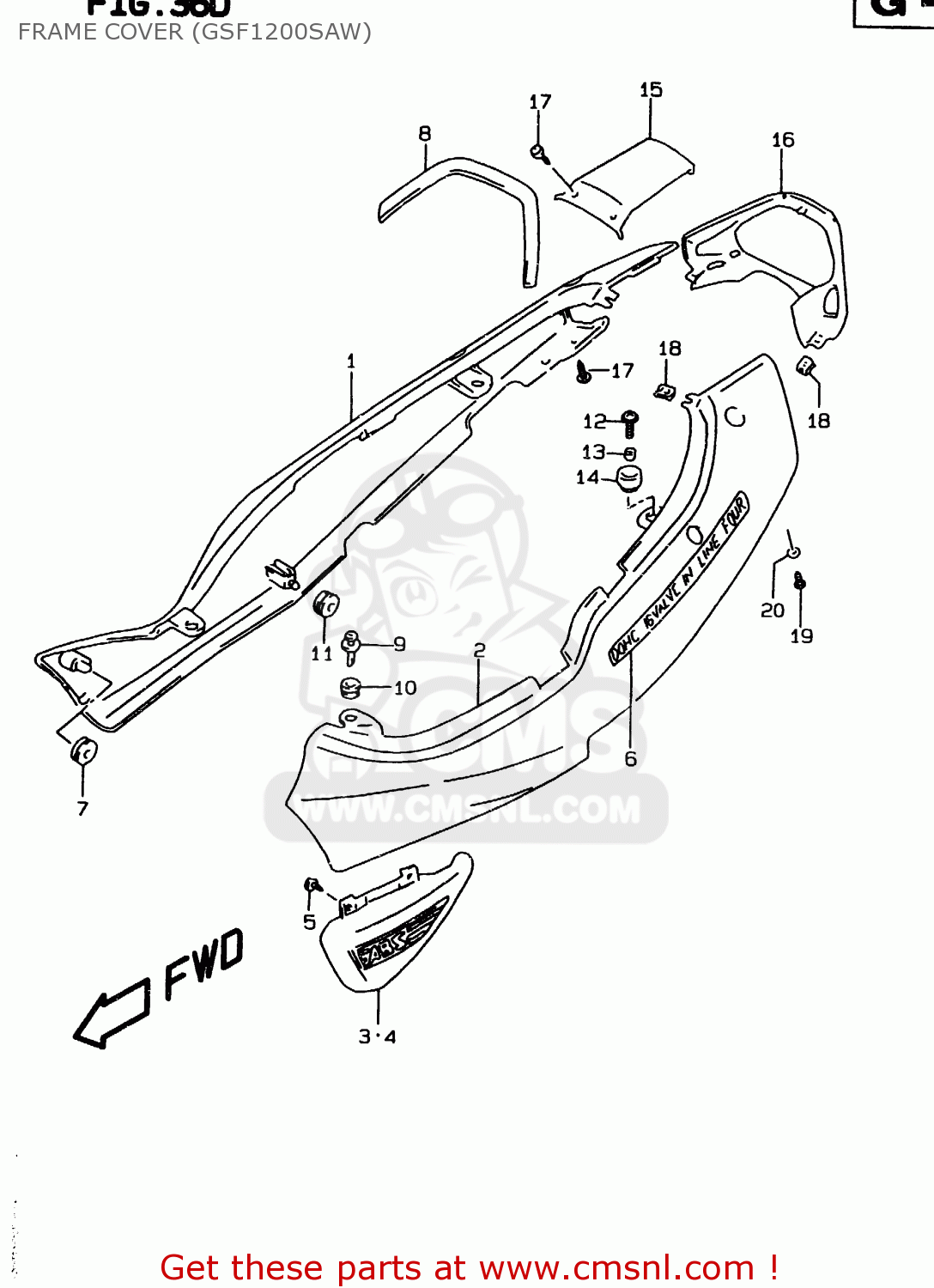

FRAME COVER (GSF1200SAW)

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

Frame cover (gsf1200saw) diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

FRAME COVER (GSF1200SAW) GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

FRAME COVER (GSF1200SAW) GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

4711027E6022U
ref: 1

COVER,FRAME,R(MAROON)

€ 0.00

1

4711027E6033J
ref: 1

COVER COMP,FRAME,RIGHT

€ 159.50

1

4711027E601UH
ref: 1

COVER,FRAME,R(GREEN)

€ 174.00

1

4711027E60Y4H
ref: 1

COVER, FRAME RH (SILVER)

€ 159.50

2

4721027E6022U
ref: 2

COVER COMP,FRAME,LEFT

€ 0.00

2

4721027E6033J
ref: 2

COVER,FRAME,L(BLACK)

€ 179.00

2

4721027E601UH
ref: 2

COVER, FRAME LH (GREEN)

€ 179.00

2

4721027E60Y4H
ref: 2

COVER, FRAME LH (SILVER)

€ 174.00

3

4712127E00291
ref: 3

COVER,FRAME LWR,R

€ 25.00

4

4722127E00291
ref: 4

COVER,FRAME LWR,L

€ 21.00

5

0354105163
ref: 5

SCREW

€ 1.50

6

6813126E3024G
ref: 6
FOR 22U, 33J

EMBLEM,FRAME COVER

€ 9.50

6

6813126E301RR
ref: 6
FOR 1UH

EMBLEM,FRAME COVER (GOLD)

€ 9.00

6

6813126E3020F
ref: 6
FOR Y4H

EMBLEM,FRAME COVER(MAROON)

€ 7.00

7

4716121E00
ref: 7

CUSHION,FRAME COVER FR

€ 7.50

8

4716127E00
ref: 8

CUSHION,FRAME COVER UPR

€ 6.50

9

0940910306
ref: 9

CLIP

€ 3.00

10

0932010501
ref: 10

CUSHION

€ 5.50

11

0932008018
ref: 11

CUSHION

€ 4.00

12

0913606105
ref: 12

SCREW(6X20)

€ 2.00

13

0918006286
ref: 13

SPACER(6.5X10X9.4)

€ 2.50

14

0932010045
ref: 14

CUSHION

€ 3.50

15

4731126E0022U
ref: 15

COVER,FRAME CTR

€ 35.00

15

4731126E0033J
ref: 15

COVER,FRAME CTR

€ 38.00

15

4731126E001UH
ref: 15

COVER,FRAME,CENTER

€ 35.50

15

4731126E00Y4H
ref: 15

COVER,FRAME,CENTER (SILVER)

€ 35.50

16

4733126E00291
ref: 16

COVER,FRAME RR

€ 52.00

17

0324115123
ref: 17

SCREW

€ 2.50

18

0914805020
ref: 18

NUT

€ 2.00

19

0214206163
ref: 19

SCREW

€ 2.50

20

0916106021
ref: 20

WASHER(6.3X16X1.5)

€ 2.50
