BATTERY

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

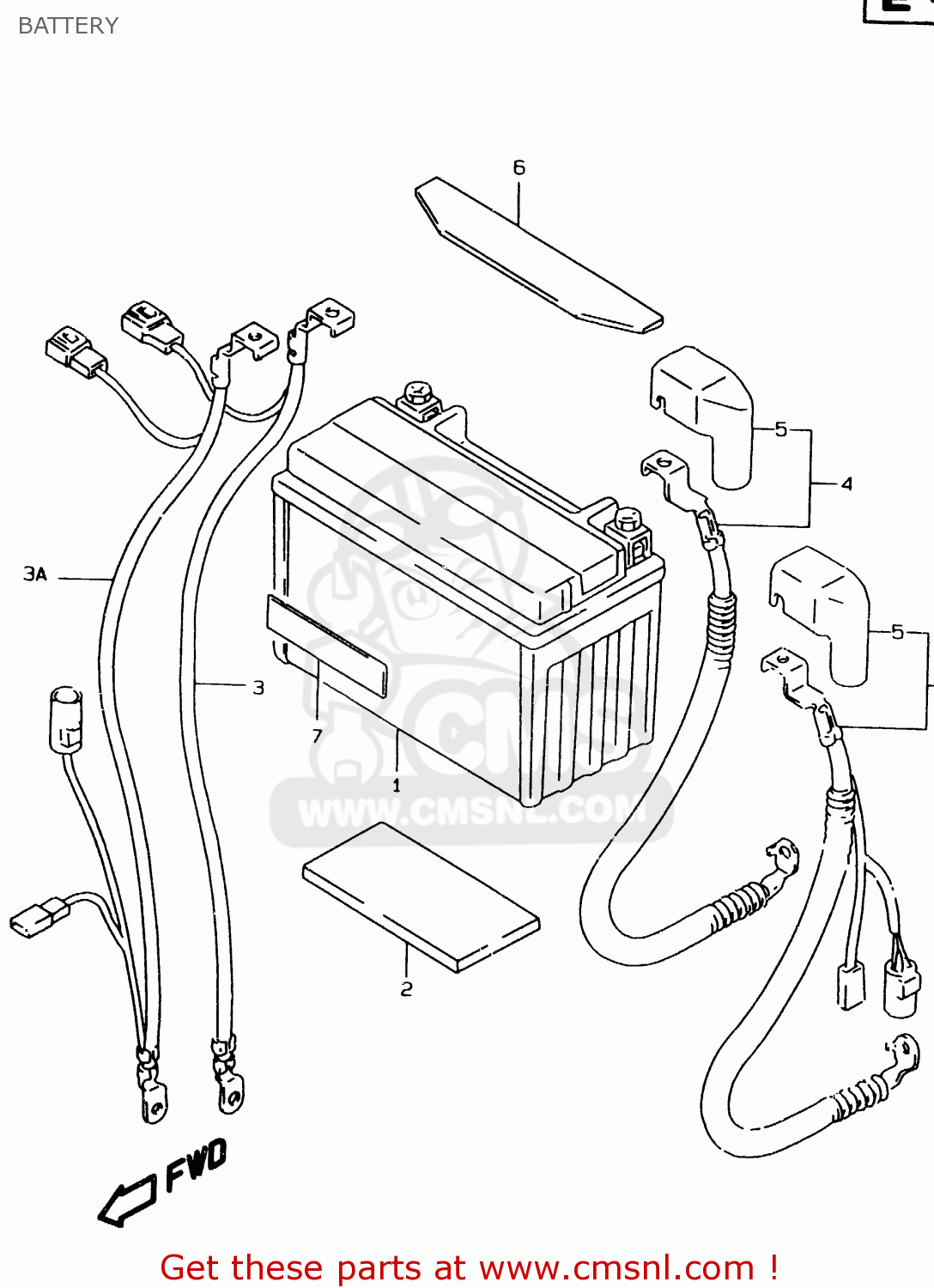

Battery diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

3361017E10
ref: 1
12V, 10AH

BATTERY ASSY(YTX12-BS,12V10AH)

€ 97.50

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3386046E00
ref: 3
GSF1200T/V/W/X/ST/SV

WIRE,BATTERY MINUS

€ 27.50

3386027EA0
ref: 3A
GSF1200SAV/SAW/SAX

WIRE,BATTERY MINUS

€ 41.00

3382026E00
ref: 4
GSF1200T/V/W/X/ST/SV

WIRE,BATTERY PLUS LEAD

€ 27.00

3382027EA0
ref: 4A
GSF1200SAV/SAW/SAX

WIRE,BATTERY PLUS

€ 62.00

3362443500
ref: 5

CAP,BATTERY PLUS TERMINAL

€ 3.50

3365126400
ref: 6

PROTECTOR,BATTERY

€ 4.00

3365226E00
ref: 7

PROTECTOR(20X90)X1.0

€ 3.00
