CRANKSHAFT

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

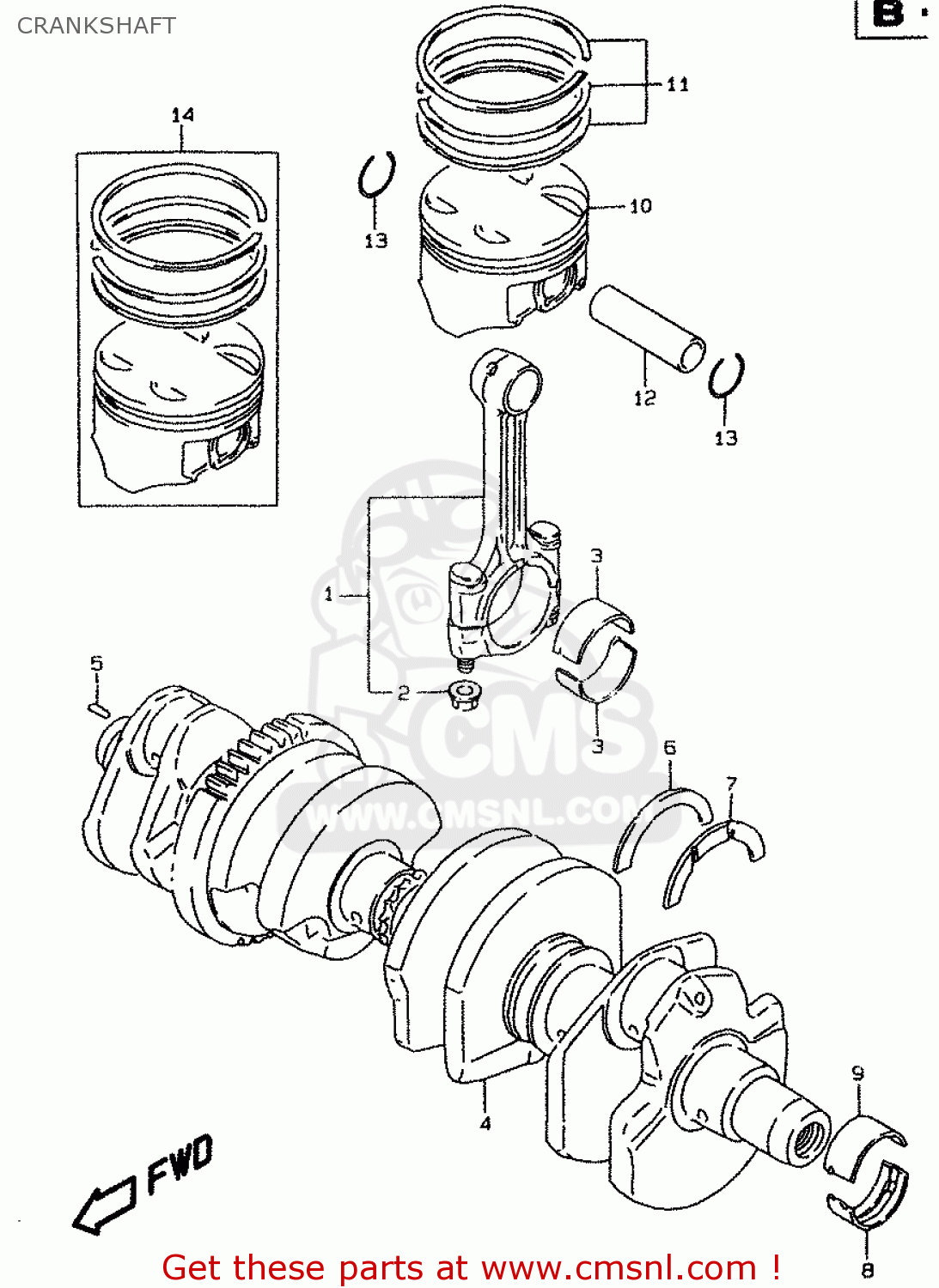

Crankshaft diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

CRANKSHAFT GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

CRANKSHAFT GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

1216040C02
ref: 1
MODEL T/V/W

ROD ASSEMBLY,CONNECTING

€ 167.00

1

1216040C03
ref: 1
MODEL X

CONNECTING ROD ASSY

€ 167.00

2

0915909001
ref: 2

NUT

€ 4.50

3

1216446E010A0
ref: 3

BEARING,CRANK PIN

€ 17.50

3

1216446E010B0
ref: 3

BEARING,CRANK PIN

€ 16.50

3

1216446E010C0
ref: 3

BEARING,CRANK PIN

€ 17.50

3

1216446E010D0
ref: 3

BEARING,CRANK PIN

€ 16.50

4

1200027830
ref: 4
~E.NO.110512

CRANKSHAFT SET

€ 28,588.50

4

1200027831
ref: 4
E.NO.110513~

CRANKSHAFT SET

€ 28,588.50

5

0422104089
ref: 5

PIN

€ 1.50

6

1222848B000E0
ref: 6
RH

BEARING,CRANK THRUST(GREEN)

€ 8.00

7

1222848B000A0
ref: 7
LH

BEARING,CRANK THRUST(PINK)

€ 7.50

7

1222848B000B0
ref: 7
LH

BEARING,CRANK THRUST(BROWN)

€ 7.50

7

1222848B000C0
ref: 7
LH

BEARING,CRANK THRUST(RED)

€ 7.50

7

1222848B000D0
ref: 7
LH

BEARING,CRANK THRUST(YELLOW)

€ 7.50

7

1222848B000E0
ref: 7
LH

BEARING,CRANK THRUST(GREEN)

€ 8.00

7

1222848B000F0
ref: 7
LH

BEARING,CRANK THRUST(BLUE)

€ 7.50

7

1222848B000G0
ref: 7
LH

BEARING,CRANK THRUST(ORANGE)

€ 7.50

7

1222848B000H0
ref: 7
LH

BEARING,CRANK THRUST(BLACK)

€ 7.50

8

1222906B000A0
ref: 8
LOWER

BEARING,CRANKSHAFT LWR

€ 12.00

8

1222906B000B0
ref: 8
LOWER

BEARING,CRANKSHAFT LWR

€ 12.50

8

1222906B000C0
ref: 8
LOWER

BEARING,CRANKSHAFT LWR

€ 12.00

8

1222906B000D0
ref: 8
LOWER

BEARING,CRANKSHAFT LWR

€ 12.50

9

1222906B100A0
ref: 9
UPPER

BEARING,CRANKSHAFT UPR

€ 12.00

9

1222906B100B0
ref: 9
UPPER

BEARING,CRANKSHAFT UPR

€ 12.50

9

1222906B100C0
ref: 9
UPPER

BEARING,CRANKSHAFT UPR

€ 12.00

9

1222906B100D0
ref: 9
UPPER

BEARING,CRANKSHAFT UPR

€ 11.50

10

1211127E010F0
ref: 10

PISTON

€ 98.00

11

1214027E20
ref: 11

RING SET,PISTON

€ 89.50

12

1215105A00
ref: 12

PIN,PISTON

€ 12.00

13

0938120004
ref: 13

CIRCLIP,PISTON PIN

€ 2.00

14

1210027E01050
ref: 14
OPT

PISTON SET (OS:0.5)

€ 154.00
