SEAT

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

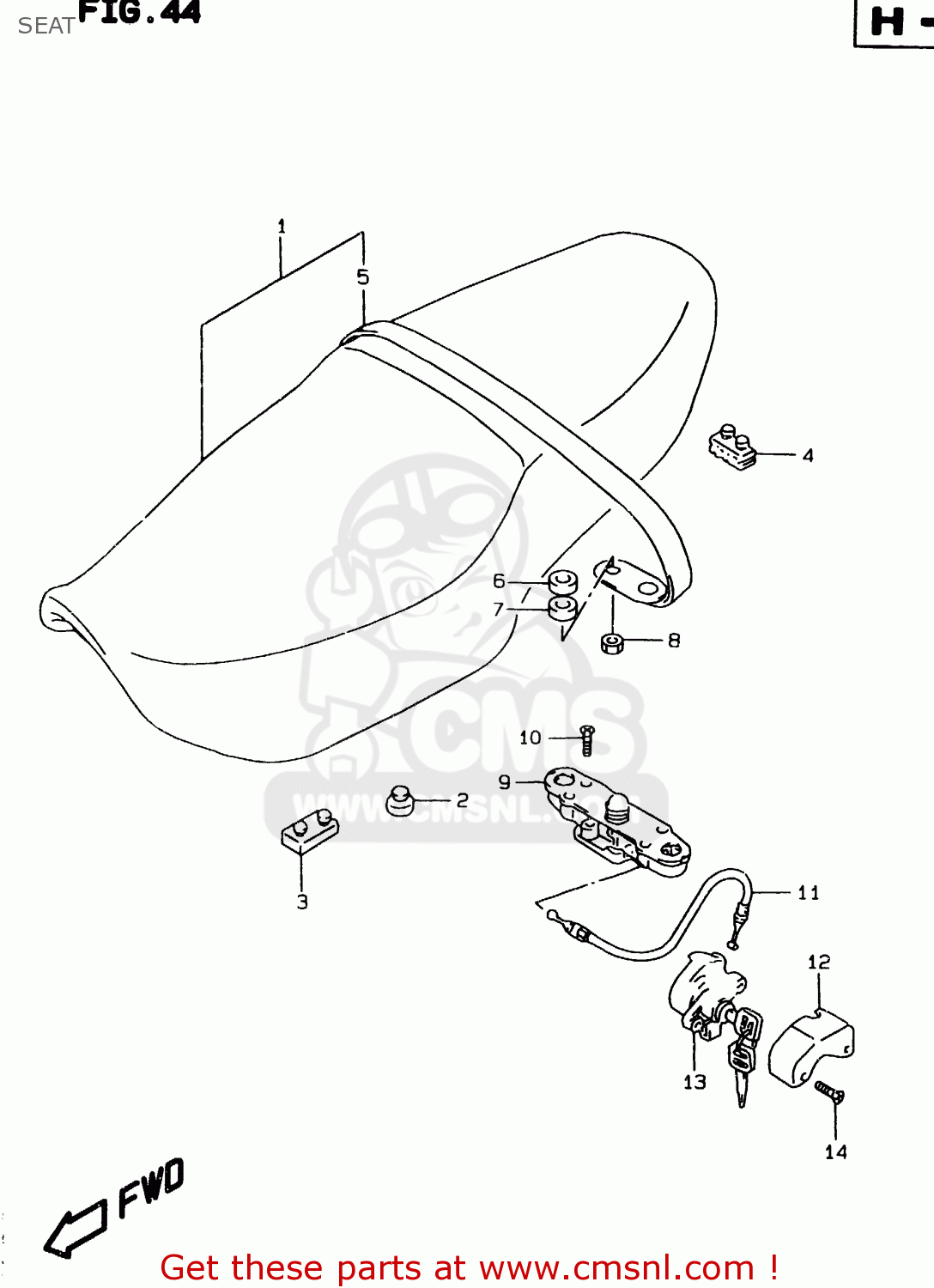

Seat diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

SEAT GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

SEAT GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

4510026E11P21
ref: 1
GSF1200T/V/W/X/ST/SV

SEAT ASSY

€ 820.00

1

4510026E60P21
ref: 1
GSF1200SAV/SAW/SAX

SEAT ASSY (BLACK)

€ 355.50

2

0932110012
ref: 2

CUSHION

€ 3.00

3

0932108006
ref: 3

CUSHION

€ 3.00

4

4514931300
ref: 4

CUSHION,SEAT(40X20X15)

€ 2.00

5

4518026E01P21
ref: 5

BAND ASSY,SEAT(BLACK)

€ 29.50

6

0932010038
ref: 6

CUSHION

€ 4.00

7

0932014017
ref: 7

CUSHION

€ 3.00

8

0831620063
ref: 8

NUT

€ 2.00

9

4522013601
ref: 9

LOCK ASSY,SEAT STRIKER

€ 47.00

10

0211206303
ref: 10

SCREW 6X30

€ 2.50

11

4528008A00
ref: 11

CABLE,SEAT LOCK

€ 13.00

12

4528926E00
ref: 12

GUARD,SEAT LOCK

€ 13.00

13

9570010833
ref: 13

LOCK SET,SEAT & HELMET

€ 99.50

14

0913906092
ref: 14
GSF1200T/V/W/X/ST/SV

SCREW(6X14)

€ 3.50

14

4579126E00
ref: 14
GSF1200SAV/SAW/SAX

SCREW,SEAT LOCK

€ 2.50
