CRANKCASE COVER

GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

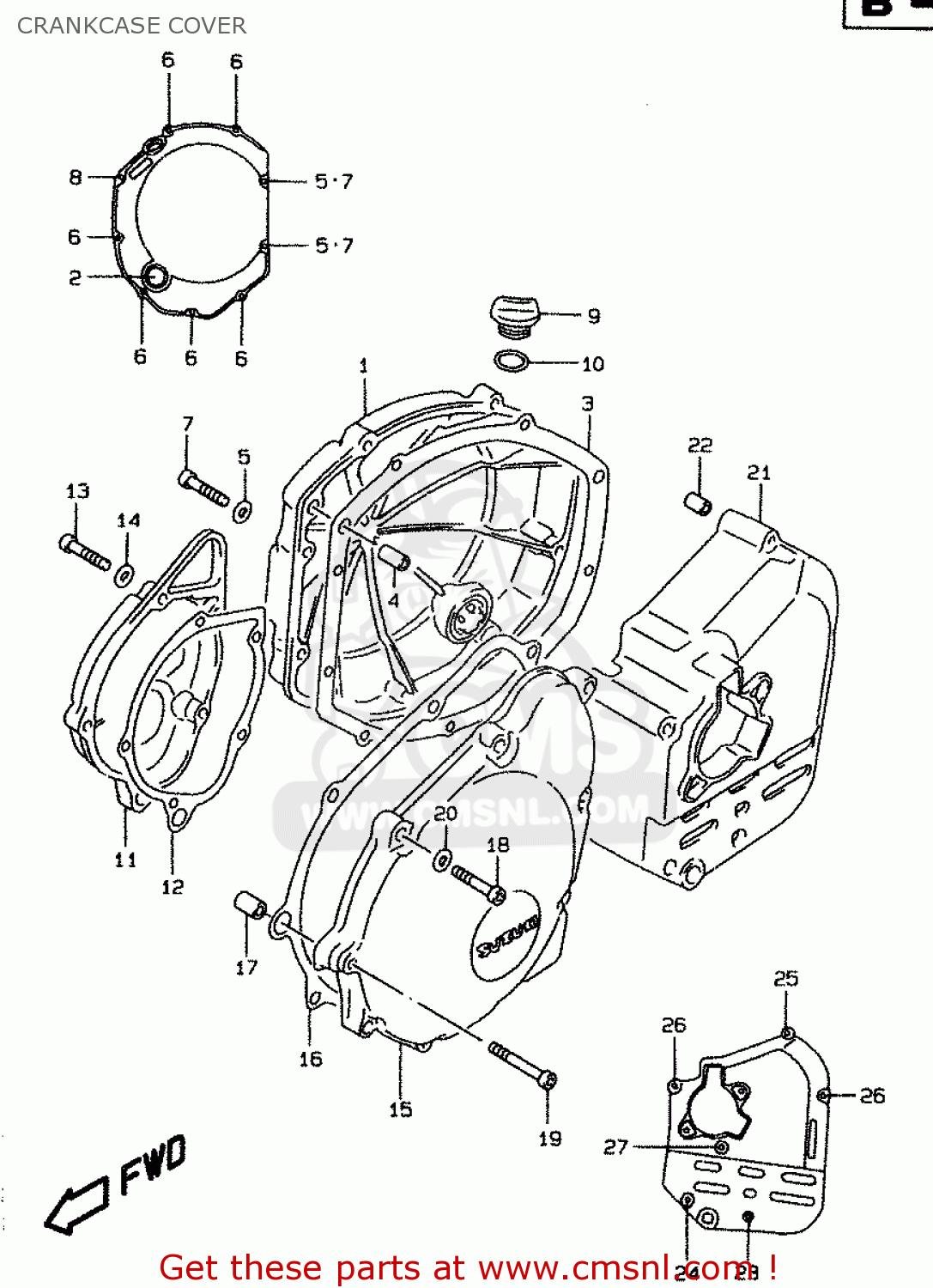

Crankcase cover diagram GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

CRANKCASE COVER GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

CRANKCASE COVER GSF1200 1997 (V) (E02 E04 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

1134026E20
ref: 1

COVER,CLUTCH

€ 237.00

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 15.00

3

1148227A20
ref: 3

GASKET,CL COVER (NAS)

€ 19.00

4

0421109189
ref: 4

PIN

€ 2.50

5

0916806024
ref: 5

GASKET(5.8X11X1.2) (NAS)

€ 3.00

6

0713006253
ref: 6

BOLT,CL.COVER

€ 4.00

7

0713006303
ref: 7

BOLT

€ 3.00

8

0713006353
ref: 8

BOLT

€ 5.00

9

0925920008
ref: 9

PLUG

€ 8.50

10

0928017003
ref: 10

O RING(D:3.1,ID:16.8)

€ 2.50

11

1138126E20
ref: 11

COVER,SIGNAL GENERATOR

€ 76.00

12

1149127A30
ref: 12

GASKET,SIGNAL GEN COVER (NAS)

€ 9.50

13

0910606082
ref: 13

BOLT(6X22)

€ 4.00

14

0916806024
ref: 14

GASKET(5.8X11X1.2) (NAS)

€ 3.00

15

1135126E20
ref: 15

COVER,STARTER GEAR

€ 193.00

16

1148348B20
ref: 16

GASKET,STARTER GEAR COVER (NAS)

€ 14.00

17

0920611017
ref: 17

PIN(8.4X11X20)

€ 9.00

18

0713006253
ref: 18

BOLT,CL.COVER

€ 4.00

19

0713006403
ref: 19

BOLT

€ 5.00

20

0916806024
ref: 20

GASKET(5.8X11X1.2) (NAS)

€ 3.00

21

1136027E00
ref: 21

COVER COMP,ENGINE SPROCKET

€ 217.00

22

0421109129
ref: 22

PIN

€ 2.50

23

0713006453
ref: 23

BOLT

€ 3.00

24

0713006353
ref: 24

BOLT

€ 5.00

25

0713006553
ref: 25

BOLT

€ 3.50

26

0713006703
ref: 26

BOLT

€ 5.00

27

0713006753
ref: 27

BOLT

€ 4.00
