AIR CLEANER

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

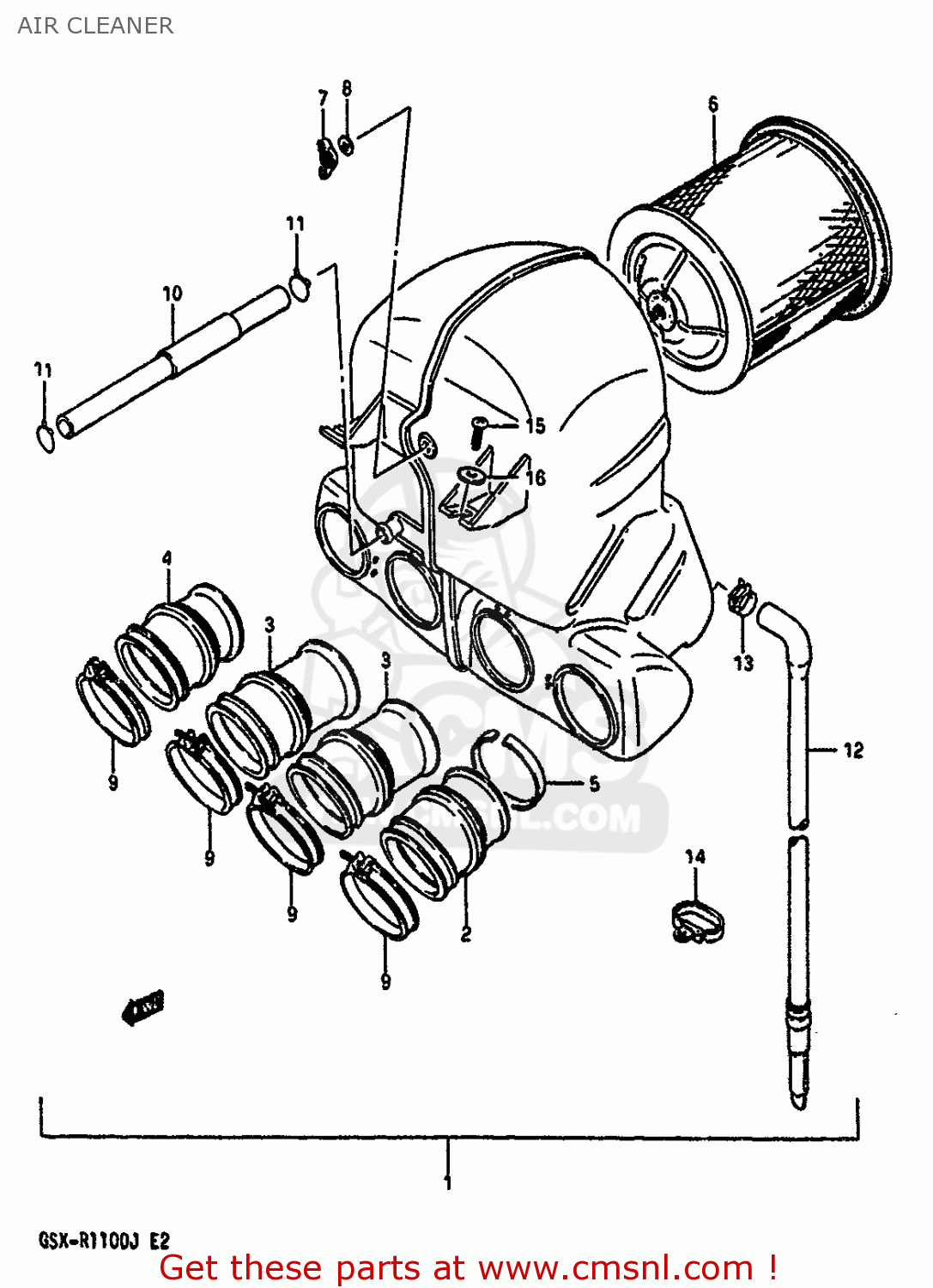

Air cleaner diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1370006B00
ref: 1

CLEANER ASSEMBLY,AIR

€ 245.50

1388106B00
ref: 2

TUBE,OUTLET,L

€ 20.00

1388206B00
ref: 3

TUBE,OUTLET MIDDLE,L/R

€ 31.00

1388306B00
ref: 4

TUBE,OUTLET,R

€ 28.50

1388545450
ref: 5

RING

€ 8.00

1378006B00
ref: 6

FILTER

€ 44.00

0831712058
ref: 7

NUT, WING

€ 2.00

0832211058
ref: 8

WASHER 5MM

€ 2.50

0940256208
ref: 9

CLAMP

€ 3.50

1385006B00
ref: 10

TUBE,BREATHER

€ 8.50

0940114301
ref: 11

CLIP

€ 2.00

1387021447
ref: 12

DRAIN TUBE

€ 23.50

1382543400
ref: 13

CLIP

€ 2.50

1387927A01
ref: 14

CLAMP,AIR CLEANER DRAIN TUBE

€ 4.50

0211206208
ref: 15

SCREW

€ 2.00

0916006007
ref: 16

WASHER

€ 2.00

AIR CLEANER

all assemblies
