COWLING (MODEL J,13Z)

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

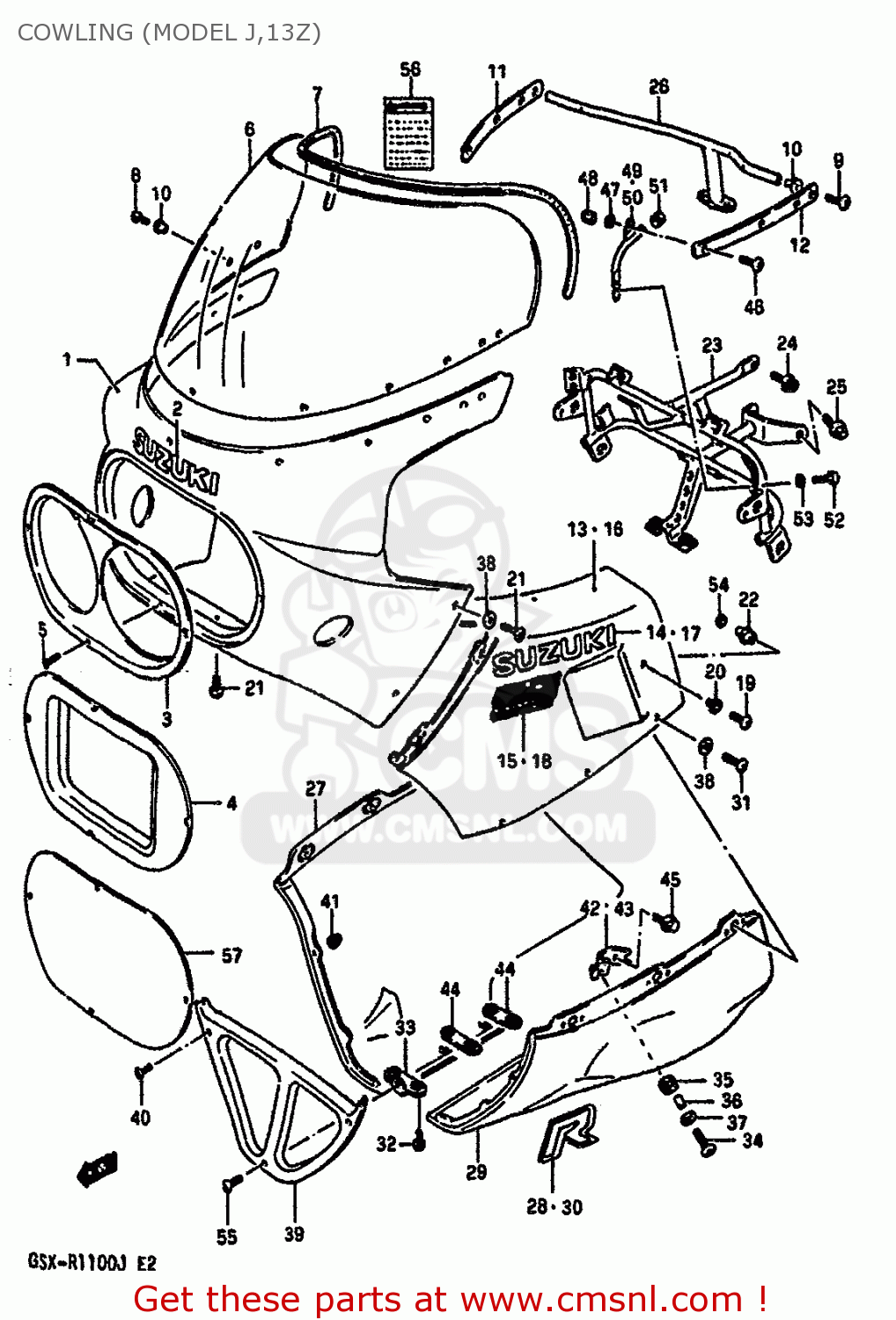

Cowling (model j,13z) diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

COWLING (MODEL J,13Z) GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL J,13Z) GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL J,13Z) GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
9440027B1013Z
ref: 1-1
BODY ASSY,COWLING (BLACK)
€ 832.50
1-2
9440006B8013Z
ref: 1-2
E18
BODY ASSY,COWLING (BLACK)
€ 0.00
2
6827104A0038Z
ref: 2
EMBLEM
€ 9.00
3
9443527A00291
ref: 3
COVER,COWLING FR
9443527A00291
€ 35.00
4
9443527A20291
ref: 4
E18
COVER,FRONT (BLACK)
€ 42.00
5
0354104125
ref: 5
SCREW
0354104125
€ 1.50
6-1
9461106B01
ref: 6-1
WINDSCREEN
€ 457.50
6-2
9461128A00
ref: 6-2
OPT HARD COATING
SCREEN,WIND (SMOKE)
€ 457.50
7-1
9463127A00
ref: 7-1
MOLDING,SCREEN
9463127A00
€ 15.00
7-2
9463127A10
ref: 7-2
E17
MOLDING
€ 14.00
8
0913905025
ref: 8
SCREW(5X14)
0913905025
€ 2.00
9
0913905032
ref: 9
SCREW(5X18)
0913905032
€ 2.50
10
9461927A00
ref: 10
NUT,COWLING SCREEN
9461927A00
€ 6.50
11
9452927A00
ref: 11
PLATE,RR VIEW MIRROR,R
9452927A00
€ 6.00
12
9453927A00
ref: 12
PLATE,RR VIEW MIRROR,L
9453927A00
€ 4.50
13-1
9443006B8013Z
ref: 13-1
COVER,SIDE RH (BLACK)
€ 319.00
13-2
9443006B9013Z
ref: 13-2
E39
COVER,SIDE RH (BLACK)
€ 0.00
14
6818132B0038Z
ref: 14
EMBLEM,COWLING SIDE
6818132B0038Z
€ 12.00
15
6868127B109WW
ref: 15
EMBLEM
€ 8.00
16-1
9444006B8013Z
ref: 16-1
COVER,SIDE LH (BLACK)
€ 247.00
16-2
9444006B9013Z
ref: 16-2
E39
COVER,SIDE LH (BLACK)
€ 0.00
17
6818132B0038Z
ref: 17
EMBLEM,COWLING SIDE
6818132B0038Z
€ 12.00
18
6868127B109WW
ref: 18
EMBLEM
€ 8.00
19
0913906027
ref: 19
SCREW(6X12)
0913906027
€ 3.00
20
0916906033
ref: 20
WASHER
0916906033
€ 1.50
21
0913906030
ref: 21
SCREW(6X16)
0913906030
€ 3.50
22
9457004A00
ref: 22
CUSHION,COWLING
9457004A00
€ 12.50
23
9451006B00
ref: 23
BRACE,COWLING FR
9451006B00
€ 116.50
24
0712008205
ref: 24
BOLT
0712008205
€ 3.00
25
0712008165
ref: 25
BOLT
€ 3.00
26
9453006B00
ref: 26
BRACE,COWLING BODY RR
9453006B00
€ 38.50
27
9447027B1013Z
ref: 27
COVER,LOWER RH (BLACK)
€ 626.00
28
6826127B1039B
ref: 28
EMBLEM,COWLING LWR
€ 20.00
29
9448027B1013Z
ref: 29
COVER,LOWER LH (BLACK)
€ 626.00
30
6826127B1039B
ref: 30
EMBLEM,COWLING LWR
€ 20.00
31
0913906030
ref: 31
SCREW(6X16)
0913906030
€ 3.50
32
0913906039
ref: 32
SCREW(6X16)
0913906039
€ 2.50
33
9449006B00
ref: 33
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
34
0913906028
ref: 34
SCREW(6X20)
0913906028
€ 3.50
35
0932009016
ref: 35
CUSHION
0932009016
€ 2.50
36
0918006152
ref: 36
SPACER
0918006152
€ 3.00
37
0916006056
ref: 37
WASHER(6.5X18X1)
0916006056
€ 2.00
38
0916107005
ref: 38
WASHER
0916107005
€ 3.00
39
9447506B01019
ref: 39
COVER,COWLING,LOWER,FRONT
9447506B01019
€ 121.50
40
0913905025
ref: 40
SCREW(5X14)
0913905025
€ 2.00
41
0831626055
ref: 41
NUT
0831626055
€ 2.00
42
9458006B00
ref: 42
BRACE,COWLING LWR,R
9458006B00
€ 5.00
43
9459006B00
ref: 43
BRACE,COWLING LWR,L
9459006B00
€ 5.50
44
9449306B00
ref: 44
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
45
0151706128
ref: 45
BOLT
€ 2.50
46
0913906030
ref: 46
SCREW(6X16)
0913906030
€ 3.50
47
0832121064
ref: 47
WASHER,LOCK
0832121064
€ 2.00
48
0831311065
ref: 48
NUT 6MM
0831311065
€ 2.00
49
9455006B00
ref: 49
BRACE,MIRROR,R
9455006B00
€ 19.00
50
9456006B00
ref: 50
BRACE,MIRROR,L
9456006B00
€ 17.00
51
0925008008
ref: 51
PLUG(OD:12)
0925008008
€ 3.50
52
0110706165
ref: 52
BOLT 6X16
0110706165
€ 2.00
53
0832121064
ref: 53
WASHER,LOCK
0832121064
€ 2.00
54
0832131064
ref: 54
WASHER
0832131064
€ 2.00
55
0913906030
ref: 55
SCREW(6X16)
0913906030
€ 3.50
56-1
6861248B00
ref: 56-1
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
56-2
6861248B10
ref: 56-2
E4
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
57
9441927A00
ref: 57
OPT
COVER,HEADLAMP
9441927A00
€ 131.50
