SIGNAL GENERATOR

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

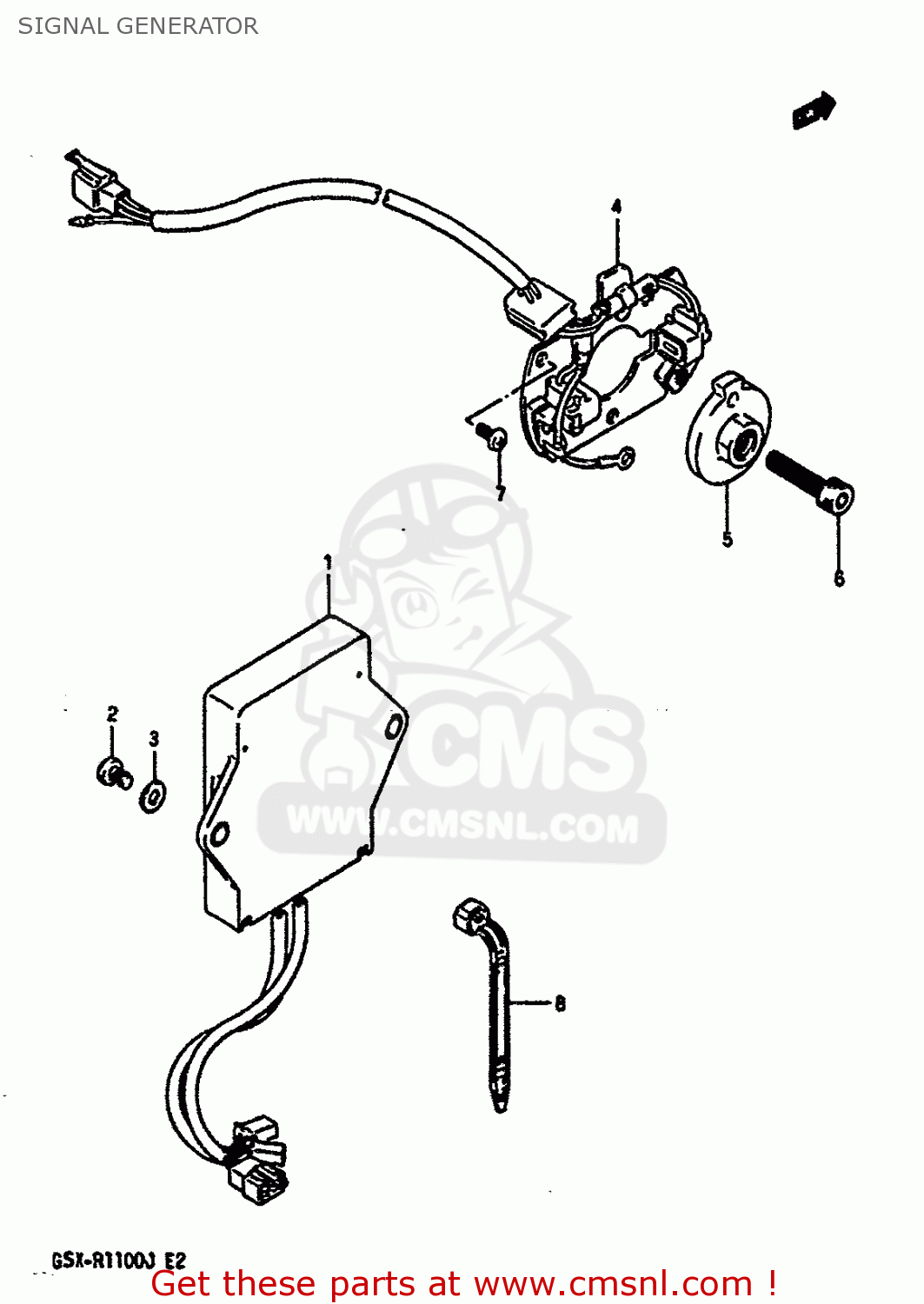

Signal generator diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

SIGNAL GENERATOR GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

SIGNAL GENERATOR GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

3290006B00
ref: 1

IGNITER UNIT

€ 551.00

2

0211206126
ref: 2

SCREW

€ 1.50

3

0832221066
ref: 3

WASHER, LOWER

€ 2.00

4

3311027A00
ref: 4

GENERATOR ASSEMBLY,SIGNAL

€ 253.00

5

3312027A00
ref: 5

ROTOR COMP,SIGNAL

€ 90.50

6

0711008306
ref: 6

BOLT

€ 3.00

7

0211205107
ref: 7

SCREW

€ 2.00

8

0940714403
ref: 8

CLAMP(L:125)

€ 2.50
