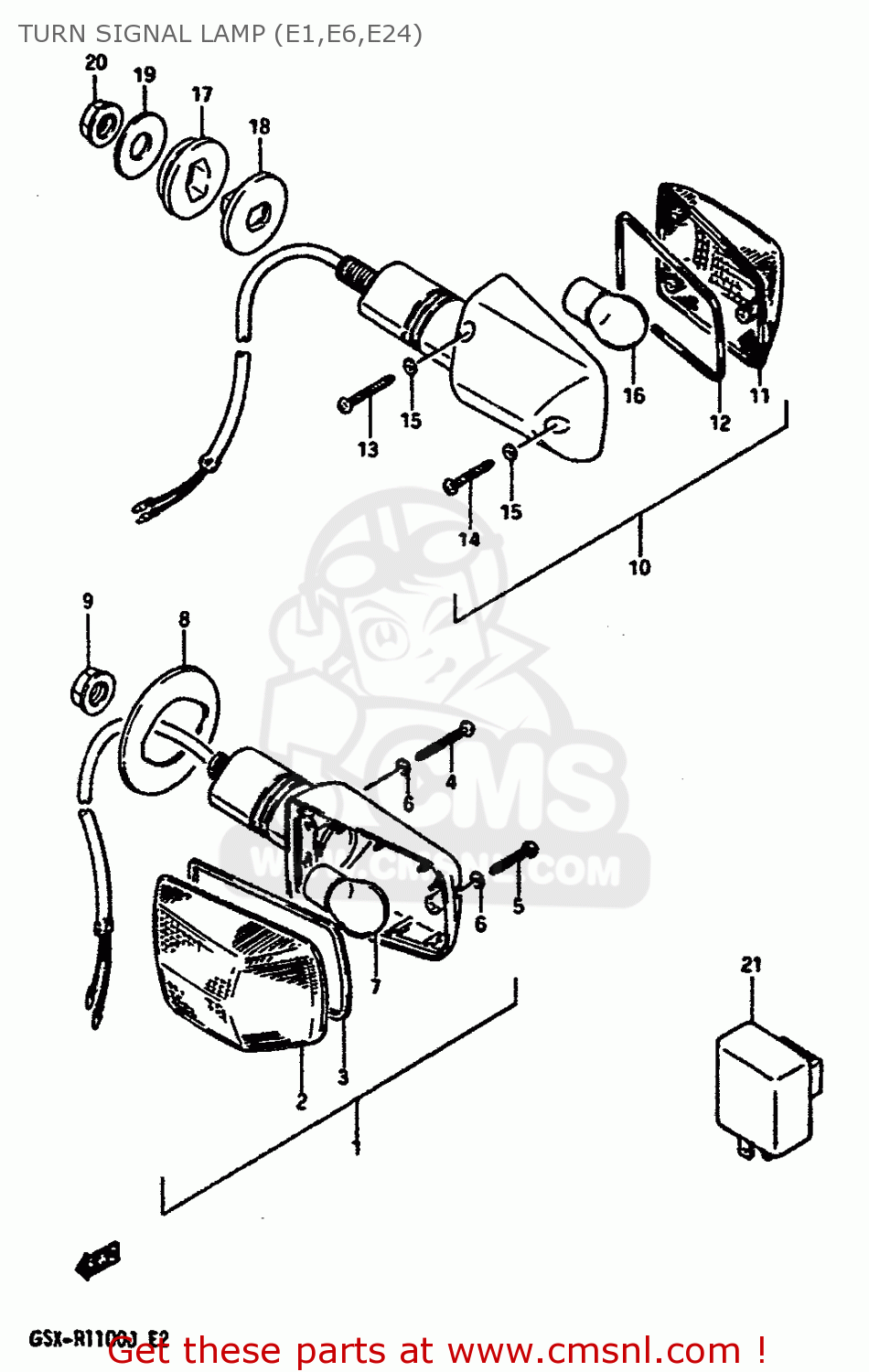

TURN SIGNAL LAMP (E1,E6,E24)

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

Turn signal lamp (e1,e6,e24) diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3560106B02
ref: 1
FROM 35601-06B00

LAMP ASSY,FRONT TURN SIGNAL

€ 88.50

3561227A01
ref: 2
FROM 35612-27A00

LENS,TURNSIGNAL

€ 11.50

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

3572540511
ref: 5

SCREW

€ 1.50

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

0947112006
ref: 7

BULB(12V23W,STANLEY,A4577A)

€ 4.00

3567427A00
ref: 8

GROMMET

€ 13.50

0831626105
ref: 9

NUT

€ 3.50

10-1

3560306B10
ref: 10-1
MODEL G/H

LAMP ASSY,REAR TURN SIGNAL

€ 88.50

10-2

3560306B12
ref: 10-2
MODEL J

LAMP ASSY,REAR TURN SIGNAL

€ 88.50

3561227A01
ref: 11
FROM 35612-27A00

LENS,TURNSIGNAL

€ 11.50

3561327A00
ref: 12

GASKET (NAS)

€ 3.00

3562327A00
ref: 13

SCREW(3X30)

€ 1.50

3572540511
ref: 14

SCREW

€ 1.50

3562727A02
ref: 15

GASKET (NAS)

€ 1.50

0947112006
ref: 16

BULB(12V23W,STANLEY,A4577A)

€ 4.00

3569206B00
ref: 17

CUSHION

€ 4.50

3569506B00
ref: 18

SPACER

€ 4.50

0916010078
ref: 19

WASHER (10.2X27X1.6)

€ 2.00

0831626105
ref: 20

NUT

€ 3.50

3861031310
ref: 21

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

TURN SIGNAL LAMP (E1,E6,E24)

all assemblies
