STAND

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

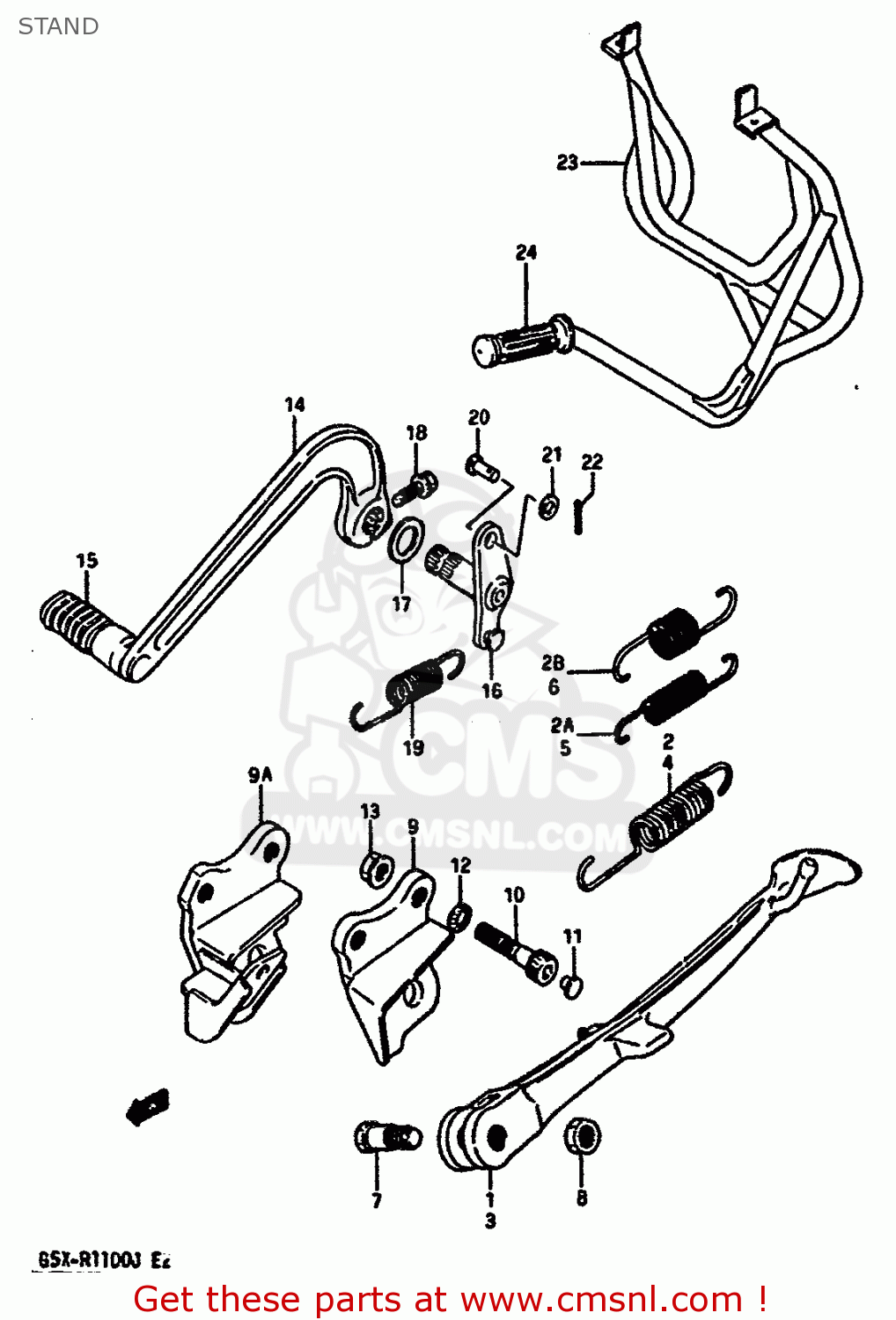

Stand diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

STAND GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
STAND GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
STAND GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4231006B0013L
ref: 1
STAND,PROP
4231006B0013L
€ 60.00
2
0944314040
ref: 2
MODEL G/H
SPRING
0944314040
€ 4.00
2A
0944314038
ref: 2A
MODEL J
SPRING
€ 8.50
2B
0944322006
ref: 2B
MODEL J
SPRING
0944322006
€ 9.50
3-1
4231006B1013L
ref: 3-1
MODEL G E2,E15,E16,E
STAND,PROP (SILVER)
€ 0.00
3-2
4231006B4013L
ref: 3-2
MODEL H E2,E15,E16,E
STAND,PROP (SILVER)
€ 44.00
3-3
4231006B2013L
ref: 3-3
MODEL G E22
STAND,PROP (SILVER)
€ 0.00
3-4
4231006B5013L
ref: 3-4
MODEL H E22
STAND,PROP (SILVER)
4231006B5013L
€ 42.00
4
0944318016
ref: 4
MODEL G/H E2,E15,E16
SPRING
0944318016
€ 21.00
5
0944314030
ref: 5
MODEL G/H E22
SPRING
0944314030
€ 6.00
6
0944322003
ref: 6
MODEL G/H E22
SPRING
0944322003
€ 7.00
7
0911110036
ref: 7
BOLT(10X38)
0911110036
€ 5.50
8
0831022107
ref: 8
NUT
0831022107
€ 2.50
9-1
4233006B0113L
ref: 9-1
MODEL G/H
BRACKET,PROP STAND
€ 30.50
9-2
4233027A1113L
ref: 9-2
MODEL G E2,E15,E16,E
BRACKET, PROP STAND (SILVER)
€ 29.50
9-3
4233027B10
ref: 9-3
MODEL H E2,E15,E16,E
BRACKET,PROP STAND
€ 28.50
9A
4233006B20
ref: 9A
MODEL J
BRACKET,PROP STAND
€ 30.50
10
0711008358
ref: 10
BOLT, FRONT RH
€ 4.50
11
4157504A00
ref: 11
CAP,ENGINE MOUNTING
4157504A00
€ 2.00
12
0916408015
ref: 12
WASHER
0916408015
€ 3.00
13
0831616088
ref: 13
NUT
0831616088
€ 2.50
14-1
4311027A01
ref: 14-1
MODEL G/H
PEDAL,BRAKE
4311027A01
€ 129.00
14-2
4311027A30
ref: 14-2
MODEL J
PEDAL,BRAKE
4311027A30
€ 129.00
15
4315104701
ref: 15
RUBBER,BRAKE PEDAL
4315104701
€ 6.00
16
4312027A00
ref: 16
ARM COMP,BRAKE ROD
4312027A00
€ 28.50
17
4321204A00
ref: 17
WASHER,BRAKE PEDAL
4321204A00
€ 2.00
18-1
0154706207
ref: 18-1
MODEL G
BOLT
0154706207
€ 2.50
18-2
0910306119
ref: 18-2
MODEL H
BOLT
€ 2.50
18-3
0910306072
ref: 18-3
MODEL J
BOLT 6X25
0910306072
€ 2.50
19
0944314044
ref: 19
SPRING
0944314044
€ 4.00
20
0920006037
ref: 20
PIN
0920006037
€ 5.00
21
0832221067
ref: 21
WASHER
0832221067
€ 2.00
22
0411120158
ref: 22
PIN
0411120158
€ 1.50
23
4210027A00
ref: 23
OPT
STAND,CENTER
€ 0.00
24
5721149510
ref: 24
OPT
GRIP,L
5721149510
€ 26.50
