CYLINDER HEAD

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

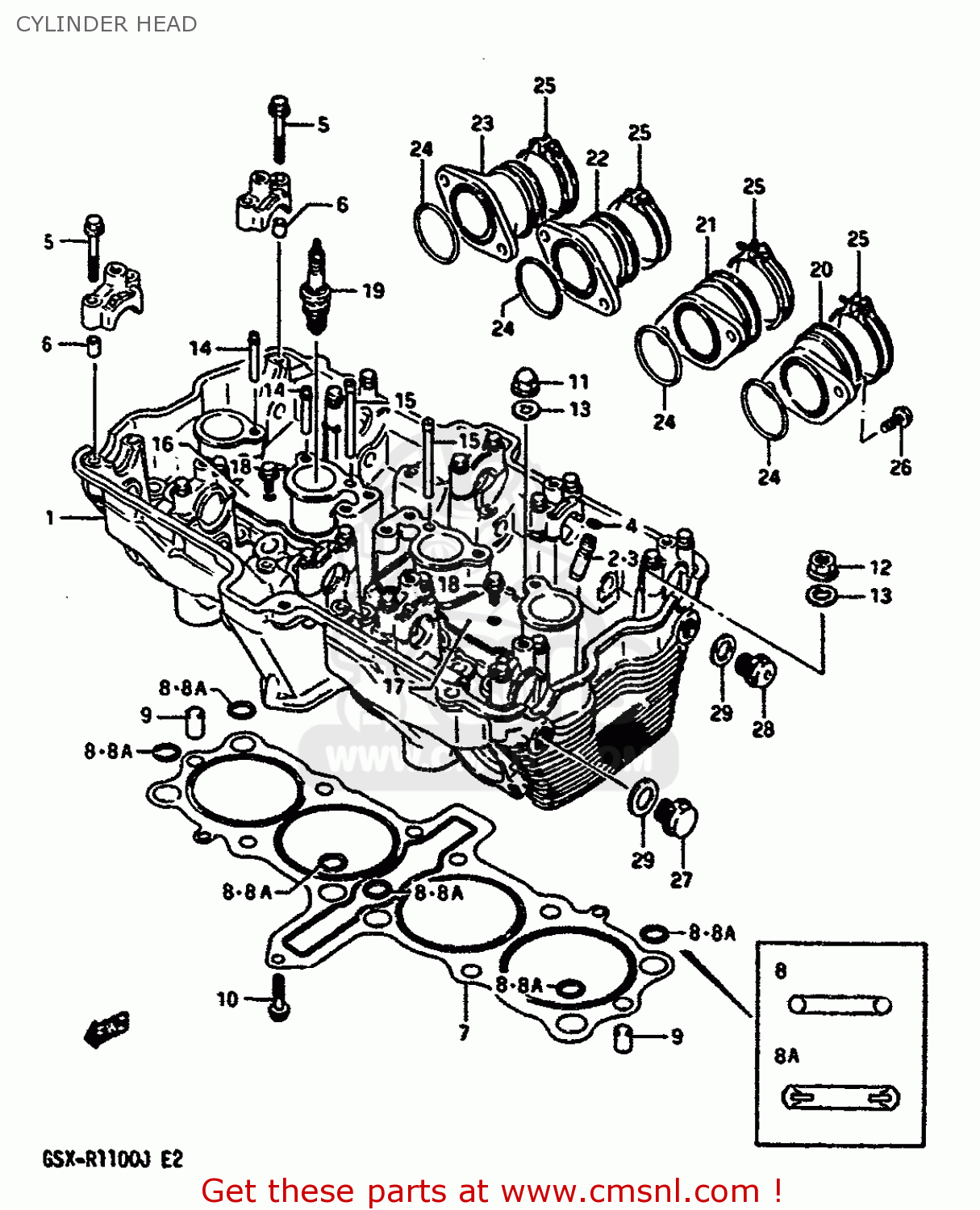

Cylinder head diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CYLINDER HEAD GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1110006B05
ref: 1
HEAD ASSEMBLY,CYLINDER
€ 1,224.00
2
1111527A70
ref: 2
GUIDE,VALVE
1111527A70
€ 43.00
3
1111606B70
ref: 3
GUIDE,VALVE
1111606B70
€ 43.00
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0910306026
ref: 5
BOLT(6X39)
0910306026
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7-1
1114106B00
ref: 7-1
MODEL G/H
GASKET,CYLINDER HEAD (NAS)
1114106B00
€ 72.00
7-2
1114106B11
ref: 7-2
MODEL J
GASKET,CYLINDER HEAD (NAS)
1114106B11
€ 72.00
8
1114327A51
ref: 8
TO 11143-06B00
O RING,HEAD GASKET
1114327A51
€ 8.00
8A
1114306B00
ref: 8A
O RING,HEAD GASKET
1114306B00
€ 8.00
9
0920911006
ref: 9
PIN
€ 16.00
10
0151706254
ref: 10
BOLT
€ 2.50
11
0915910054
ref: 11
NUT
0915910054
€ 7.50
12
0831616106
ref: 12
NUT
€ 2.00
13
0916810031
ref: 13
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
14
1113127A00
ref: 14
PIPE,OIL NO.1
1113127A00
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
1113327A00
€ 7.00
16
1113527A02
ref: 16
PLATE,OIL PIPE,R
1113527A02
€ 4.00
17
1113627A02
ref: 17
PLATE,OIL PIPE,L
1113627A02
€ 4.00
18
0151706128
ref: 18
BOLT
€ 2.50
19-1
0948200365
ref: 19-1
E1,E24,MODEL G E25,E
SPARK PLUG
0948200365
€ 8.00
19-2
0948200371
ref: 19-2
OPT,E1,E24,E25,E34,M
SPARK PLUG
€ 9.00
19-3
0948200366
ref: 19-3
E2,E4,E6,E15,E16,E17
SPARK PLUG (NGK,JR9A)
€ 8.00
19-4
0948200372
ref: 19-4
OPT E2,E4,E6,E15,E16
SPARK PLUG (NGK,JR10A)
0948200372
€ 9.00
20-1
1311006B00
ref: 20-1
PIPE,INTAKE
1311006B00
€ 32.50
20-2
1311006B10
ref: 20-2
E18
PIPE,INTAKE LH
€ 30.00
21-1
1312006B00
ref: 21-1
PIPE,INTAKE
1312006B00
€ 33.50
21-2
1312006B10
ref: 21-2
E18
PIPE,INTAKE ML
€ 43.50
22-1
1313006B00
ref: 22-1
NET,INTAKE
1313006B00
€ 33.50
22-2
1313006B10
ref: 22-2
E18
PIPE,INTAKE MR
€ 43.00
23-1
1314006B00
ref: 23-1
PIPE,INTAKE
1314006B00
€ 33.50
23-2
1314006B10
ref: 23-2
E18
PIPE,INTAKE RH
€ 43.00
24
1311527A01
ref: 24
O RING(D:2.4,ID:39.7)
1311527A01
€ 3.50
25
0940250208
ref: 25
CLAMP
0940250208
€ 5.00
26
0215206165
ref: 26
SCREW
€ 2.00
27
0924714034
ref: 27
PLUG
0924714034
€ 3.50
28
0924714032
ref: 28
PLUG
0924714032
€ 5.00
29
0916814004
ref: 29
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
