REAR FENDER

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

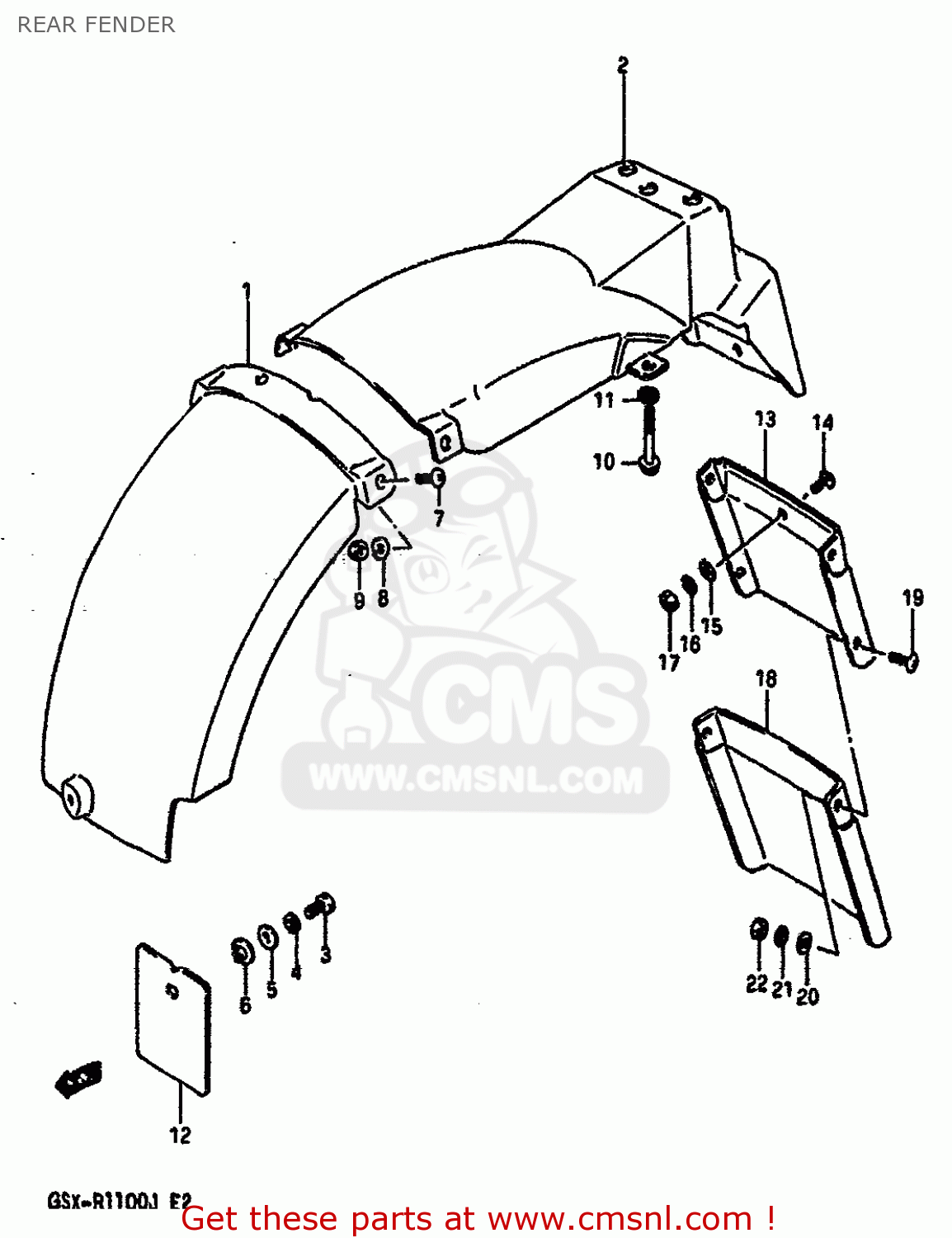

Rear fender diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

REAR FENDER GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
REAR FENDER GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
REAR FENDER GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
6311227A00
ref: 1
BODY,REAR FENDER,FRONT
6311227A00
€ 59.00
2-1
6311306B00
ref: 2-1
FENDER,REAR
6311306B00
€ 83.00
2-2
6311306B20
ref: 2-2
E15,E16,E17,E18,E22
BODY, REAR FENDER REAR
€ 83.00
3
0110706207
ref: 3
BOLT
0110706207
€ 2.00
4
0832121067
ref: 4
WASHER,LOCK
0832121067
€ 2.50
5
0916006007
ref: 5
WASHER
0916006007
€ 2.00
6
0916906038
ref: 6
WASHER
0916906038
€ 2.50
7
0214206166
ref: 7
SCREW
€ 2.50
8
0916006007
ref: 8
WASHER
0916006007
€ 2.00
9
0831921068
ref: 9
NUT 6MM
0831921068
€ 2.00
10
0151708555
ref: 10
BOLT
€ 3.00
11
0916908034
ref: 11
WASHER
0916908034
€ 2.00
12
6341127A00
ref: 12
MUD GUARD,REAR FENDER,FRONT
6341127A00
€ 9.50
13-1
6331127A20
ref: 13-1
E15,E18
EXTENSION
€ 18.00
13-2
6331127A30
ref: 13-2
E16,E17,E22
EXTENSION,REAR FENDER
€ 18.00
14
0214206125
ref: 14
E15,E16,E17,E18,E22
SCREW 6X12
0214206125
€ 2.00
15
0916006007
ref: 15
E15,E16,E17,E18,E22
WASHER
0916006007
€ 2.00
16
0832121066
ref: 16
E15,E16,E17,E18,E22
WASHER,LOCK
0832121066
€ 2.00
17
0831022066
ref: 17
E15,E16,E17,E18,E22
NUT
€ 2.00
18
6333127A20
ref: 18
E15,E18
MUD GUARD
€ 22.50
19
0214206164
ref: 19
E15,E18
SCREW
0214206164
€ 2.50
20
0916006019
ref: 20
E15,E18
WASHER(6.5X16X1.2)
0916006019
€ 1.50
21
0832121067
ref: 21
E15,E18
WASHER,LOCK
0832121067
€ 2.50
22
0831022066
ref: 22
E15,E18
NUT
€ 2.00
