CLUTCH

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

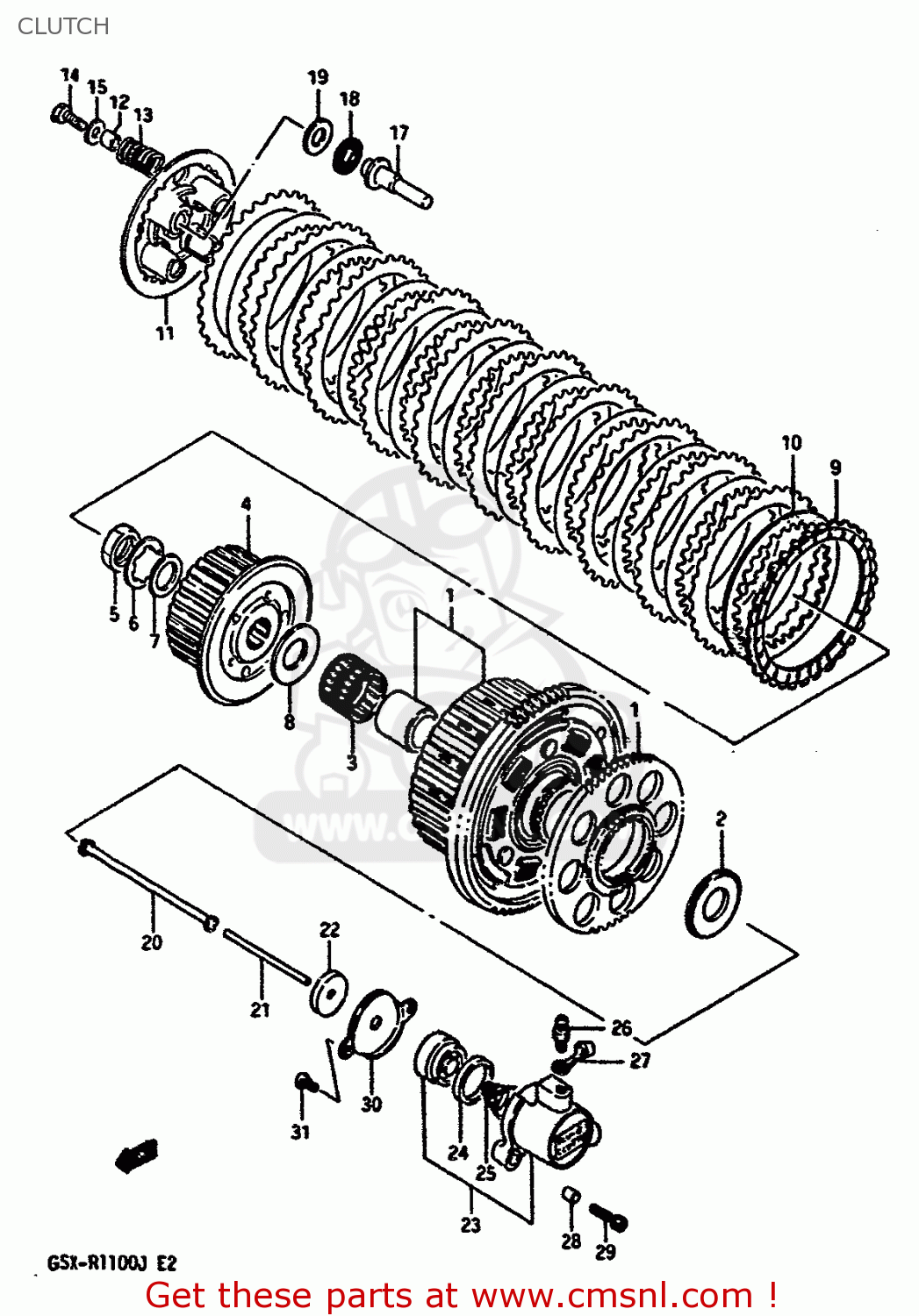

Clutch diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CLUTCH GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CLUTCH GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CLUTCH GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
2120006844
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
2120006844
€ 379.00
2
0916025062
ref: 2
WASHER
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
0926335017
€ 36.50
4-1
2141006B02
ref: 4-1
MODEL G/H
HUB,CLUTCH SLEEVE
2141006B02
€ 112.50
4-2
2141006B03
ref: 4-2
MODEL J
HUB,CLUTCH SLEEVE
€ 112.50
5
0914024007
ref: 5
NUT
0914024007
€ 4.50
6
0916725007
ref: 6
WASHER,LOCK
0916725007
€ 7.50
7
0916424006
ref: 7
WASHER
0916424006
€ 4.00
8
0916025056
ref: 8
WASHER(25X50X2.5)
0916025056
€ 9.50
9-1
2144106B00
ref: 9-1
MODEL G
PLATE,CLUTCH DRIVE (MCA)
2144106B00
€ 18.50
9-2
2144106B01
ref: 9-2
MODEL H/J
PLATE,CLUTCH DRIVE (NAS)
2144106B01
€ 18.50
10
2145106B00
ref: 10
PLATE,CLUTCH DRIVEN (NAS)
2145106B00
€ 10.50
11
2146206B00
ref: 11
DISC,CLUTCH PRESSURE
2146206B00
€ 83.00
12
0918006174
ref: 12
SPACER(6.2X12X14)
0918006174
€ 5.50
13
0944020013
ref: 13
SPRING
0944020013
€ 5.00
14
0110706307
ref: 14
BOLT 6X30
€ 2.50
15
0916006020
ref: 15
WASHER
0916006020
€ 2.00
16-1
2272106B01
ref: 16-1
MODEL G
GEAR,GENERATOR DRIVE
2272106B01
€ 161.50
16-2
2272106B02
ref: 16-2
MODEL H/J
GEAR,GENERATOR DRIVE
€ 161.50
17
2312106B00
ref: 17
PIECE,CLUTCH PUSH
€ 19.50
18
0926315003
ref: 18
BEARING(15X28X2)
0926315003
€ 7.00
19
0916015015
ref: 19
WASHER
€ 4.00
20
2311027A00
ref: 20
ROD,CLUTCH
2311027A00
€ 17.00
21
2311115501
ref: 21
ROD,CLUTCH PUSH,L
2311115501
€ 11.50
22
0928506015
ref: 22
SEAL,OIL(6X34X5.5)
0928506015
€ 8.50
23
2316006B00
ref: 23
CYLINDER,CLUTCH RELEASE
2316006B00
€ 122.50
24
2316306B00
ref: 24
CUP
2316306B00
€ 5.50
25
2316405A00
ref: 25
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
26
5912101A00
ref: 26
BLEEDER
5912101A00
€ 8.50
27
5912201A00
ref: 27
CAP,BLEEDER
5912201A00
€ 4.50
28
0421109129
ref: 28
PIN
0421109129
€ 2.00
29
0711006255
ref: 29
BOLT
0711006255
€ 3.00
30
2311727A02
ref: 30
PLATE,CLUTCH PUSH ROD
€ 6.50
31
0211206106
ref: 31
SCREW
€ 1.50
