SPEEDOMETER

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

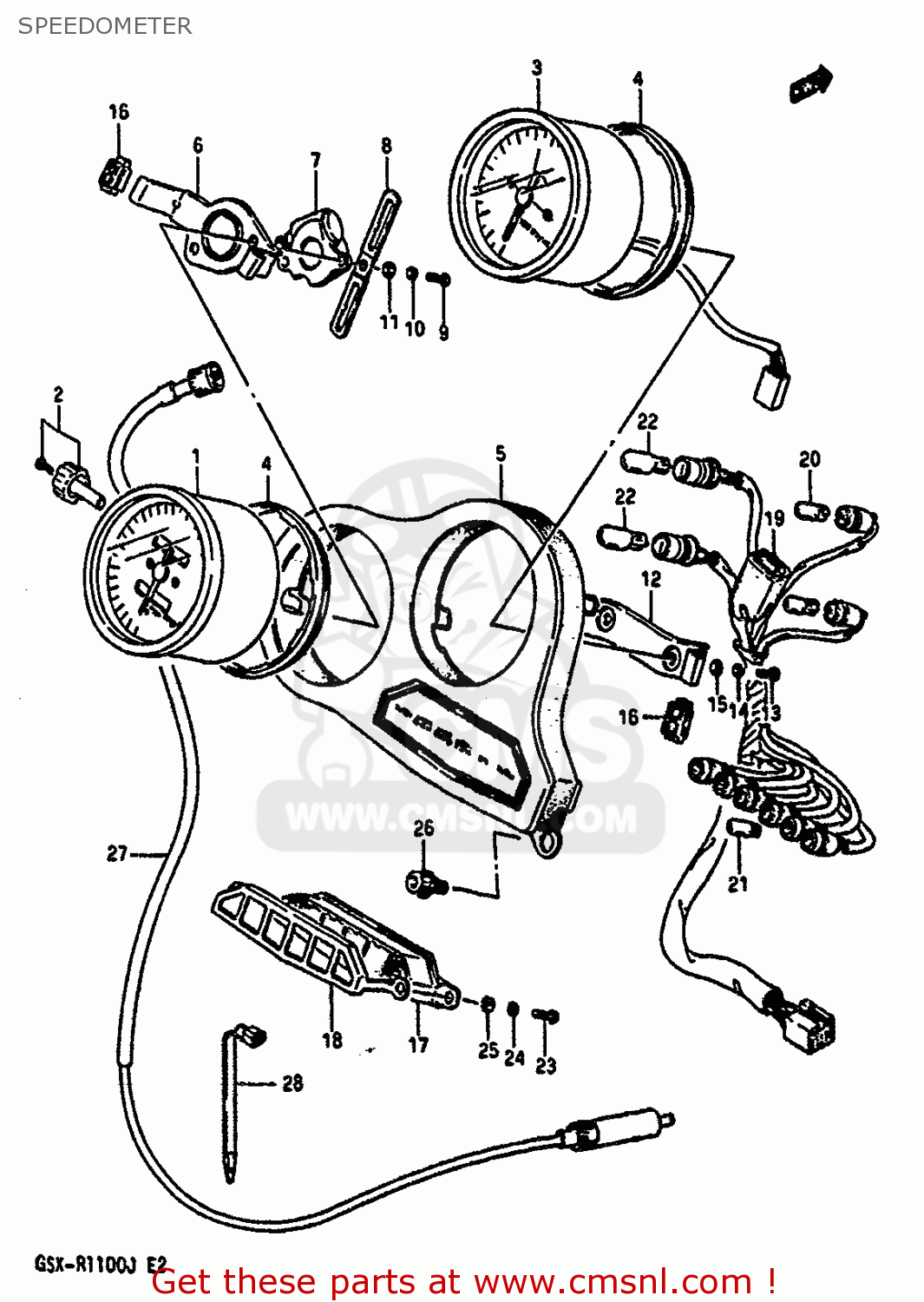

Speedometer diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

SPEEDOMETER GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
SPEEDOMETER GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
SPEEDOMETER GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3411006B10
ref: 1-1
SPEEDOMETER (KILO)
3411006B10
€ 341.50
1-2
3411006B20
ref: 1-2
SPEEDOMETER (MILE/KILO)
€ 341.50
2
3412404A30
ref: 2
KNOB,TRIP
3412404A30
€ 6.50
3-1
3421006B10
ref: 3-1
TACHOMETER
3421006B10
€ 492.50
3-2
3421006B60
ref: 3-2
E18
TACHOMETER (R/MIN)
3421006B60
€ 463.50
3-3
3421006B40
ref: 3-3
E24
TACHOMETER (RPM)
€ 492.50
4
3428806B10
ref: 4
CUSHION
3428806B10
€ 17.00
5-1
3495006B10
ref: 5-1
MODEL G/H
BRACKET,METER
€ 112.50
5-2
3495006B50
ref: 5-2
MODEL J,MODEL G/H/J
BRACKET,METER
3495006B50
€ 166.50
6
3411104A30
ref: 6
PLATE,SPEEDOMETER
€ 35.00
7
3413104A00
ref: 7
BOX,GEAR
3413104A00
€ 144.00
8
3638506B10
ref: 8
CLAMP
€ 0.00
9
0211204124
ref: 9
SCREW
€ 1.50
10
0832121045
ref: 10
LOCK WASHER
€ 2.00
11
0832221045
ref: 11
WASHER
€ 5.00
12-1
3421106B10
ref: 12-1
PLATE,TACHOMETER
3421106B10
€ 36.50
12-2
3421106B60
ref: 12-2
E18
PLATE,TACHOMETER
€ 53.50
13
0211204085
ref: 13
SCREW
0211204085
€ 2.00
14
0832121045
ref: 14
LOCK WASHER
€ 2.00
15
0832221045
ref: 15
WASHER
€ 5.00
16
3418904A30
ref: 16
CUSHION
3418904A30
€ 6.00
17-1
3638004A30
ref: 17-1
FROM 36380-06B10
BOX,PILOT LAMP
3638004A30
€ 20.00
17-2
3638006B70
ref: 17-2
E17
BOX,PILOT LAMP
3638006B70
€ 44.50
17-3
3638007B10
ref: 17-3
MODEL J E4,E6,E15,E1
BOX,PILOT LAMP
€ 44.50
18
3638304A30
ref: 18
PLATE,PILOT LAMP
3638304A30
€ 10.00
19-1
3417006B10
ref: 19-1
MODEL G/H
SOCKET,METER
3417006B10
€ 87.00
19-2
3417006B50
ref: 19-2
MODEL J,MODEL G/H/J
SOCKET,METER
€ 87.00
19-3
3417006B60
ref: 19-3
E18
SOCKET,METER
€ 87.00
20-1
0947112103
ref: 20-1
MODEL G/H
BULB(12V3W,T6.5)
0947112103
€ 2.50
20-2
0947112103
ref: 20-2
MODEL J,MODEL G/H/J
BULB(12V3W,T6.5)
0947112103
€ 2.50
21
0947112108
ref: 21
BULB(12V1.7W,T6.5)
0947112108
€ 2.00
22
0947112028
ref: 22
BULB(12V3.4W,T10)
0947112028
€ 3.50
23
0211204124
ref: 23
SCREW
€ 1.50
24
0832121045
ref: 24
LOCK WASHER
€ 2.00
25
0832221045
ref: 25
WASHER
€ 5.00
26
0712006125
ref: 26
BOLT
€ 3.50
27
3491006B00
ref: 27
CABLE ASSY,SPEEDOMETER
3491006B00
€ 25.50
28
0940714403
ref: 28
CLAMP(L:125)
0940714403
€ 2.50
