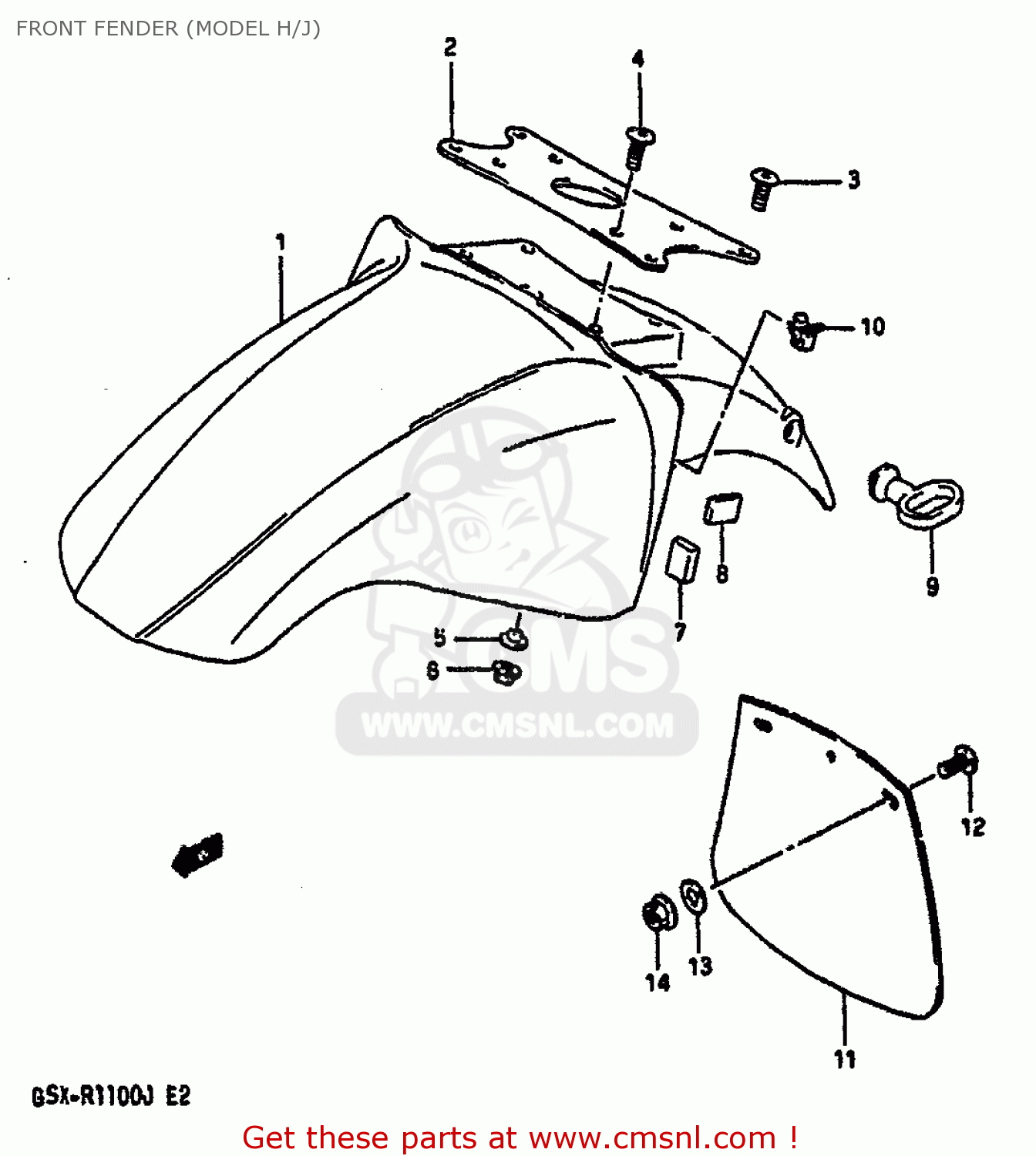

FRONT FENDER (MODEL H/J)

ref

part #

description

quantity

1-1

5311128A2122P
ref: 1-1
MODEL H/J

FENDER,FRONT

€ 210.00

1-2

5311128A3022P
ref: 1-2
MODEL H E15,E24

FENDER,FRONT (RED)

€ 0.00

1-3

5311128A3122P
ref: 1-3
MODEL J E15,E24

FENDER,FRONT (RED)

€ 0.00

1-4

5311128A5022P
ref: 1-4
MODEL H E22

FENDER,FRONT (RED)

€ 210.00

1-5

5311128A5122P
ref: 1-5
MODEL J E22

FENDER,FRONT

€ 210.00

1-6

5311128A2122R
ref: 1-6
MODEL H

FENDER,FRONT

€ 201.50

1-7

5311128A2133N
ref: 1-7
MODEL J

FENDER,FRONT

€ 201.50

1-8

5311128A2113Z
ref: 1-8
MODEL J

FENDER,FRONT (BLACK)

€ 201.50

1-9

5311128A3022R
ref: 1-9
MODEL H E15,E24

FENDER,FRONT (WHITE)

€ 0.00

1-10

5311128A3133N
ref: 1-10
MODEL J E15,E24

FENDER,FRONT (WHITE)

€ 0.00

1-11

5311128A3113Z
ref: 1-11
MODEL J E15,E24

FENDER,FRONT (BLACK)

€ 0.00

1-12

5311128A5022R
ref: 1-12
MODEL H E22

FENDER,FRONT (WHITE)

€ 201.50

1-13

5311128A5133N
ref: 1-13
MODEL J E22

FENDER,FRONT

€ 201.50

1-14

5311128A5113Z
ref: 1-14
MODEL J E22

FENDER,FRONT (BLACK)

€ 201.50

2

5311406B00
ref: 2

BRACE,FRONT FENDER

€ 20.50

3

0913908007
ref: 3

SCREW(8X16)

€ 4.50

4

0913905025
ref: 4

SCREW(5X14)

€ 2.00

5

0916905008
ref: 5

WASHER

€ 3.00

6

0831931056
ref: 6

NUT

€ 3.00

7-1

5343128A00
ref: 7-1
MODEL H

CUSHION,FRONT FENDER,S

€ 5.00

7-2

5314528A00
ref: 7-2
MODEL J

CUSHION,FRONT FENDER,FRONT

€ 5.00

8

5343128A10
ref: 8

CUSHION,FR FENDER SIDE

€ 3.50

9

5862121203A
ref: 9

GUIDE,CABLE

€ 7.50

10

0940305305
ref: 10

CLIP

€ 3.00

11

5331106B00
ref: 11
E15,E24

MUD GUARD

€ 16.50

12

0214205128
ref: 12
E15,E24

SCREW

€ 1.50

13

0916005017
ref: 13
E15,E24

WASHER (5.5X16X1.2)

€ 2.50

14

0831626056
ref: 14
E15,E24

NUT

€ 2.00

all assemblies
