CAM CHAIN

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

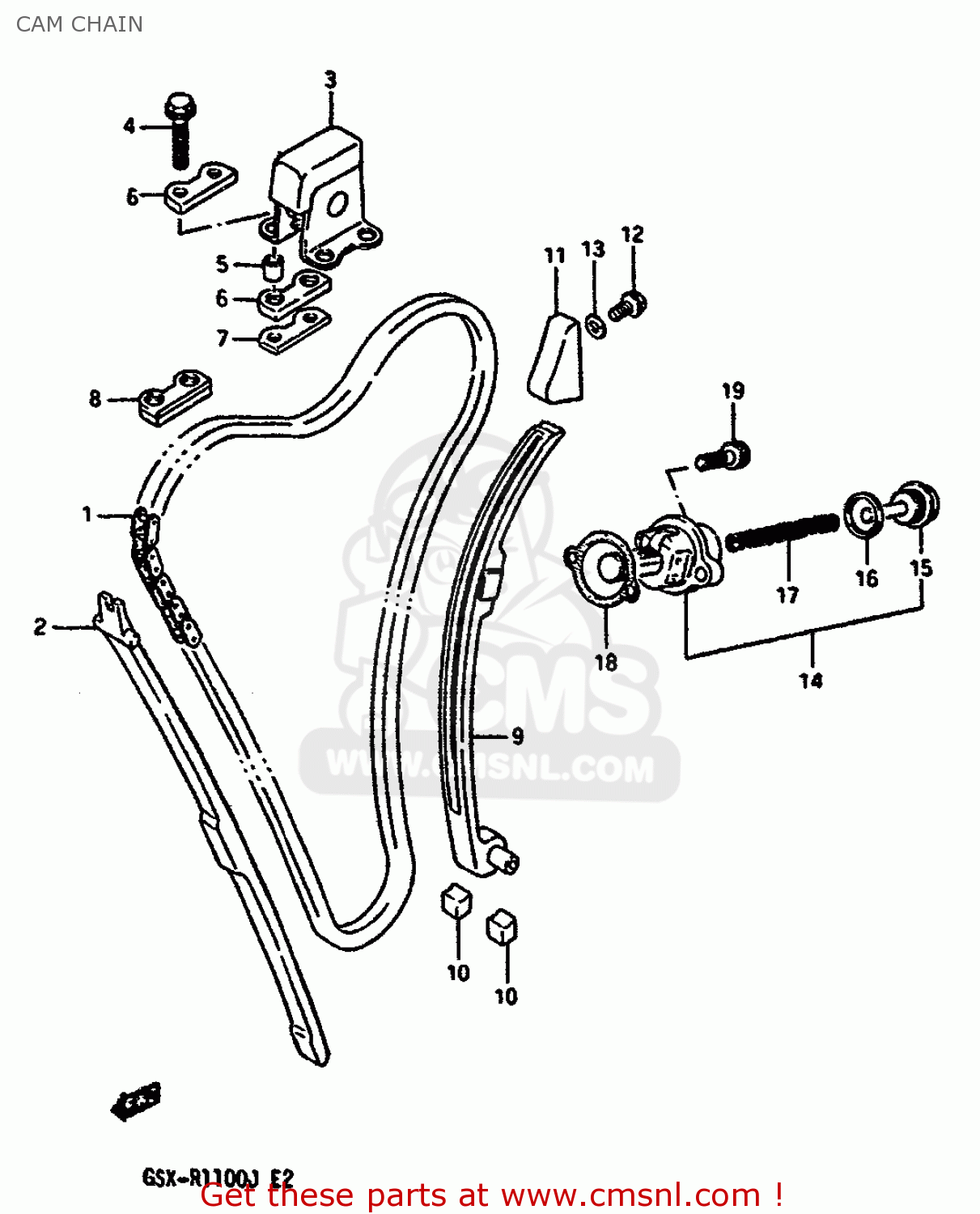

Cam chain diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1276006B00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 114.50

1277106B01
ref: 2

GUIDE,CAM CHAIN NO.1

€ 37.00

1278006B00
ref: 3

IDLER,CAM CHAIN

€ 606.50

0151706307
ref: 4

BOLT

€ 2.00

0918006167
ref: 5

SPACER (6,8X10X9.4)

€ 2.50

6-1

1278827A00
ref: 6-1

GUIDE,CAM CHAIN

€ 15.00

6-2

1278827A00
ref: 6-2

GUIDE,CAM CHAIN

€ 15.00

1278906B00
ref: 7

PLATE,CAM CHAIN IDLER

€ 2.00

1278806B10
ref: 8

GUIDE,CAM CHAIN

€ 14.50

1281006B02
ref: 9

TENSIONER,CAM CHAIN

€ 66.00

1281434200
ref: 10

CUSHION,CAM CHAIN TENSIONER

€ 6.50

1279106B01
ref: 11

GUIDE,CAM CHAIN NO.2

€ 59.00

0151706105
ref: 12

BOLT

€ 2.50

0916806023
ref: 13

GASKET(5.8X13X1.2) (NAS)

€ 2.00

1283006B00
ref: 14

ADJUSTER ASSEMBLY,TENSIONER

€ 622.00

1283427A00
ref: 15

PLUG

€ 20.50

1283227A00
ref: 16

GASKET (NAS)

€ 5.50

1283306B00
ref: 17

SPRING

€ 17.00

1283727A00
ref: 18

GASKET,TENSIONER ADJUSTER (NAS)

€ 8.50

0711006255
ref: 19

BOLT

€ 3.00
