CLUTCH MASTER CYLINDER

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

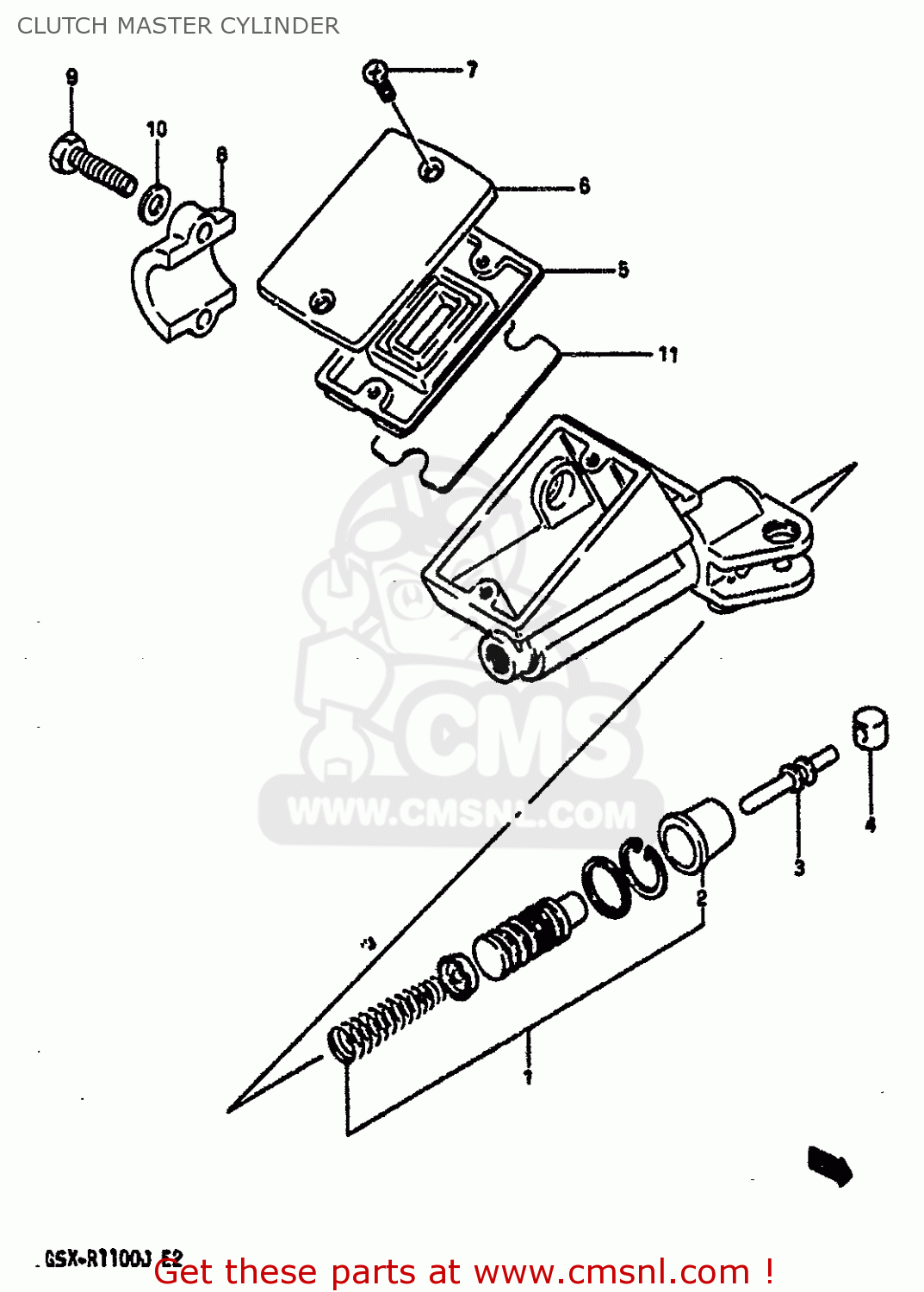

Clutch master cylinder diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CLUTCH MASTER CYLINDER GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CLUTCH MASTER CYLINDER GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

0

5980027A40
ref: 0

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 301.00

1

5980008810
ref: 1

PISTON & CUP SET

€ 36.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5987108A00
ref: 3

ROD,PUSH

€ 5.50

4

5989208A00
ref: 4

BUSH

€ 5.50

5

5966749460
ref: 5

5966749460

6

5966904A10
ref: 6

CAP

€ 30.00

7

6968949300
ref: 7

SCREW

€ 1.50

8

5967116700
ref: 8

HOLDER,MASTER CYLINDER

€ 18.50

9

0110706255
ref: 9

BOLT

€ 2.50

10

0832221064
ref: 10

WASHER

€ 2.00

11

5966405C00
ref: 11

FLOAT

€ 6.50
