CARBURETOR (MODEL J)

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

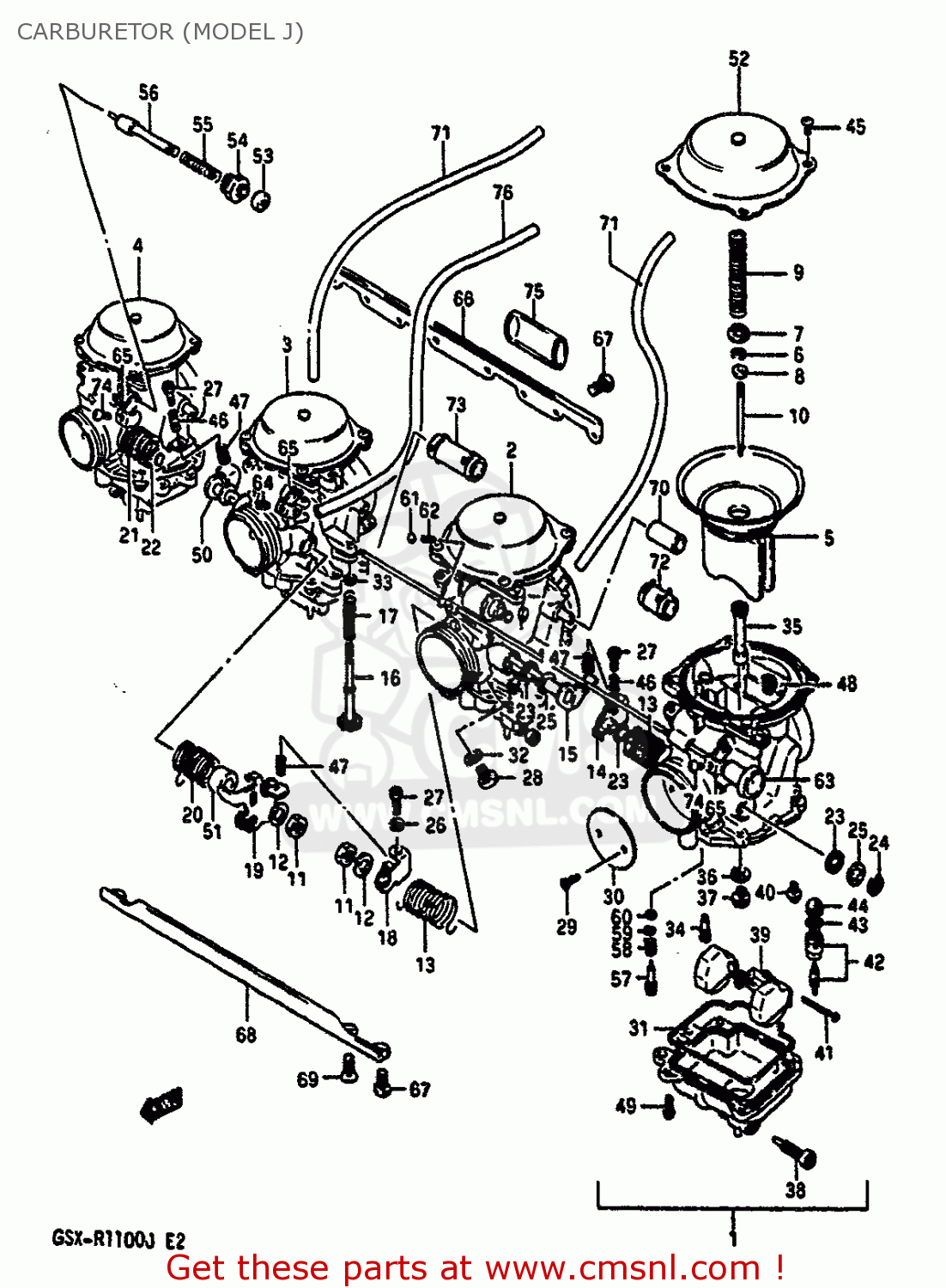

Carburetor (model j) diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CARBURETOR (MODEL J) GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CARBURETOR (MODEL J) GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CARBURETOR (MODEL J) GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1320106B60
ref: 1-1
CARBURETOR ASSY,LH
€ 376.00
1-2
1320106B80
ref: 1-2
E18
CARBURETOR ASSY,LH
€ 0.00
1-3
1320106B90
ref: 1-3
E22
CARBURETOR ASSY,LH
€ 376.00
1-4
1320107B00
ref: 1-4
E39
CARBURETOR ASSY,LH
€ 0.00
2-1
1320206B60
ref: 2-1
CARBURETOR ASSY,ML
€ 376.00
2-2
1320206B80
ref: 2-2
E18
CARBURETOR ASSY,ML
€ 0.00
2-3
1320206B90
ref: 2-3
E22
CARBURETOR ASSY,ML
€ 376.00
2-4
1320207B00
ref: 2-4
E39
CARBURETOR ASSY,ML
€ 376.00
3-1
1320306B60
ref: 3-1
CARBURETOR ASSY,MR
€ 376.00
3-2
1320306B80
ref: 3-2
E18
CARBURETOR ASSY,MR
€ 0.00
3-3
1320306B90
ref: 3-3
E22
CARBURETOR ASSY,MR
€ 376.00
3-4
1320307B00
ref: 3-4
E39
CARBURETOR ASSY,MR
€ 376.00
4-1
1320406B60
ref: 4-1
CARBURETOR ASSY,RH
€ 376.00
4-2
1320406B80
ref: 4-2
E18
CARBURETOR ASSY,RH
€ 0.00
4-3
1320406B90
ref: 4-3
E22
CARBURETOR ASSY,RH
€ 376.00
4-4
1320407B00
ref: 4-4
E39
CARBURETOR ASSY,RH
€ 376.00
5-1
1350006B00
ref: 5-1
DIAPHRAGM ASSY
1350006B00
€ 141.00
5-2
1350006B31
ref: 5-2
E18
DIAPHRAGM ASSY
€ 141.00
5-3
1350048B00
ref: 5-3
E39
DIAPHRAGM,CARBURETOR
€ 180.00
6
1339410010
ref: 6
CLIP
1339410010
€ 4.50
7
1338242A00
ref: 7
RING
1338242A00
€ 3.50
8
1338747010
ref: 8
RING
1338747010
€ 7.50
9
1341742A00
ref: 9
SPRING
1341742A00
€ 6.00
10-1
1338306B00
ref: 10-1
NEEDLE,JET
1338306B00
€ 17.00
10-2
1338306B20
ref: 10-2
E18
NEEDLE,JET (5D36-3)
€ 0.00
11
0831021086
ref: 11
ML,MR
NUT
€ 1.50
12
1360647070
ref: 12
ML,MR
WASHER
1360647070
€ 3.00
13
1357328A10
ref: 13
LH,ML
SPRING
€ 0.00
14
1355028A30
ref: 14
LH
SHAFT ASSEMBLY
€ 0.00
15
1355028A00
ref: 15
ML
SHAFT ASSEMBLY
€ 0.00
16
1356728A10
ref: 16
MR
ADJUSTER
€ 0.00
17
1327128A10
ref: 17
MR
SPRING
€ 6.00
18
1355328A00
ref: 18
ML
LEVER
€ 0.00
19
1355528A00
ref: 19
MR
LEVER ASSEMBLY
€ 0.00
20
1357328A00
ref: 20
MR
SPRING
€ 0.00
21
1357328A20
ref: 21
RH
SPRING
€ 0.00
22
1355028A20
ref: 22
RH
SHAFT ASSEMBLY
€ 0.00
23
1365151010
ref: 23
SEAL
1365151010
€ 4.00
24
1361744080
ref: 24
LH,RH
E RING
1361744080
€ 3.50
25
1355747070
ref: 25
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
26
1358295216
ref: 26
ML
NUT,THROTTLE ROD
1358295216
€ 6.50
27
1326752012
ref: 27
LH,ML,RH
SCREW
1326752012
€ 3.00
28
1360573000
ref: 28
SCREW
1360573000
€ 10.50
29
1360442A00
ref: 29
SCREW
€ 3.50
30-1
1355106B00
ref: 30-1
VALVE,THROTTLE (130)
€ 0.00
30-2
1355106B10
ref: 30-2
E18
VALVE,THROTTLE (125)
€ 0.00
31
1325142A00
ref: 31
O RING,FLOAT CHAMBER
1325142A00
€ 7.50
32
1324978100
ref: 32
WASHER
1324978100
€ 4.00
33
1343247090
ref: 33
MR
WASHER
1343247090
€ 2.50
34-1
0949242010
ref: 34-1
JET,PILOT(42.5)
0949242010
€ 8.50
34-2
0949232006
ref: 34-2
E18
JET,PILOT(32.5)
0949232006
€ 8.50
35-1
0949400536
ref: 35-1
JET,NEEDLE (O-9)
0949400536
€ 17.50
35-2
0949400535
ref: 35-2
E18
JET,NEEDLE (P-2)
0949400535
€ 19.50
36
1333244080
ref: 36
WASHER,NEEDLE NOZZLE
€ 2.50
37-1
0949126011
ref: 37-1
JET,MAIN(130)
0949126011
€ 11.50
37-2
0949125011
ref: 37-2
E22
JET,MAIN(127.5)
0949125011
€ 10.00
38
1324728A00
ref: 38
SCREW
1324728A00
€ 7.00
39
1325028A00
ref: 39
FLOAT
1325028A00
€ 33.00
40
1360243410
ref: 40
SCREW
1360243410
€ 2.50
41
1325492311
ref: 41
PIN,FLOAT
1325492311
€ 2.00
42
1337044500
ref: 42
VALVE ASSY,NEEDLE
1337044500
€ 40.50
43
1337444080
ref: 43
O-RING,NEEDLE VALVE
1337444080
€ 6.00
44
1337684110
ref: 44
FILTER
€ 6.50
45
0211204085
ref: 45
SCREW
0211204085
€ 2.00
46
1327128A00
ref: 46
LH,RH
SPRING
1327128A00
€ 4.00
47
1326896110
ref: 47
LH,ML,RH
SPRING,THROTTLE SCREW
€ 4.50
48-1
0949330003
ref: 48-1
JET,AIR(150)
0949330003
€ 13.00
48-2
0949325001
ref: 48-2
E18
JET,AIR(125)
€ 11.50
49
1360227A10
ref: 49
SCREW
€ 1.50
50
1355028A10
ref: 50
MR
SHAFT ASSEMBLY
€ 0.00
51
1357428A00
ref: 51
MR
RING
1357428A00
€ 4.50
52
1350228A00
ref: 52
COVER,DIAPHRAGM
€ 35.00
53
1368231210
ref: 53
CAP,STARTER VALVE
1368231210
€ 5.00
54
1341844080
ref: 54
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
55
1341743010
ref: 55
SPRING
1341743010
€ 3.50
56
1341105320
ref: 56
PLUNGER ASSY
1341105320
€ 18.00
57
1327947070
ref: 57
EXCEPT E18
SCREW,PILOT
1327947070
€ 11.50
58
1326847070
ref: 58
EXCEPT E18
SPRING
1326847070
€ 5.00
59
1329129900
ref: 59
EXCEPT E18
WASHER
1329129900
€ 2.00
60
1329529900
ref: 60
EXCEPT E18
O RING,PILOT AIR SCREW
1329529900
€ 4.00
61
1359693010
ref: 61
BALL,CARBURETOR
1359693010
€ 3.50
62
1343406B00
ref: 62
SPRING
€ 6.50
63
1341028A00
ref: 63
SHAFT ASSEMBLY
€ 28.00
64
1360549330
ref: 64
SCREW
1360549330
€ 5.50
65
1342228A00
ref: 65
LEVER
€ 7.50
66
1362819C10
ref: 66
PLATE
€ 19.50
67
0211205128
ref: 67
SCREW
€ 2.50
68
1362819C00
ref: 68
PLATE
€ 21.00
69
0212205148
ref: 69
SCREW
€ 2.00
70
1368349160
ref: 70
L:400 18
HOSE,CARBURETOR
€ 26.00
71
1368428A00
ref: 71
ML,L:425 400 MR,L:42
HOSE
€ 13.00
72
1368027A00
ref: 72
HOSE SET (3X5X18)
€ 6.00
73
1368028A00
ref: 73
HOSE ASSY
1368028A00
€ 6.00
74
1360534390
ref: 74
SCREW
€ 3.50
75
1368428A10
ref: 75
HOSE
€ 6.50
76
1368306A20
ref: 76
HOSE
€ 6.50
