COWLING (MODEL J,9HD)

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

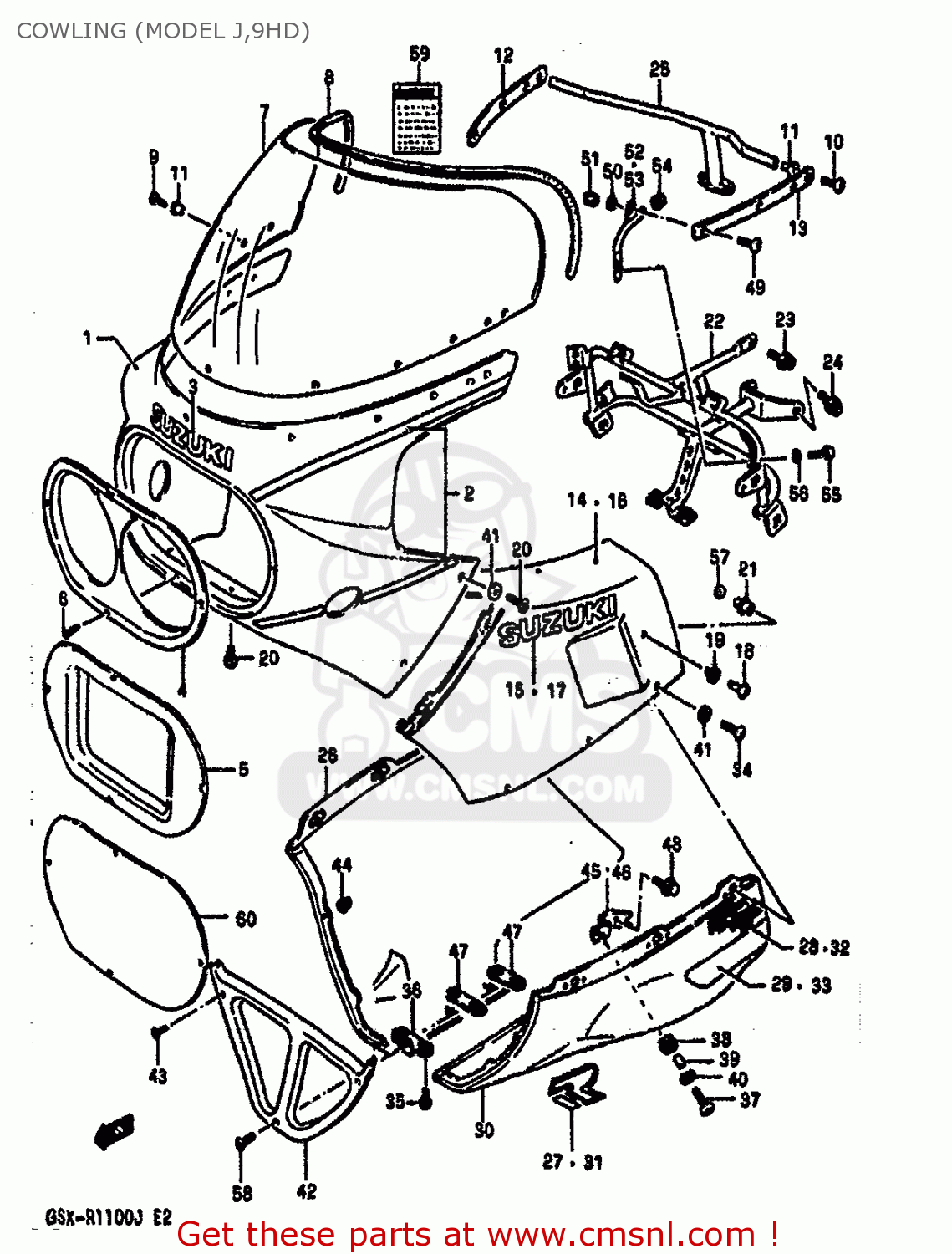

Cowling (model j,9hd) diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

COWLING (MODEL J,9HD) GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL J,9HD) GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL J,9HD) GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
9440006B409HD
ref: 1-1
BODY ASSEMBLY,COWLING
9440006B409HD
€ 723.50
1-2
9440006B509HD
ref: 1-2
E18
BODY ASSY,COWLING (BLACK/RED)
€ 723.50
2
6818006B009HD
ref: 2
TAPE SET,COWLING,UPPER
€ 0.00
3
6827104A0022R
ref: 3
EMBLEM,COWLING,UPPER (W)
6827104A0022R
€ 12.00
4
9443527A0013Z
ref: 4
COVER,COWLING,FRONT
9443527A0013Z
€ 35.00
5
9443527A2013Z
ref: 5
E18
COVER,FRONT (BLACK)
9443527A2013Z
€ 42.00
6
0354104125
ref: 6
SCREW
0354104125
€ 1.50
7-1
9461106B01
ref: 7-1
WINDSCREEN
€ 457.50
7-2
9461128A00
ref: 7-2
OPT HARD COATING
SCREEN,WIND (SMOKE)
€ 457.50
8-1
9463127A00
ref: 8-1
MOLDING,SCREEN
9463127A00
€ 15.00
8-2
9463127A10
ref: 8-2
E17
MOLDING
€ 14.00
9
0913905025
ref: 9
SCREW(5X14)
0913905025
€ 2.00
10
0913905032
ref: 10
SCREW(5X18)
0913905032
€ 2.50
11
9461927A00
ref: 11
NUT,COWLING SCREEN
9461927A00
€ 6.50
12
9452927A00
ref: 12
PLATE,RR VIEW MIRROR,R
9452927A00
€ 6.00
13
9453927A00
ref: 13
PLATE,RR VIEW MIRROR,L
9453927A00
€ 4.50
14-1
9443006B409HD
ref: 14-1
COVER,SIDE RH (BLACK/RED)
9443006B409HD
€ 319.00
14-2
9443006B509HD
ref: 14-2
E39
COVER COMP,COWLING SIDE,RIGHT
€ 0.00
15
681124340022R
ref: 15
EMBLEM
681124340022R
€ 9.50
16-1
9444006B409HD
ref: 16-1
COVER,SIDE LH (BLACK/RED)
9444006B409HD
€ 247.00
16-2
9444006B509HD
ref: 16-2
E39
COVER COMP,COWLING SIDE,LEFT
€ 0.00
17
681124340022R
ref: 17
EMBLEM
681124340022R
€ 9.50
18
0913906027
ref: 18
SCREW(6X12)
0913906027
€ 3.00
19
0916906033
ref: 19
WASHER
0916906033
€ 1.50
20
0913906030
ref: 20
SCREW(6X16)
0913906030
€ 3.50
21
9457004A00
ref: 21
CUSHION,COWLING
9457004A00
€ 12.50
22
9451006B00
ref: 22
BRACE,COWLING FR
9451006B00
€ 116.50
23
0712008205
ref: 23
BOLT
0712008205
€ 3.00
24
0712008165
ref: 24
BOLT
€ 3.00
25
9453006B00
ref: 25
BRACE,COWLING BODY RR
9453006B00
€ 38.50
26
9447006B409HD
ref: 26
COVER COMP,COWLING,LOWER
9447006B409HD
€ 555.00
27
6819106B007JJ
ref: 27
EMBLEM,COWLING,UNDER
€ 15.50
28
6819206B002ND
ref: 28
EMBLEM
€ 0.00
29
6819506B002HD
ref: 29
TAPE,COWLING
6819506B002HD
€ 15.50
30
9448006B409HD
ref: 30
COVER COMP,COWLING,LOWER
9448006B409HD
€ 555.00
31
6819106B007JJ
ref: 31
EMBLEM,COWLING,UNDER
€ 15.50
32
6819206B002HD
ref: 32
EMBLEM,COWLING,UNDER
6819206B002HD
€ 9.50
33
6827506B002HD
ref: 33
TAPE
€ 18.50
34
0913906030
ref: 34
SCREW(6X16)
0913906030
€ 3.50
35
0913906039
ref: 35
SCREW(6X16)
0913906039
€ 2.50
36
9449006B00
ref: 36
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
37
0913906028
ref: 37
SCREW(6X20)
0913906028
€ 3.50
38
0932009016
ref: 38
CUSHION
0932009016
€ 2.50
39
0918006152
ref: 39
SPACER
0918006152
€ 3.00
40
0916006056
ref: 40
WASHER(6.5X18X1)
0916006056
€ 2.00
41
0916107005
ref: 41
WASHER
0916107005
€ 3.00
42
9447506B0113Z
ref: 42
COVER,COWLING,LOWER,FRONT
9447506B0113Z
€ 121.50
43
0913905025
ref: 43
SCREW(5X14)
0913905025
€ 2.00
44
0831626055
ref: 44
NUT
0831626055
€ 2.00
45
9458006B00
ref: 45
BRACE,COWLING LWR,R
9458006B00
€ 5.00
46
9459006B00
ref: 46
BRACE,COWLING LWR,L
9459006B00
€ 5.50
47
9449306B00
ref: 47
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
48
0151706128
ref: 48
BOLT
€ 2.50
49
0913906030
ref: 49
SCREW(6X16)
0913906030
€ 3.50
50
0832121064
ref: 50
WASHER,LOCK
0832121064
€ 2.00
51
0831311065
ref: 51
NUT 6MM
0831311065
€ 2.00
52
9455006B00
ref: 52
BRACE,MIRROR,R
9455006B00
€ 19.00
53
9456006B00
ref: 53
BRACE,MIRROR,L
9456006B00
€ 17.00
54
0925008008
ref: 54
PLUG(OD:12)
0925008008
€ 3.50
55
0110706165
ref: 55
BOLT 6X16
0110706165
€ 2.00
56
0832121064
ref: 56
WASHER,LOCK
0832121064
€ 2.00
57
0832131064
ref: 57
WASHER
0832131064
€ 2.00
58
0913906030
ref: 58
SCREW(6X16)
0913906030
€ 3.50
59-1
6861248B00
ref: 59-1
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
59-2
6861248B10
ref: 59-2
E4
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
60
9441927A00
ref: 60
OPT
COVER,HEADLAMP
9441927A00
€ 131.50
