SEAT (MODEL J)

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

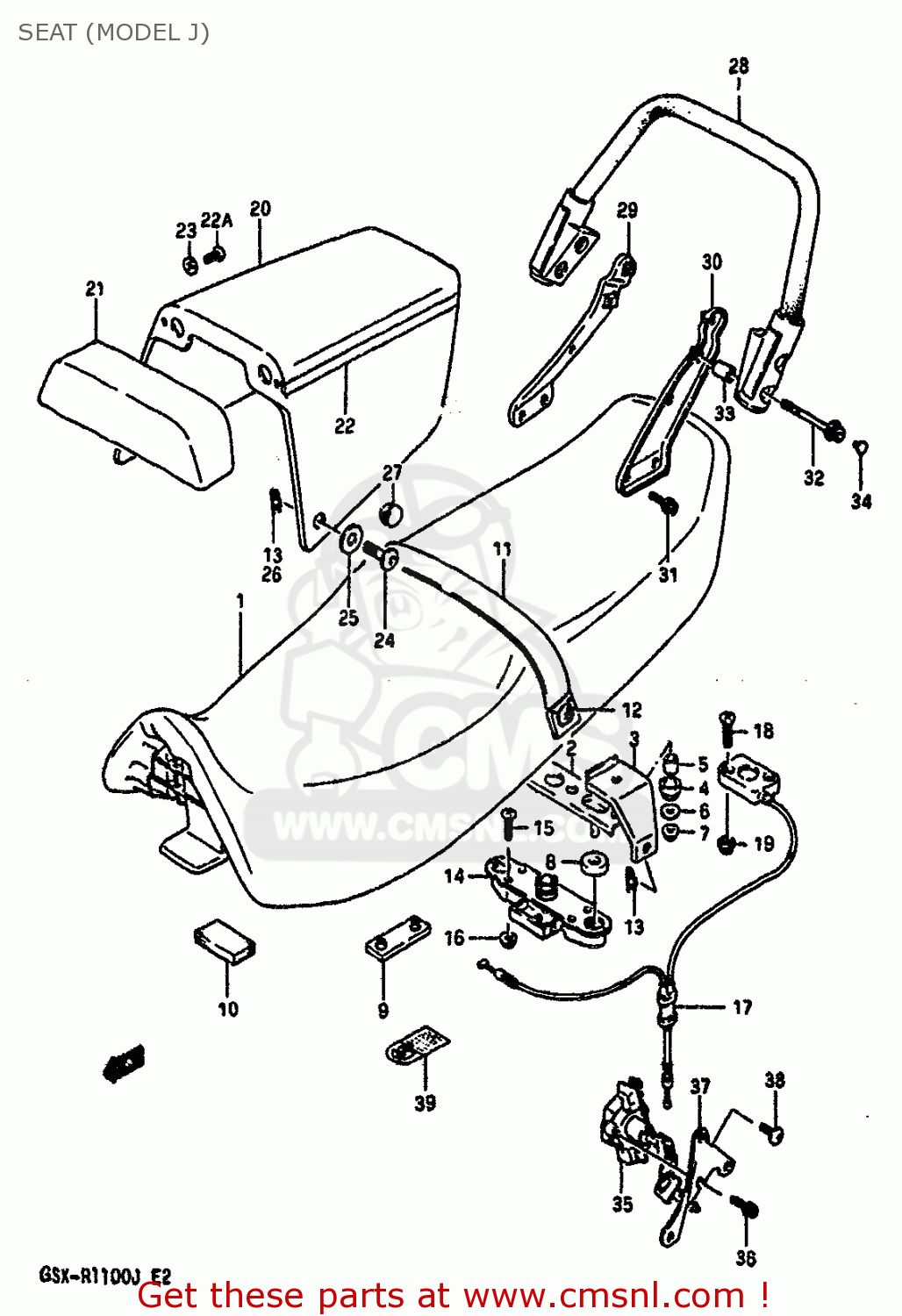

Seat (model j) diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

SEAT (MODEL J) GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL J) GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL J) GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4510006B114VP
ref: 1-1
FOR 9HD
SEAT ASSEMBLY
€ 385.00
1-2
4510006B115NN
ref: 1-2
FOR 9SR
SEAT ASSEMBLY
€ 385.00
1-3
4510006B1158R
ref: 1-3
FOR 13Z
SEAT ASSEMBLY
€ 385.00
1-4
4510006B014VP
ref: 1-4
E39,FOR 9HD
SEAT ASSY (RED)
€ 385.00
1-5
4510006B015NN
ref: 1-5
E39,FOR 9SR
SEAT ASSY (BLUE)
€ 385.00
1-6
4510006B0158R
ref: 1-6
E39,FOR 13Z
SEAT ASSEMBLY
€ 385.00
2
4521006B00
ref: 2
STRIKER,SEAT LOCK
€ 23.00
3
4523006B00
ref: 3
PLATE,SEAT GRIP BAND
€ 8.50
4
4521506B00
ref: 4
CUSHION
€ 4.50
5
4521606B00
ref: 5
SPACER
4521606B00
€ 2.50
6
0916006020
ref: 6
WASHER
0916006020
€ 2.00
7
0831616066
ref: 7
NUT
€ 2.50
8
4521331300
ref: 8
CUSHION
4521331300
€ 1.50
9
0932108009
ref: 9
CUSHION
0932108009
€ 4.00
10
4525527A00
ref: 10
CUSHION
€ 0.00
11-1
4518006B004VP
ref: 11-1
E39,FOR 9HD
BAND,SEAT GRIP (RED)
€ 16.00
11-2
4518006B005NN
ref: 11-2
E39,FOR 9SR
BAND,SEAT GRIP
€ 16.00
11-3
4518006B0058R
ref: 11-3
E39,FOR 13Z
BAND COMP,SEAT GRIP
€ 16.00
12
4518606B00
ref: 12
E39
BOLT
4518606B00
€ 5.00
13
0938506001
ref: 13
E39
CLIP
0938506001
€ 11.00
14
4522013601
ref: 14
LOCK ASSY,SEAT STRIKER
4522013601
€ 47.00
15
0211206305
ref: 15
SCREW
0211206305
€ 2.50
16
0831626065
ref: 16
NUT
0831626065
€ 2.00
17
4522006B00
ref: 17
BRACKET,SEAT SUPPORT RR
4522006B00
€ 72.50
18
0212206255
ref: 18
SCREW
€ 2.00
19
0831626065
ref: 19
NUT
0831626065
€ 2.00
20-1
45550068709HD
ref: 20-1
BOX SET,SEAT TAIL
€ 381.00
20-2
45550068709SR
ref: 20-2
BOX SET,SEAT TAIL
€ 344.00
20-3
455500686213Z
ref: 20-3
BOX SET,SEAT TAIL (BLACK)
455500686213Z
€ 385.00
21-1
4622027A014VP
ref: 21-1
FOR 9HD
BACKREST,SEAT
4622027A014VP
€ 61.00
21-2
4622027A015NN
ref: 21-2
FOR 9SR
BACKREST,SEAT
€ 61.00
21-3
4622027A0158R
ref: 21-3
FOR 13Z
BACKREST,SEAT
4622027A0158R
€ 61.00
22-1
6865006B1013Z
ref: 22-1
FOR 9HD
TAPE SET,SEAT TAIL BOX
€ 0.00
22-2
6865006B1022R
ref: 22-2
FOR 9SR
TAPE SET,SEAT TAIL BOX
€ 0.00
22A
0214206205
ref: 22A
SCREW, CENTER
0214206205
€ 2.00
23
0916006039
ref: 23
WASHER (6.5X18X1.6)
0916006039
€ 2.00
24
4518606B00
ref: 24
BOLT
4518606B00
€ 5.00
25
0916110010
ref: 25
WASHER(10X25X3.2)
0916110010
€ 9.00
26
0938506001
ref: 26
CLIP
0938506001
€ 11.00
27
4558127A00
ref: 27
CAP,SEAT TAIL COVER
4558127A00
€ 13.50
28
4621027A01
ref: 28
HANDLE,PILLION RIDER
4621027A01
€ 99.50
29
4624027A00
ref: 29
PLATE,PILLION HANDLE,R
4624027A00
€ 10.00
30
4625027A00
ref: 30
PLATE COMP,PILLION HANDLE
4625027A00
€ 9.00
31
0712006168
ref: 31
BOLT
€ 2.50
32
0712008605
ref: 32
BOLT 5X10
0712008605
€ 4.50
33
0918008125
ref: 33
SPACER (8.6X13.8X21.5)
0918008125
€ 6.50
34
0925006008
ref: 34
CAP(OD:10)
0925006008
€ 3.00
35
9570027A00KEY
ref: 35
LOCK SET
9570027A00KEY
€ 65.50
36
0712006205
ref: 36
PLUG ,6X20
0712006205
€ 3.50
37
4528527A00
ref: 37
BRACKET,SEAT LOCK
4528527A00
€ 3.50
38
0214206125
ref: 38
SCREW 6X12
0214206125
€ 2.00
39
1196782000
ref: 39
E2
LABEL,ASBESTOS WARNING
€ 2.00
37
0712006168
ref: 37
BOLT
€ 2.50
38
0910608061
ref: 38
BOLT
€ 4.50
39
0925006008
ref: 39
CAP(OD:10)
0925006008
€ 3.00
40
0918008125
ref: 40
SPACER (8.6X13.8X21.5)
0918008125
€ 6.50
41
9570027A00KEY
ref: 41
LOCK SET
9570027A00KEY
€ 65.50
42
0712006205
ref: 42
PLUG ,6X20
0712006205
€ 3.50
43
4528527A00
ref: 43
BRACKET,SEAT LOCK
4528527A00
€ 3.50
44
0214206125
ref: 44
SCREW 6X12
0214206125
€ 2.00
45
1196782000
ref: 45
E2
LABEL,ASBESTOS WARNING
€ 2.00
