CYLINDER

GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

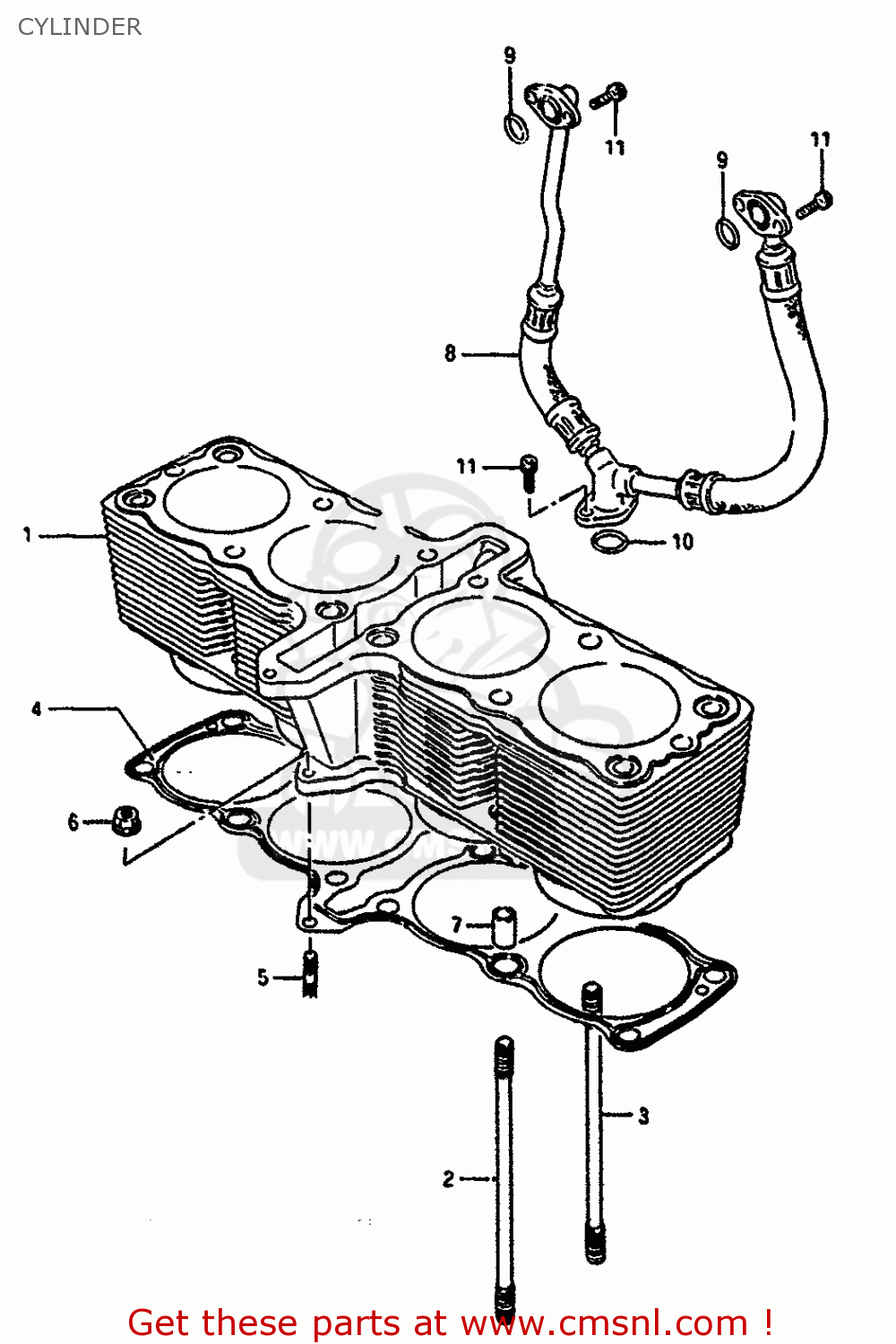

Cylinder diagram GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CYLINDER GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CYLINDER GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

1121006B02
ref: 1
FROM 11210-06B01

CYLINDER

€ 864.00

2

0910810081
ref: 2

BOLT,STUD

€ 12.50

3

0910810080
ref: 3

STUD

€ 15.50

4

1124127A02
ref: 4

GASKET,CYLINDER (NAS)

€ 20.00

5

0142106205
ref: 5

STUD BOLT L:20

€ 2.50

6

0831616064
ref: 6

NUT 6MM

€ 2.50

7

0920613006
ref: 7

PIN

€ 9.00

8-1

1132806B00
ref: 8-1
MODEL G

HOSE,OIL HEAD COOLER

€ 172.50

8-2

1132848B00
ref: 8-2
MODEL H/J

HOSE

€ 283.50

9

0928014011
ref: 9

O RING(D:2.5,ID:13.8)

€ 3.50

10

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

11

0711006165
ref: 11

BOLT

€ 3.00
