AIR CLEANER

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

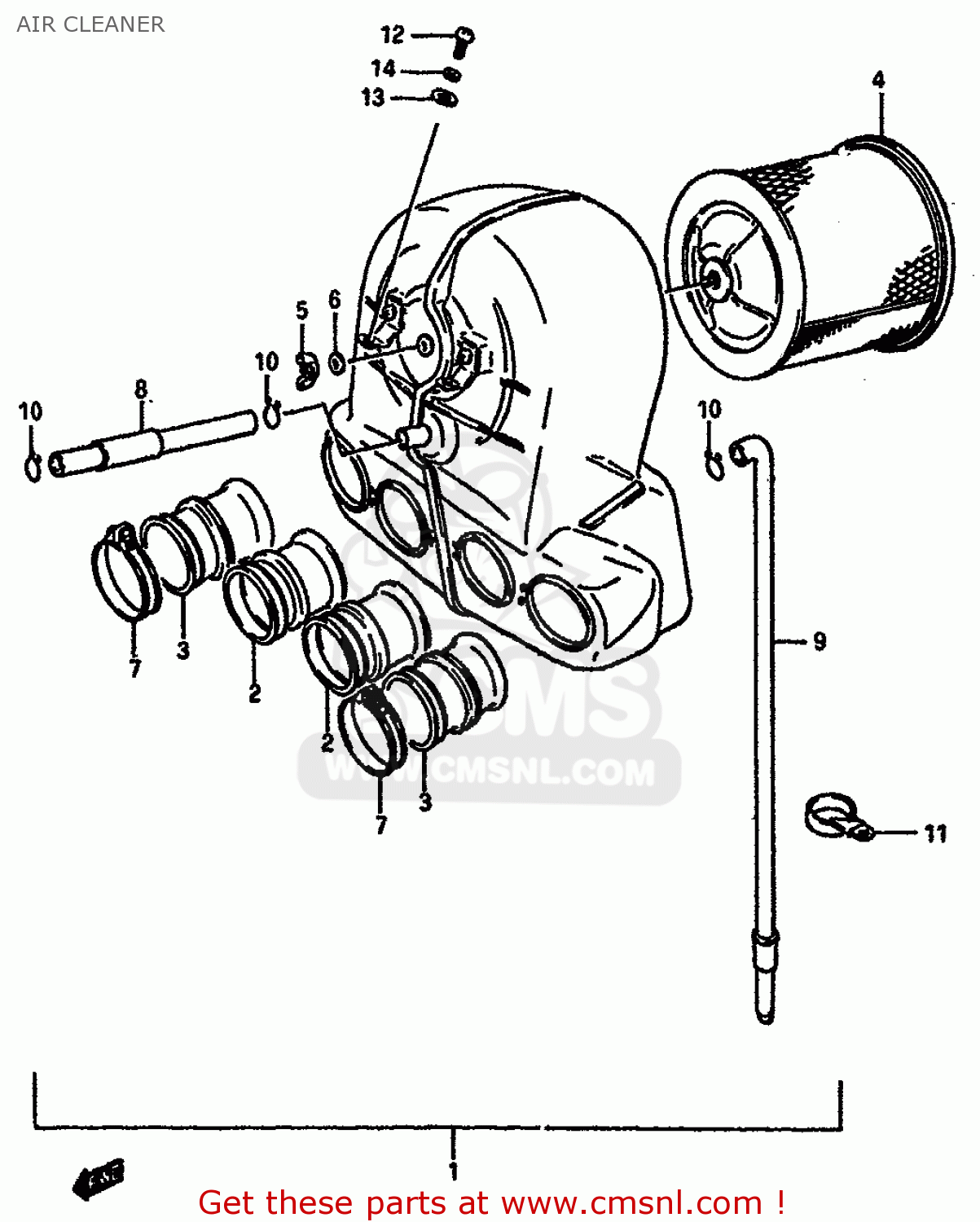

Air cleaner diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

AIR CLEANER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

AIR CLEANER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

1370027A01
ref: 1-1

CLEANER ASSEMBLY,AIR

€ 206.50

1-2

1370027A11
ref: 1-2
MODEL H E18

CLEANER ASSY,AIR

€ 320.00

2

1388127A00
ref: 2

TUBE,OUTLET NO.1

€ 16.00

3

1388227A00
ref: 3

TUBE,OUTLET NO.2

€ 17.50

4-1

1378027A00
ref: 4-1

FILTER ASSY

€ 46.00

4-2

1378027A10
ref: 4-2
MODEL H E18

FILTER ASSY,AIR

€ 46.00

5

0831712058
ref: 5

NUT, WING

€ 2.00

6

0832211058
ref: 6

WASHER 5MM

€ 2.50

7

0940256207
ref: 7

CLAMP

€ 3.50

8

1385027A00
ref: 8

TUBE,BREATHER

€ 6.00

9

1387021447
ref: 9

DRAIN TUBE

€ 23.50

10

0940114301
ref: 10

CLIP

€ 2.00

11

1387927A01
ref: 11

CLAMP,AIR CLEANER DRAIN TUBE

€ 4.50

12

0211206208
ref: 12

SCREW

€ 2.00

13

0916006019
ref: 13

WASHER(6.5X16X1.2)

€ 1.50

14

0832191067
ref: 14

LOCK WASHER

€ 0.00
