BATTERY

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

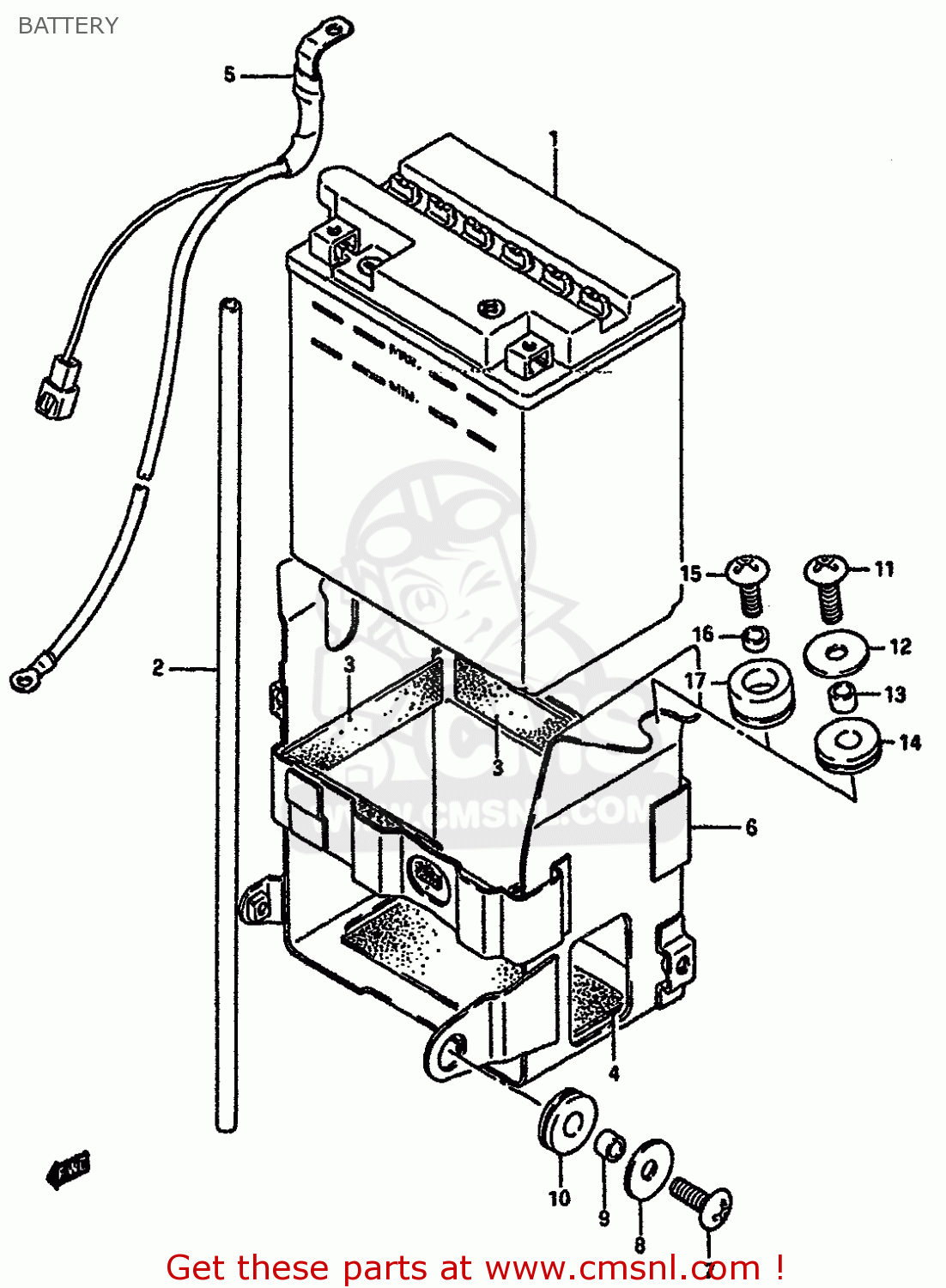

Battery diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

3368031003
ref: 2

HOSE,BATTERY EXHAUST

€ 4.50

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

3365137D00
ref: 4
CUT AS REQUIRED PROF

CUSHION

€ 0.00

5-1

3386027A00
ref: 5-1
MODEL F

WIRE,BATTERY MINUS LEAD

€ 17.00

5-2

3386006B00
ref: 5-2
MODEL G/H

WIRE,BATTERY MINUS LEAD

€ 17.00

4154027A00
ref: 6

HOLDER,BATTERY

€ 44.00

0214206167
ref: 7

SCREW

€ 2.00

8-1

0916006004
ref: 8-1

WASHER (6.5X24X1.6)

€ 1.50

8-2

0916006006
ref: 8-2

WASHER

€ 2.00

0918006152
ref: 9

SPACER

€ 3.00

0932009021
ref: 10

CUSHION

€ 4.00

0214206257
ref: 11
MODEL F

SCREW

€ 3.00

0916006004
ref: 12
MODEL F

WASHER (6.5X24X1.6)

€ 1.50

0918006152
ref: 13
MODEL F

SPACER

€ 3.00

0932009021
ref: 14
MODEL F

CUSHION

€ 4.00

0214206207
ref: 15
MODEL G/H

SCREW

€ 2.00

0918006073
ref: 16
MODEL G/H

SPACER

€ 2.00

4154934A00
ref: 17
MODEL G/H

CUSHION,HOLDER BATTERY UPR

€ 4.00
