HEADLAMP (MODEL G/H E1,2,4,6,15,16,17,21,22,24,25,39,53)

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

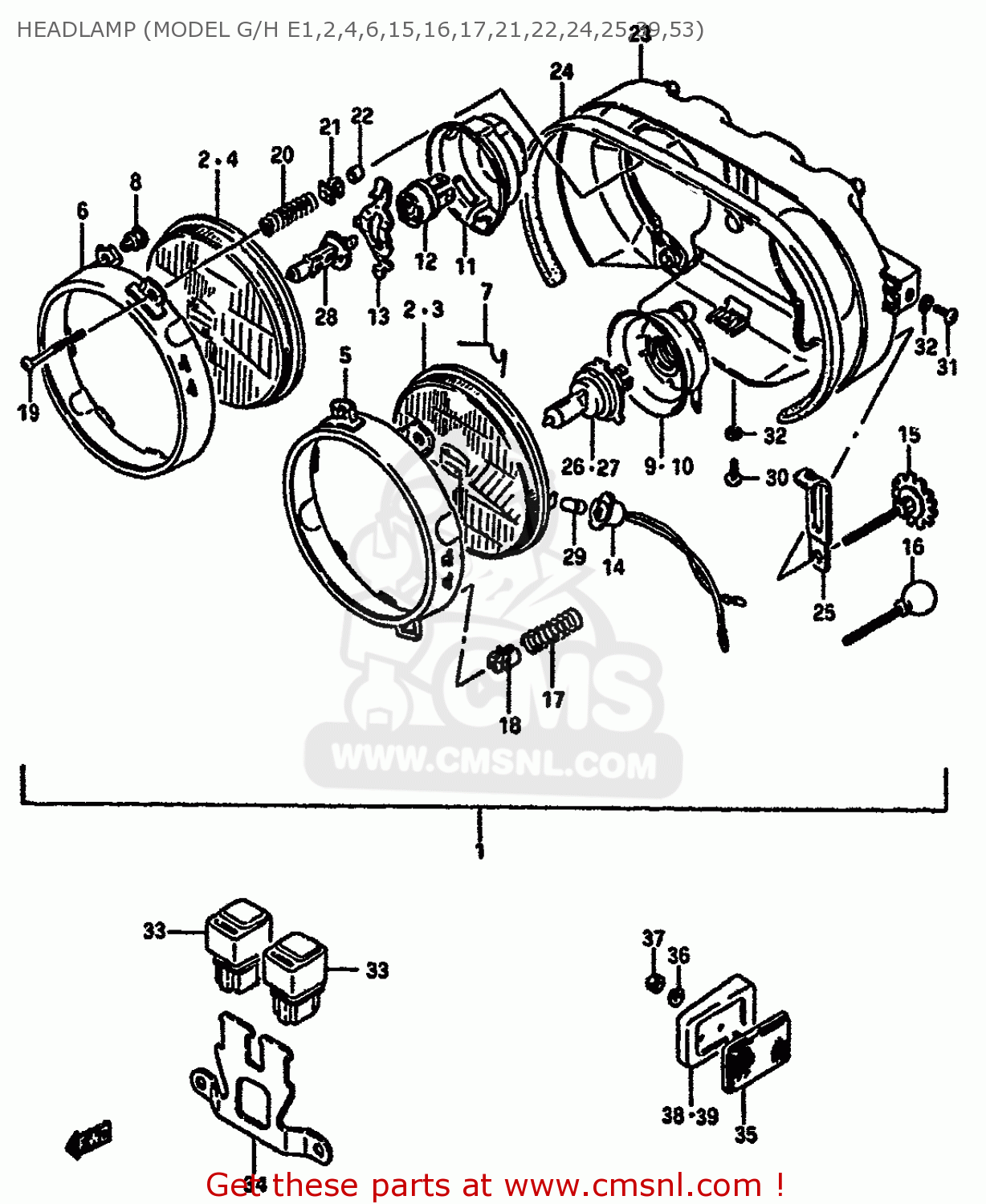

Headlamp (model g/h e1,2,4,6,15,16,17,21,22,24,25,39,53) diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

HEADLAMP (MODEL G/H E1,2,4,6,15,16,17,21,22,24,25,39,53) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
HEADLAMP (MODEL G/H E1,2,4,6,15,16,17,21,22,24,25,39,53) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
HEADLAMP (MODEL G/H E1,2,4,6,15,16,17,21,22,24,25,39,53) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3510006B30999
ref: 1-1
E1,E6,E24
HEADLAMP ASSY
3510006B30999
€ 306.00
1-2
3510006B00999
ref: 1-2
E2
HEADLAMP ASSY
€ 325.00
1-3
3510006B40999
ref: 1-3
E4
HEADLAMP ASSY
€ 0.00
1-4
3510006B80999
ref: 1-4
E15
HEADLAMP ASSY
€ 0.00
1-5
3510006B60999
ref: 1-5
E16,E21
HEADLAMP ASSY
€ 0.00
1-6
3510006B50999
ref: 1-6
E17,E22,E39,E53
HEADLAMP ASSY
€ 328.00
1-7
3510006B70999
ref: 1-7
E25
HEADLAMP ASSY
€ 0.00
2-1
3512106B30
ref: 2-1
E1,E6,E24
LAMP UNIT
3512106B30
€ 109.00
2-2
3512106B00
ref: 2-2
E2
UNIT
€ 82.00
2-3
3512106B50
ref: 2-3
E16,E21
LAMP UNIT,L
3512106B50
€ 80.50
3
3512106B50
ref: 3
E4,E15,E17,E22,E25,E
LAMP UNIT,L
3512106B50
€ 80.50
4-1
3522106B40
ref: 4-1
E4
UNIT, RH
€ 0.00
4-2
3512106B80
ref: 4-2
E15
UNIT,RH
€ 0.00
4-3
3522106B50
ref: 4-3
E22,E39,E53
UNIT, RH
3522106B50
€ 81.00
4-4
3522106B70
ref: 4-4
E25
UNIT,RH
€ 54.00
5
3512627A00
ref: 5
RING,RETAINING,LEFT
3512627A00
€ 30.50
6
3512727A00
ref: 6
RING,RETAINING,RIGHT
3512727A00
€ 24.00
7
3512846720
ref: 7
SPRING
3512846720
€ 4.50
8
3516204A00
ref: 8
SCREW,SPHERICAL
3516204A00
€ 2.00
9
3517320A01
ref: 9
E1,E2,E6,E15,E16,E21
COVER,SOCKET
3517320A01
€ 14.50
10
3517320A01
ref: 10
E4,E17,E22,E25,E39,E
COVER,SOCKET
3517320A01
€ 14.50
11
3517306B50
ref: 11
E4,E17,E22,E25,E39,E
COVER, SOCKET,LH
3517306B50
€ 10.00
12
3517506B50
ref: 12
E4,E17,E22,E25,E39,E
ADAPTER
3517506B50
€ 8.50
13
3517206B50
ref: 13
E4,E17,E22,E25,E39,E
SPRING,PLATE
3517206B50
€ 10.00
14-1
3611804A00
ref: 14-1
E2
SOCKET
3611804A00
€ 11.50
14-2
3611830500
ref: 14-2
E16,E21
SOCKET
3611830500
€ 10.00
14-3
3611804A00
ref: 14-3
E4,E15,E17,E22,E25,E
SOCKET
3611804A00
€ 11.50
15
3515327A00
ref: 15
SCREW,ADJUSTER
3515327A00
€ 3.50
16
3515304A00
ref: 16
MODEL H E2
SCREW,ADJUSTER
3515304A00
€ 3.50
17
3515404A00
ref: 17
SPRING
3515404A00
€ 4.00
18
3515227A00
ref: 18
NUT
3515227A00
€ 3.00
19
3515104A00
ref: 19
SCREW,ADJUSTER
3515104A00
€ 4.00
20
3515404A00
ref: 20
SPRING
3515404A00
€ 4.00
21
3515504A00
ref: 21
NUT
3515504A00
€ 5.50
22
3515843400
ref: 22
CAP,SCREW
3515843400
€ 2.00
23
3524006B00
ref: 23
HOUSING,HEADLAMP
3524006B00
€ 76.50
24
3524227A00
ref: 24
GASKET (NAS)
3524227A00
€ 12.50
25
0940405401
ref: 25
CLAMP
0940405401
€ 2.50
26
0947112060
ref: 26
E1,E2,E6,E15,E16,E21
BULB(12V60/55W,H4)
0947112060
€ 8.00
27-1
0947112061
ref: 27-1
E4,EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
27-2
0947112060
ref: 27-2
E17,E22,E25,E39,E53
BULB(12V60/55W,H4)
0947112060
€ 8.00
28
0947112122
ref: 28
E4,E17,E22,E25,E39,E
BULB(12V55W/H1/P14.5S/OSRA,PHI
€ 4.00
29-1
0947112063
ref: 29-1
E2,E16,E21
BULB(12V4W)
0947112063
€ 6.00
29-2
0947112063
ref: 29-2
E4,E15,E17,E22,E25,E
BULB(12V4W)
0947112063
€ 6.00
30
0211206166
ref: 30
SCREW
€ 2.00
31
0211206106
ref: 31
SCREW
€ 1.50
32
0832121066
ref: 32
WASHER,LOCK
0832121066
€ 2.00
33-1
3864006B00
ref: 33-1
E1,E2,E6,E16,E21,E24
RELAY, ANTINOSE DIVE FORK
€ 37.50
33-2
3864006B00
ref: 33-2
E4,E15,E17,E22,E25,E
RELAY, ANTINOSE DIVE FORK
€ 37.50
34
3864106B00
ref: 34
BRACKET,HEADLAMP RELAY
3864106B00
€ 7.50
35
3595001A30
ref: 35
E39
REFLEX REFLECTOR, FRONT SIDE
€ 9.00
36
0832221055
ref: 36
E39
WASHER,5MM
0832221055
€ 2.50
37
0831012055
ref: 37
E39
NUT ,5MM
0831012055
€ 2.50
38
3595427A00
ref: 38
E39
SPACER,FRONT SIDE,REAR,RIGHT
€ 3.50
39
3595527A00
ref: 39
E39
SPACER,FRONT SIDE,REAR,LEFT
€ 0.00
