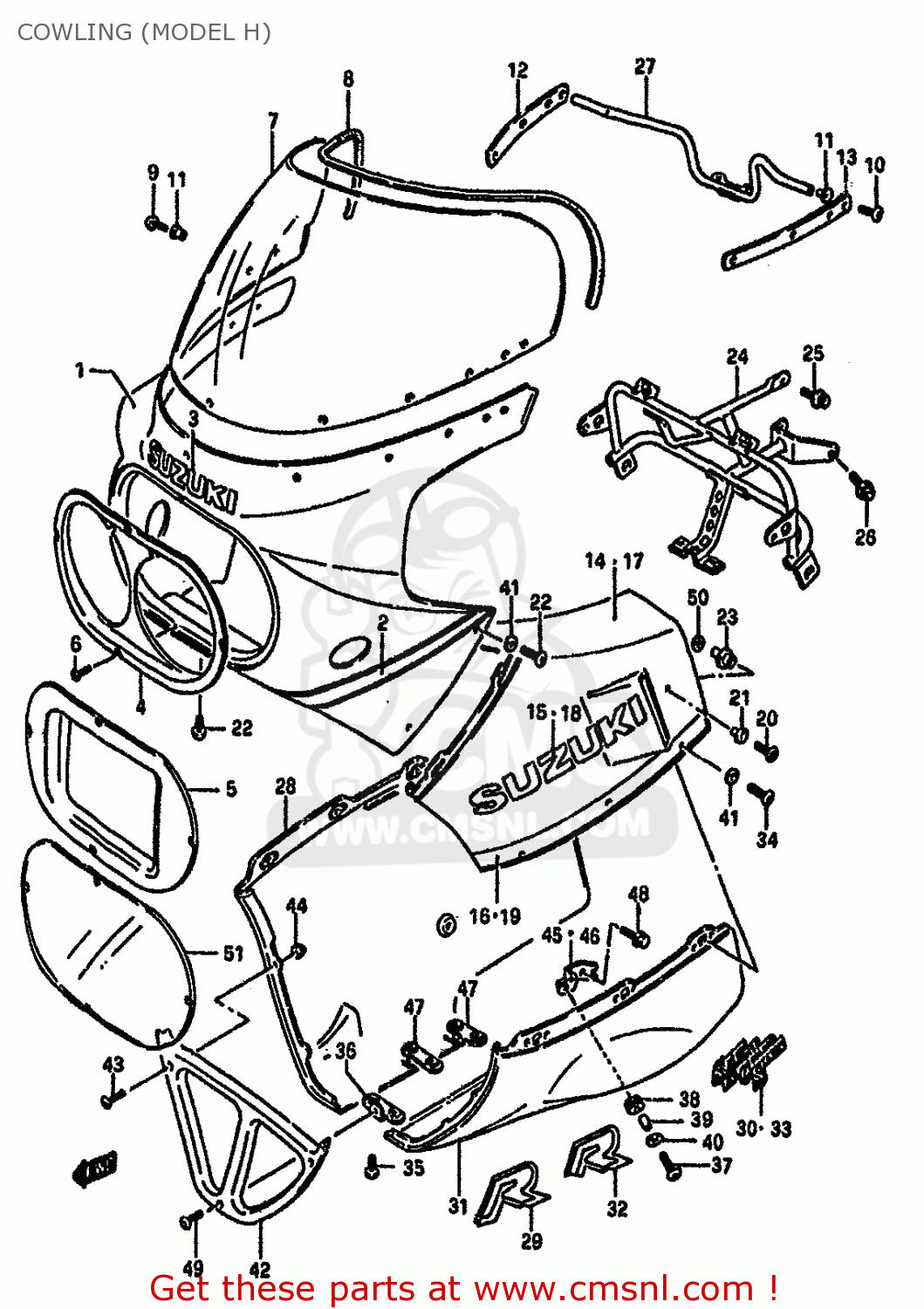

COWLING (MODEL H)

ref

part #

description

quantity

1-1

9440027A909HE
ref: 1-1

COWLING SET

€ 641.50

1-2

9440027A907JK
ref: 1-2

COWLING SET

€ 597.50

1-3

9440028A809HE
ref: 1-3
E18,E34

BODY ASSY,COWLING (WHITE/BLUE)

€ 641.50

1-4

9440028A807JK
ref: 1-4
E18,E34

BODY ASSY,COWLING (BLACK/RED)

€ 597.50

2-1

6819027A309JJ
ref: 2-1
FOR 9HE

TAPE SET,COWLING BODY

€ 23.50

2-2

6819027A309JH
ref: 2-2
FOR 7JK

TAPE SET,COWLING BODY

€ 19.50

3

6827104A00064
ref: 3

EMBLEM

€ 12.00

4-1

9443527A0019F
ref: 4-1
FOR 9HE

COVER,COWLING,FRONT

€ 35.00

4-2

9443527A0022P
ref: 4-2
FOR 7JK

COVER,COWLING,FRONT

€ 35.00

5-1

9443527A2019F
ref: 5-1
E18,E34,FOR 9HE

COVER,FRONT (BLUE)

€ 42.00

5-2

9443527A2022P
ref: 5-2
E18,E34,FOR 7JK

COVER,FRONT (RED)

€ 42.00

6

0354104125
ref: 6

SCREW

€ 1.50

7-1

9461106B01
ref: 7-1

WINDSCREEN

€ 457.50

7-2

9461128A00
ref: 7-2
OPT,HARD COATING

SCREEN,WIND (SMOKE)

€ 457.50

8-1

9463127A00
ref: 8-1

MOLDING,SCREEN

€ 15.00

8-2

9463127A10
ref: 8-2
E17

MOLDING

€ 14.00

9

0913905025
ref: 9

SCREW(5X14)

€ 2.00

10

0913905032
ref: 10

SCREW(5X18)

€ 2.50

11

9461927A00
ref: 11

NUT,COWLING SCREEN

€ 6.50

12

9452927A00
ref: 12

PLATE,RR VIEW MIRROR,R

€ 6.00

13

9453927A00
ref: 13

PLATE,RR VIEW MIRROR,L

€ 4.50

14-1

9443027A9030H
ref: 14-1
FOR 9HE

COVER,SIDE RH (WHITE)

€ 304.00

14-2

9443027A90019
ref: 14-2
FOR 7JK

COVER,SIDE RH (BLACK)

€ 304.00

14-3

9443028A9030H
ref: 14-3
E39,FOR 9HE

COVER ASSEMBLY,COWLING

€ 304.00

14-4

9443028A90019
ref: 14-4
E39,FOR 7JK

COVER ASSEMBLY,COWLING

€ 304.00

15-1

6811100A5007G
ref: 15-1
FOR 30H

EMBLEM,SIDE,RIGHT

€ 18.00

15-2

6811100A50064
ref: 15-2
FOR 019

EMBLEM

€ 13.00

16-1

6868027A4008L
ref: 16-1
FOR 30H

TAPE SET,COVER SIDE,RIGHT

€ 17.00

16-2

6868027A40742
ref: 16-2
FOR 019

TAPE SET,COVER SIDE,RIGHT

€ 17.00

17-1

9444027A9030H
ref: 17-1
FOR 9HE

COVER,SIDE LH (WHITE)

€ 264.00

17-2

9444027A90019
ref: 17-2
FOR 7JK

COVER,SIDE LH (BLACK)

€ 264.00

17-3

9444028A9030H
ref: 17-3
E39,FOR 9HE

COVER,COWLING SIDE,LEFT

€ 264.00

17-4

9444028A90019
ref: 17-4
E39,FOR 7JK

COVER,COWLING SIDE,LEFT

€ 264.00

18-1

6811100A5007G
ref: 18-1
FOR 30H

EMBLEM,SIDE,RIGHT

€ 18.00

18-2

6811100A50064
ref: 18-2
FOR 019

EMBLEM

€ 13.00

19-1

6869027A4008L
ref: 19-1
FOR 30H

TAPE SET,COVER SIDE,LEFT

€ 15.50

19-2

6869027A40742
ref: 19-2
FOR 019

TAPE SET,COVER SIDE,LEFT

€ 8.00

20

0913906027
ref: 20

SCREW(6X12)

€ 3.00

21

0916906033
ref: 21

WASHER

€ 1.50

22

0913906030
ref: 22

SCREW(6X16)

€ 3.50

23

9457004A00
ref: 23

CUSHION,COWLING

€ 12.50

24

9451027A40
ref: 24

BRACE,COWLING

€ 132.00

25

0712006165
ref: 25

BOLT

€ 2.50

26

0712008165
ref: 26

BOLT

€ 3.00

27

9453027A10
ref: 27

BRACE,COWLING BODY RR

€ 38.00

28-1

9447027A909HH
ref: 28-1
FOR 9HE

COVER,COWLING,LOWER,RIGHT

€ 626.00

28-2

9447027A909HG
ref: 28-2
FOR 7JK

COVER,COWLING,LOWER,RIGHT

€ 626.00

29-1

6826127A008KC
ref: 29-1
FOR 9HH

EMBLEM

€ 22.50

29-2

6826127A007JS
ref: 29-2
FOR 9HG

EMBLEM,COWLING,LOWER,RIGHT

€ 19.50

30-1

6813127A007VR
ref: 30-1
FOR 9HH

EMBLEM

€ 13.00

30-2

6813127A007JL
ref: 30-2
FOR 9HG

EMBLEM

€ 9.00

31-1

9448027A909HH
ref: 31-1
FOR 9HE

COVER,LOWER LH (BLUE/BLUE)

€ 626.00

31-2

9448027A909HG
ref: 31-2
FOR 7JK

COVER,LOWER LH (WHITE/RED)

€ 626.00

31-3

9448027A709HH
ref: 31-3
E34 FOR 9HE

COVER,COWLING,LOWER,LEFT

€ 626.00

31-4

9448027A709HG
ref: 31-4
E34 FOR 7JK

COVER,COWLING,LOWER,LEFT

€ 626.00

32-1

6826127A108KC
ref: 32-1
FOR 9HH

EMBLEM

€ 22.50

32-2

6826127A107JS
ref: 32-2
FOR 9HG

EMBLEM

€ 19.50

33-1

6813127A007VR
ref: 33-1
FOR 9HH

EMBLEM

€ 13.00

33-2

6813127A007JL
ref: 33-2
FOR 9HG

EMBLEM

€ 9.00

34

0913906030
ref: 34

SCREW(6X16)

€ 3.50

35

0913906039
ref: 35

SCREW(6X16)

€ 2.50

36

9449006B00
ref: 36

BRACE,COWLING LWR COVER

€ 4.50

37

0913906028
ref: 37

SCREW(6X20)

€ 3.50

38

0932009016
ref: 38

CUSHION

€ 2.50

39

0918006152
ref: 39

SPACER

€ 3.00

40

0916006056
ref: 40

WASHER(6.5X18X1)

€ 2.00

41

0916107005
ref: 41

WASHER

€ 3.00

42-1

9447506B0123Z
ref: 42-1
FOR 9HE

COVER,COWLING,LOWER,FRONT

€ 121.50

42-2

9447506B0122P
ref: 42-2
FOR 7JK

COVER,COWLING,LOWER,FRONT

€ 121.50

43

0913905025
ref: 43

SCREW(5X14)

€ 2.00

44

0831626055
ref: 44

NUT

€ 2.00

45

9458027A00
ref: 45

BRACE,COWLING LWR,R

€ 10.00

46

9459027A00
ref: 46

BRACE,COWLING LWR,L

€ 6.50

47

9449306B00
ref: 47

BRACE,COWLING LWR COVER RR

€ 4.00

48

0151706128
ref: 48

BOLT

€ 2.50

49

0913906030
ref: 49

SCREW(6X16)

€ 3.50

50

0832131064
ref: 50

WASHER

€ 2.00

51

9441927A00
ref: 51
OPT

COVER,HEADLAMP

€ 131.50
