TURN SIGNAL LAMP (E2,4,15,16,17,18,21,22,25,34,39,55)

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

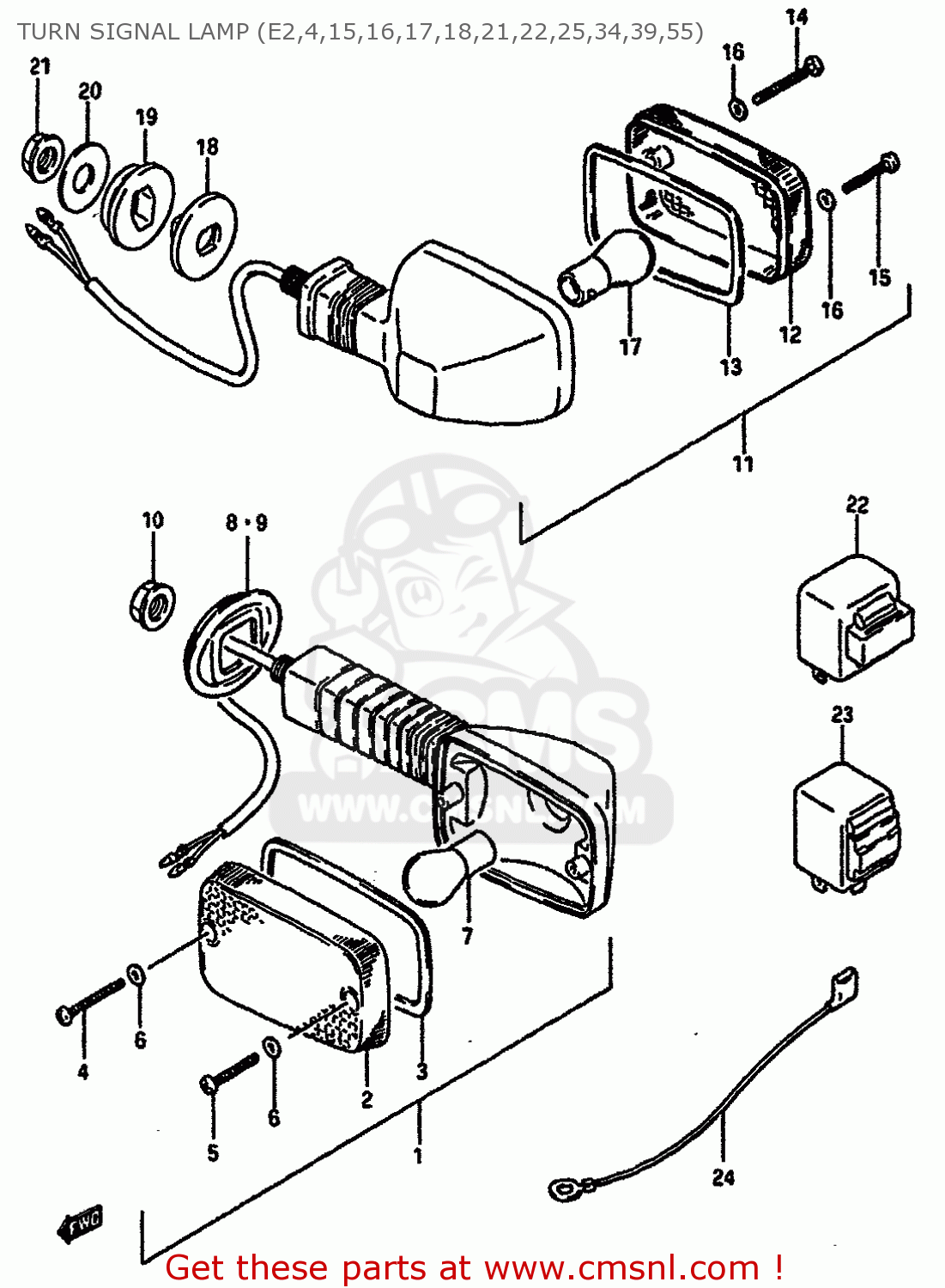

Turn signal lamp (e2,4,15,16,17,18,21,22,25,34,39,55) diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

TURN SIGNAL LAMP (E2,4,15,16,17,18,21,22,25,34,39,55) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
TURN SIGNAL LAMP (E2,4,15,16,17,18,21,22,25,34,39,55) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
TURN SIGNAL LAMP (E2,4,15,16,17,18,21,22,25,34,39,55) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3560114A42
ref: 1-1
MODEL F E2,E16,E17,E
LAMP ASSY,FRONT TURN SIGNAL
€ 108.00
1-2
3560106B40
ref: 1-2
MODEL G/H E2,E15,E16
LAMP ASSY, FRONT TURN SIGNAL
3560106B40
€ 108.00
1-3
3560114A23
ref: 1-3
MODEL F E4,E18,E21,E
LAMP ASSY,FRONT TURN SIGNAL
€ 120.50
1-4
3560106B20
ref: 1-4
MODEL G/H E4,E18,E21
LAMP ASSY,FR
3560106B20
€ 120.50
1-5
3560114A53
ref: 1-5
MODEL F E22 TO 35601
LAMP ASSY,FRONT TURN SIGNAL
€ 127.50
1-6
3560106B50
ref: 1-6
MODEL G/H E22
LAMP ASSY, FRONT TURN SIGNAL
€ 127.50
2
3561202181
ref: 2
LENS,FR
3561202181
€ 9.00
3
3561348700
ref: 3
GASKET (NAS)
3561348700
€ 7.50
4
3562302180
ref: 4
SCREW,TURN SIG LENS FITTING
3562302180
€ 2.00
5
0321104308
ref: 5
SCREW
0321104308
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8-1
3567427A30
ref: 8-1
E2,E15,E16,E17,E22
GROMMET,TURNSIGNAL LAMP,R
3567427A30
€ 8.50
8-2
3567427A20
ref: 8-2
E4,E18,E21,E25,E34,E
GROMMET, FRONT RH
3567427A20
€ 7.00
9-1
3568427A30
ref: 9-1
E2,E15,E16,E17,E22
GROMMET,TURNSIGNAL LAMP,L
3568427A30
€ 8.50
9-2
3568427A20
ref: 9-2
E4,E18,E21,E25,E34,E
GROMMET, FRONT LH
3568427A20
€ 7.00
10
0831626105
ref: 10
NUT
0831626105
€ 3.50
11-1
3560314A22
ref: 11-1
MODEL F E2,E4,E15,E1
LAMP ASSY,REAR TURN SIGNAL
€ 93.50
11-2
3560306B20
ref: 11-2
MODEL G/H E2,E4,E15,
LAMP ASSY,REAR TURN SIGNAL
3560306B20
€ 36.00
11-3
3560314A52
ref: 11-3
MODEL F E16,E18,E39
LAMP ASSY,RR
3560314A52
€ 71.50
11-4
3560306B40
ref: 11-4
MODEL G/H E16,E18,E1
LAMP ASSY,REAR TURN SIGNAL
3560306B40
€ 71.50
11-5
3560314A72
ref: 11-5
MODEL F E22
LAMP ASSY,REAR TURN SIGNAL
€ 41.00
11-6
3560306B50
ref: 11-6
MODEL G/H E22
LAMP ASSY,REAR TURN SIGNAL
3560306B50
€ 64.00
12
3565202181
ref: 12
LENS,RR
3565202181
€ 8.50
13
3561348700
ref: 13
GASKET (NAS)
3561348700
€ 7.50
14
3562302180
ref: 14
SCREW,TURN SIG LENS FITTING
3562302180
€ 2.00
15
0321104308
ref: 15
SCREW
0321104308
€ 1.50
16
3562743010
ref: 16
GASKET (NAS)
3562743010
€ 2.00
17
0947112045
ref: 17
BULB(12V21W)
0947112045
€ 5.00
18
3569506B00
ref: 18
MODEL G/H
SPACER
3569506B00
€ 4.50
19
3569206B00
ref: 19
MODEL G/H
CUSHION
3569206B00
€ 4.50
20
0916010078
ref: 20
MODEL G/H
WASHER (10.2X27X1.6)
0916010078
€ 2.00
21
0831626105
ref: 21
NUT
0831626105
€ 3.50
22
3861031310
ref: 22
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
23
3861045091
ref: 23
E22,MODEL G/H E2
RELAY ASSY,TUR
€ 67.50
24
3685135010
ref: 24
E22,MODEL G/H E2
LEAD WIRE
3685135010
€ 6.00
