TURN SIGNAL LAMP (E1,E6,E24)

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

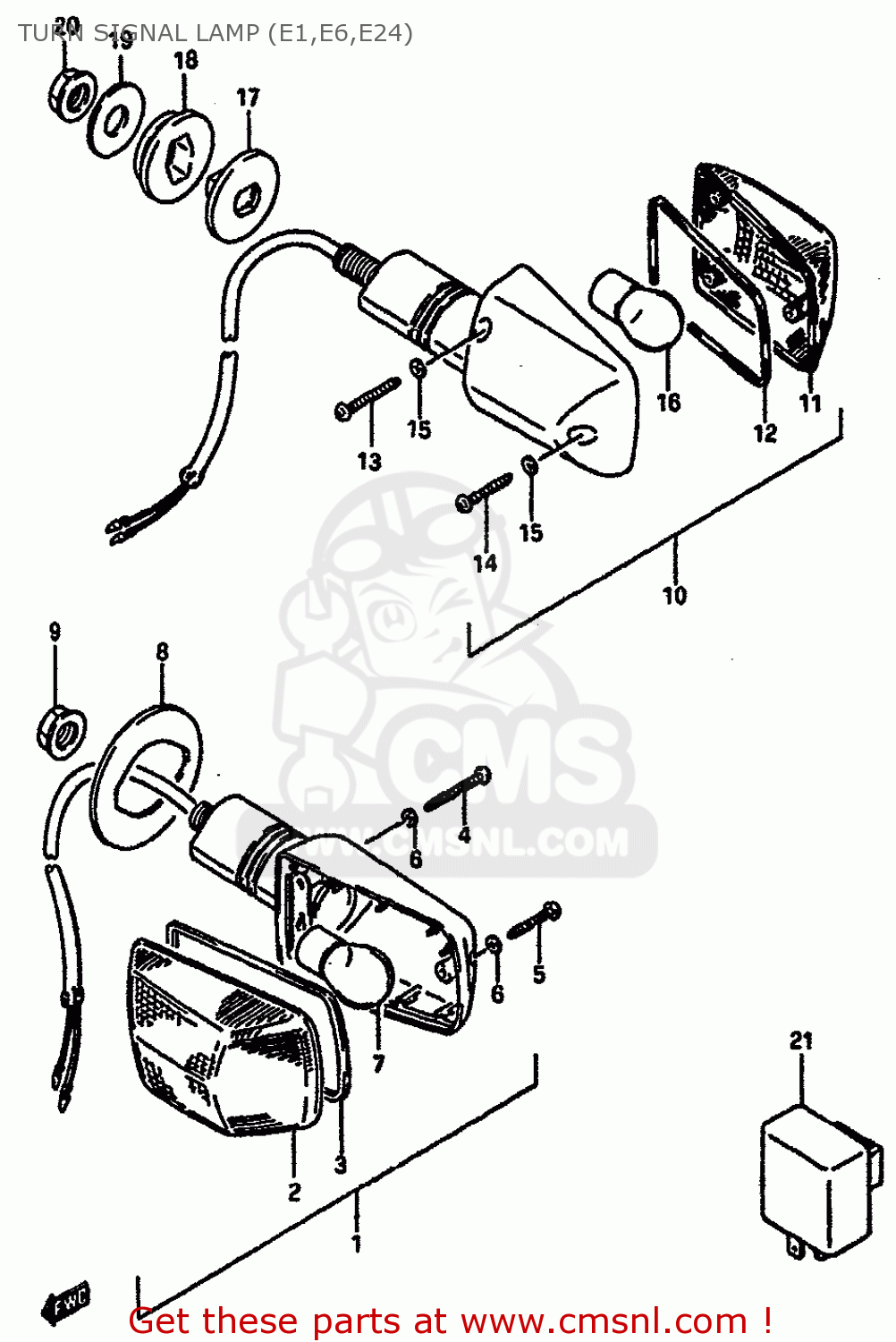

Turn signal lamp (e1,e6,e24) diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

TURN SIGNAL LAMP (E1,E6,E24) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
TURN SIGNAL LAMP (E1,E6,E24) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
TURN SIGNAL LAMP (E1,E6,E24) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3560127A02
ref: 1-1
MODEL F TO 35601-27A
LAMP ASSY,REAR TURN SIGNAL
€ 88.50
1-2
3560106B00
ref: 1-2
MODEL G/H
LAMP ASSY, FRONT TURN SIGNAL
3560106B00
€ 88.50
2
3561227A00
ref: 2
LENS
€ 11.50
3
3561327A00
ref: 3
GASKET (NAS)
3561327A00
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
3562327A00
€ 1.50
5
3572540511
ref: 5
SCREW
3572540511
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
3562727A02
€ 1.50
7
0947112006
ref: 7
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
8
3567427A00
ref: 8
GROMMET
3567427A00
€ 13.50
9
0831626105
ref: 9
NUT
0831626105
€ 3.50
10-1
3560127A02
ref: 10-1
MODEL F TO 35601-27A
LAMP ASSY,REAR TURN SIGNAL
€ 88.50
10-2
3560306B10
ref: 10-2
MODEL G/H
LAMP ASSY,REAR TURN SIGNAL
€ 88.50
11
3561227A00
ref: 11
LENS
€ 11.50
12
3561327A00
ref: 12
GASKET (NAS)
3561327A00
€ 3.00
13
3562327A00
ref: 13
SCREW(3X30)
3562327A00
€ 1.50
14
3572540511
ref: 14
SCREW
3572540511
€ 1.50
15
3562727A02
ref: 15
GASKET (NAS)
3562727A02
€ 1.50
16
0947112006
ref: 16
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
17
3569506B00
ref: 17
MODEL G/H
SPACER
3569506B00
€ 4.50
18
3569206B00
ref: 18
MODEL G/H
CUSHION
3569206B00
€ 4.50
19
0916010078
ref: 19
MODEL G/H
WASHER (10.2X27X1.6)
0916010078
€ 2.00
20
0831626105
ref: 20
NUT
0831626105
€ 3.50
21
3861031310
ref: 21
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
