ELECTRICAL

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

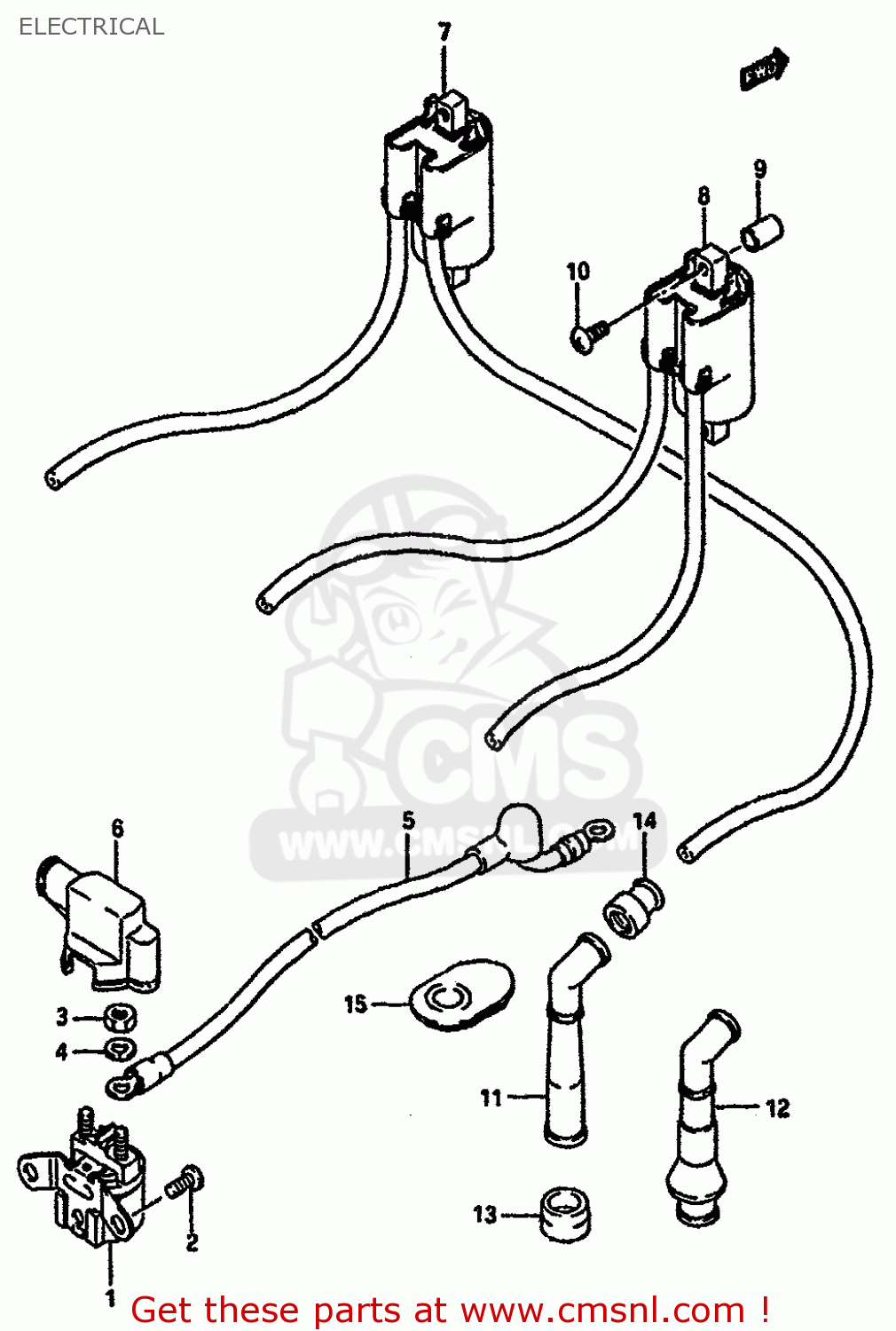

Electrical diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

ELECTRICAL GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
ELECTRICAL GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
ELECTRICAL GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
3180049100
€ 89.00
2
0211206106
ref: 2
SCREW
€ 1.50
3
0831011066
ref: 3
NUT
€ 2.00
4
0832121066
ref: 4
WASHER,LOCK
0832121066
€ 2.00
5
3385027A01
ref: 5
WIRE,STARTER MOTOR LEAD
3385027A01
€ 30.00
6
3186144500
ref: 6
CAP,STARTER RELAY
3186144500
€ 6.50
7
3341027A00
ref: 7
COIL ASSEMBLY,IGNITION
3341027A00
€ 182.00
8
3342027A00
ref: 8
COIL ASSEMBLY,IGNITION
3342027A00
€ 182.00
9
0918006061
ref: 9
SPACER
0918006061
€ 2.50
10
0211206356
ref: 10
SCREW
€ 2.50
11
3351027A11
ref: 11
CAP,SPARK PLUG
€ 29.50
12
3351027A60
ref: 12
E16
CAP, SPARK PLUG
3351027A60
€ 27.50
13
3354127A22
ref: 13
SEAL,SPARK PLUG
3354127A22
€ 7.00
14
3354298000
ref: 14
SEAL,SPARK PLU
3354298000
€ 4.50
15
3354327A21
ref: 15
COVER,SPARK PLUG CAP
€ 12.50
